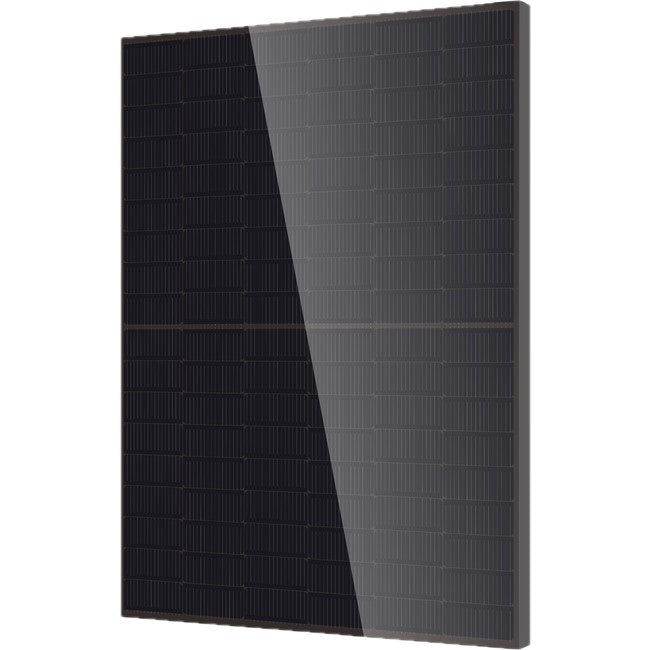

DMEGC DM465G12RT-G48HBB 465W All Black Dual Glass
Couldn't load pickup availability
The DMEGC DM465G12RT-G48HBB is an aesthetically stunning 465W All Black solar module from the Infinity series. It combines advanced N-Type Bifacial technology with a durable Dual Glass construction (2.0mm front and rear). With an efficiency of 23.3% and a sleek all-black design ("Advanced Black Technology"), it is the ideal choice for residential projects demanding both style and performance.
- N-Type Bifacial: Up to 25% extra yield from the rear side and minimal degradation.
- 25-Year Warranty: Comprehensive product warranty and 30-year linear power warranty (87.4%).
- Dual Glass Design: Superior fire safety (Class A) and weather resistance.
- Long Cables (1.1m): Equipped with 1100mm cables, perfect for landscape installation.
Aesthetic Perfection with 465W N-Type Technology (DMEGC)
DMEGC's Infinity series is renowned for high-tech manufacturing and green production. The N-Type cells ensure a low temperature coefficient of -0.29%/°C, maintaining high performance even on hot days. The dual glass structure makes the module extremely rigid, capable of withstanding heavy snow (5400Pa) and wind loads (2400Pa). Pair this module with a GoodWe or Solis inverter for a top-tier energy system.
| Feature | Value |
|---|---|
| Brand & Model | DMEGC DM465G12RT-G48HBB (Infinity) |
| Power Output | 465 Watts (Wp) |
| Technology | N-Type Bifacial Dual Glass (All Black) |
| Efficiency | 23.3% |
| Dimensions | 1762 x 1134 x 30 mm |
| Weight | 24.0 kg |
| Glass Thickness | 2.0mm (Front) / 2.0mm (Rear) |
| Warranty | 25 Years Product & 30 Years Power |
| Connectors | PV-ZH202B or MC4-EVO 2A |
What are the electrical specifications (STC)?
At Standard Test Conditions (1000W/m², 25°C), the 465W model provides:
- Max Power (Pmax): 465W
- Open Circuit Voltage (Voc): 36.46V
- Short Circuit Current (Isc): 15.88A
- Voltage at Pmax (Vmpp): 31.21V
- Current at Pmax (Impp): 14.91A
Is this module suitable for coastal areas?
Yes, DMEGC Infinity dual glass modules are certified for harsh environments. They pass IEC 61701 for salt mist corrosion and IEC 62716 for ammonia corrosion, making them excellent choices for coastal or agricultural installations.
How does the warranty work?
DMEGC offers a market-leading warranty package: 25 years product warranty and 30 years linear power warranty. Degradation is capped at 1% in the first year and 0.4% annually thereafter, guaranteeing at least 87.4% of the original power output after 30 years.
View more products in our DMEGC Collection.
