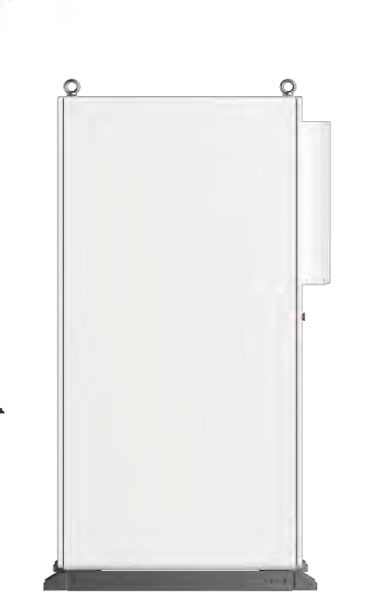

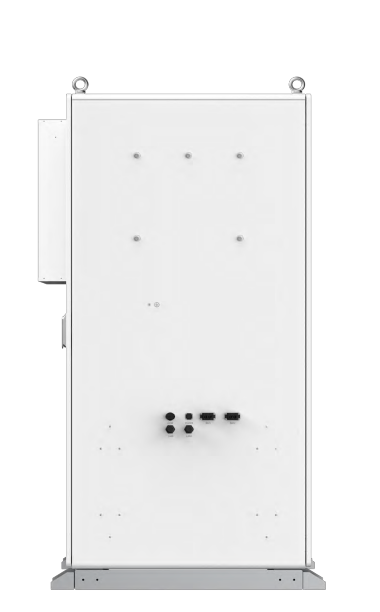

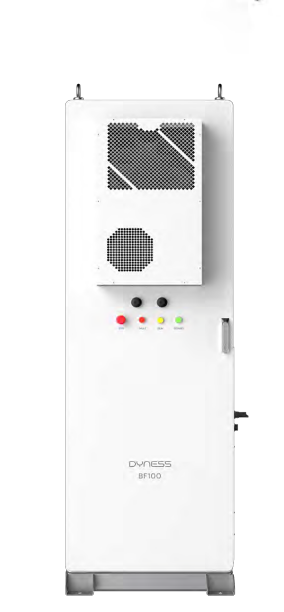

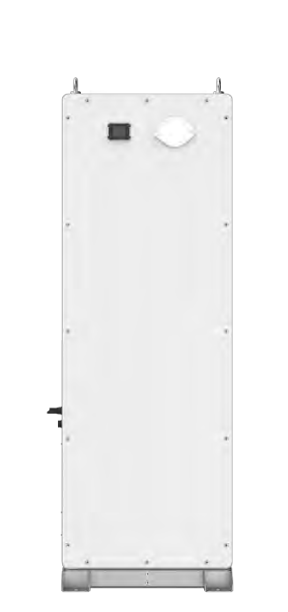

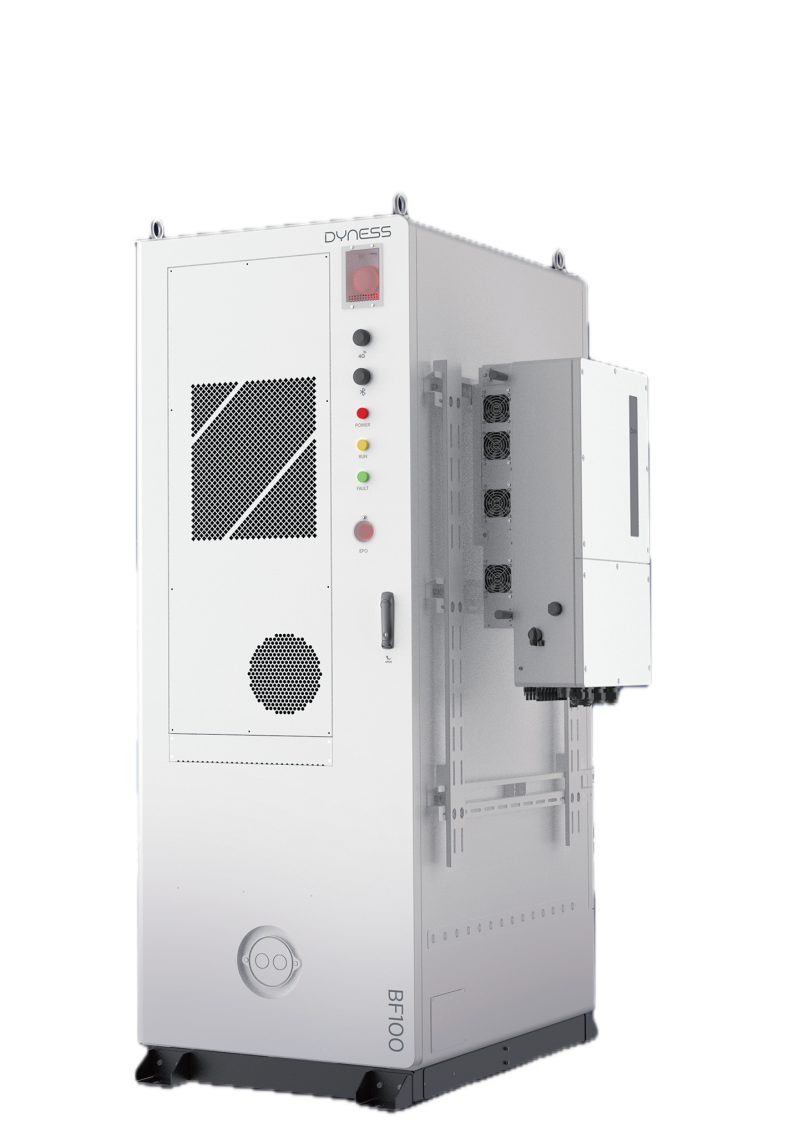

Dyness BF100-C100 100kWh LFP Outdoor Battery Storage
Couldn't load pickup availability
The Dyness BF100-C100 is a 100 kWh LiFePO4 outdoor energy storage system for commercial and industrial applications. With an IP55 protection rating, C3/C5 anti-corrosion protection, integrated EMS architecture and a three-stage fire safety system including aerosol suppression, this system delivers maximum operational reliability for demanding outdoor installations. The system supports active grid stabilisation, peak-shaving and Time-of-Use energy management.
- 100 kWh LiFePO4 energy storage system: Cobalt-free LiFePO4 cells with over 8,000 charge cycles for maximum safety and longevity.
- IP55 with C3/C5 anti-corrosion protection: Robust outdoor enclosure for continuous operation at temperatures from −20°C to 50°C.
- Three-stage fire safety: Active fire detection including aerosol suppression system and water detectors.
- Integrated EMS architecture: Optimises charge cycles based on real-time pricing for minimum LCOE.
- Modular DC expansion: Flexible scalability for optimal configurations in complex commercial projects.
Suitable for
- Commercial and industrial properties with high energy demand
- Peak-shaving and Time-of-Use energy arbitrage
- Active grid stabilisation and grid congestion management
- Outdoor installations requiring C3/C5 anti-corrosion protection
- Projects requiring operational continuity and fire safety compliance with local regulations
Dyness BF100-C100 — specifications and benefits
- Intelligent energy management: The integrated EMS architecture optimises charge cycles based on real-time pricing and grid load — peak loads are effectively capped and self-consumption is maximised.
- Dynamic pricing and energy arbitrage: Businesses can significantly reduce LCOE through automated energy arbitrage leveraging Time-of-Use pricing models.
- Maximum fire safety: Three-stage fire detection with aerosol suppression and water detectors — compliant with local fire safety regulations for commercial installations.
- Wide inverter compatibility: Seamless integration with compatible commercial inverters via CAN/RS485 — including Solis and Goodwe.
| Technical attribute | Value |
|---|---|
| Manufacturer & model | Dyness BF100-C100 |
| Nominal energy | 100 kWh (95% DoD) |
| Voltage range | 324.8V – 403.2V DC |
| Rated current | 140A |
| Round-trip efficiency | 94.00% |
| Cycle life | > 8,000 cycles |
| Protection rating | IP55 / C3/C5 anti-corrosion |
| Operating temperature | −20°C to 50°C |
| Max. installation altitude | 2,000 m (no derating), max. 3,000 m |
| Noise level | ≤ 65 dB |
| Safety standards | CE, UN 38.3, IEC 62619 |
| Dimensions (L × W × H) | 1200 × 725 × 2260 mm |
| Weight | 1,300 ± 100 kg |
Note: The official datasheet is always leading for the correct technical specifications.
What is included in the Dyness BF100-C100 package?
| Component | Quantity |
|---|---|
| Dyness BF100 outdoor cabinet (air-cooled) | 1× |
| HV51280F LFP battery pack (280Ah) | 7× |
| BDU (integrated BMS/EMS) | 1× |
| Fire safety kit (aerosol & detectors) | 1× |
| 4G/GPS antenna kit | 1× |
| Mounting and connection hardware | 1× |
Is the Dyness BF100-C100 compatible with off-grid use?
Yes. The BF100-C100 supports off-grid mode, providing stable voltage for critical loads. Compatibility with off-grid operation depends on the connected inverter model and system configuration. Please refer to the datasheet and consult a certified installer to verify off-grid suitability for your specific application.
What are the noise levels during operation of the BF100-C100?
The operating noise level of the BF100-C100 is ≤ 65 dB, suitable for commercial environments. The air-cooled design ensures effective thermal management while maintaining low noise levels during normal operation. For noise-sensitive installations, please verify local environmental regulations regarding permissible noise levels.
Which inverters are compatible with the Dyness BF100-C100?
The Dyness BF100-C100 is designed for integration with compatible commercial and industrial inverters via CAN or RS485 — including Solis and Goodwe. Compatibility depends on the inverter model, firmware version and system configuration. Always refer to the most current compatibility list in the datasheet and consult a certified installer before installation.
View the complete collection on our Dyness energy storage systems page.
