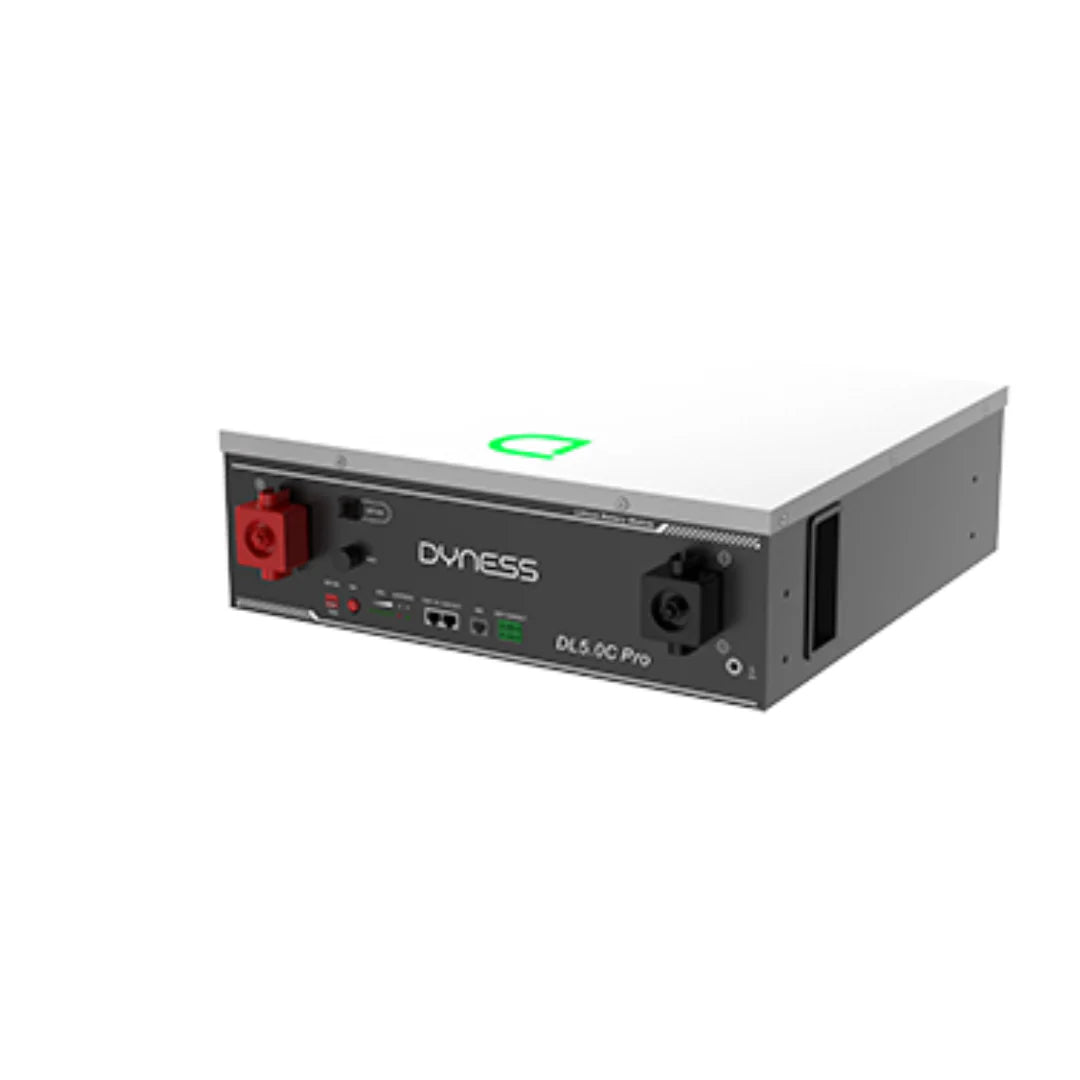

• Dyness DL5.0C 5.12kWh

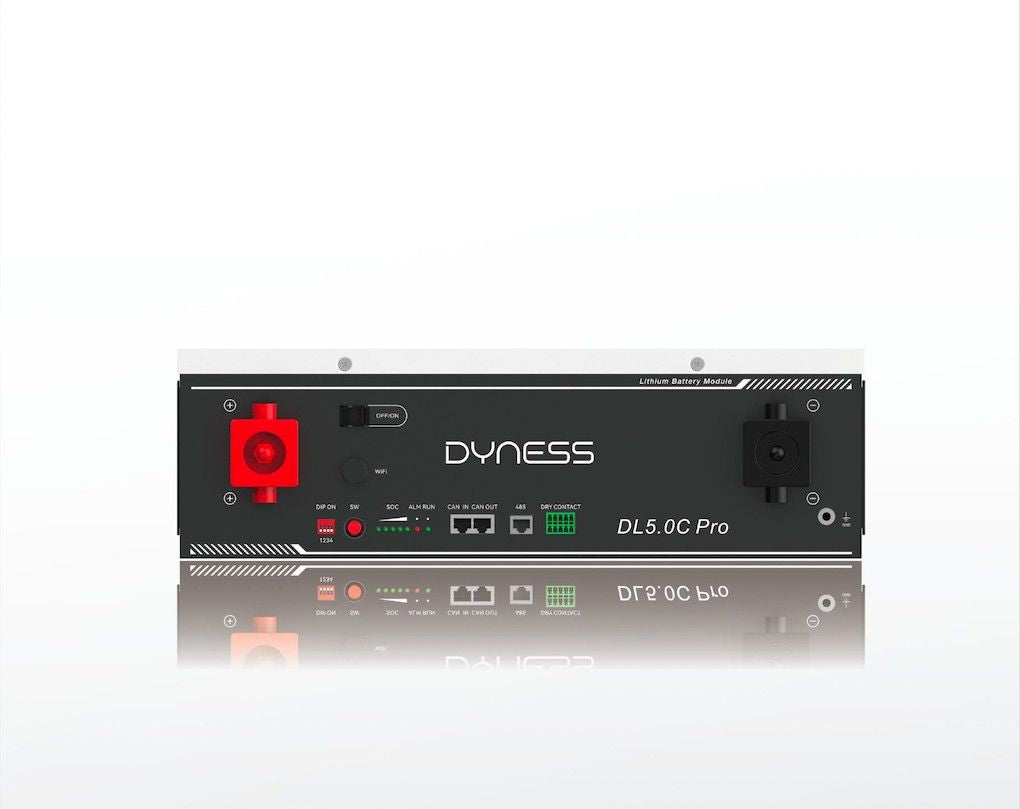

  • Dyness_DL5.0C_Pro_top

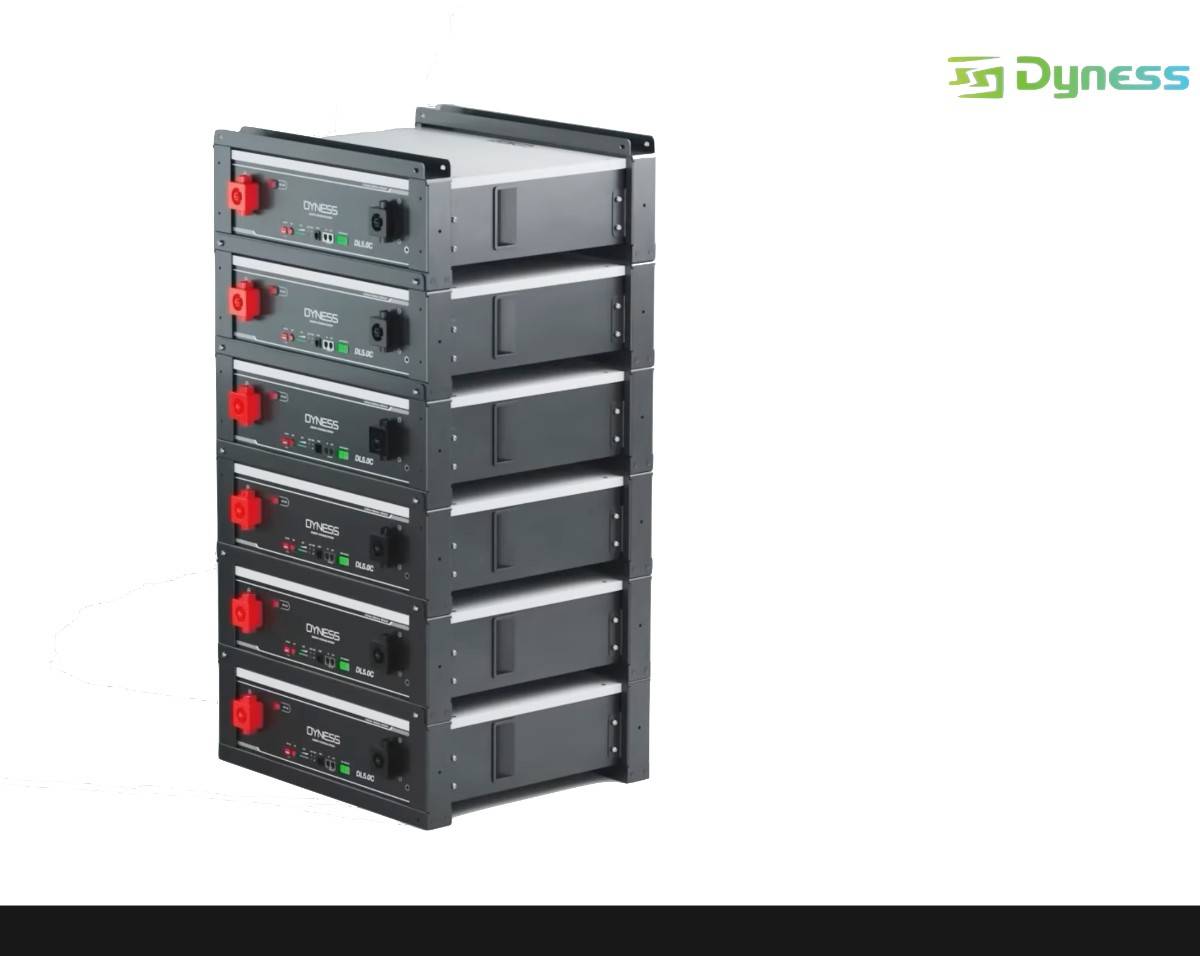

  • Installatie van Dyness DL5.0C batterijen met gestapelde montagebeugels
1 3

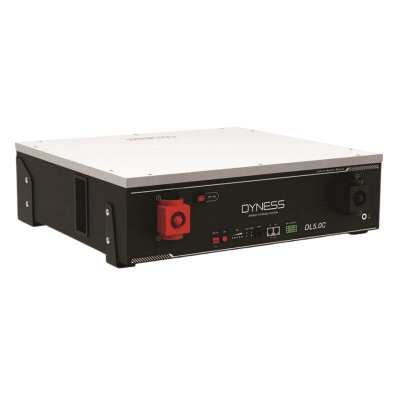

Dyness DL5.0C PRO 5.12kWh Home Battery

€889,35 incl. VAT
Shipping calculated at checkout.

The Dyness DL5.0C Pro (5.12kWh) redefines safety and efficiency for residential energy storage. This advanced LFP module features an integrated automatic heating system and a built-in aerosol fire extinguisher. With its compact form factor and 1C discharge capability (peak load), this battery is ideal for both off-grid and hybrid applications where reliability is paramount.

  • Integrated Safety: Equipped as standard with automatic heating (-20°C to 55°C) and smart aerosol fire suppression system.
  • High Performance: 1C discharge (Max 100A continuous / 120A peak) to power heavy household loads.
  • Smart Management: Fully integrated WiFi module for real-time monitoring and OTA updates via the app.
  • Maximum Scalability: Modular expansion up to 50 units in parallel (256kWh).

Technical Specifications

  • Nominal Energy: 5.12kWh (100Ah)
  • Nominal Voltage: 51.2V
  • Dimensions: 488 x 515 x 150 mm
  • Weight: 46 kg
  • Protection Class: IP20
  • Certifications: UN38.3, CE-EMC, IEC62619, CE-RED
  • Communication: CAN / RS485
  • DOD: 95%
Installation Advice: For correct communication with inverters such as Victron, SMA, or Solis, it is crucial to set the DIP switches correctly according to the manual (page 10). The WiFi module is fully integrated into the housing on the Pro version.
What is included in the package?

The Dyness DL5.0C Pro delivery is very complete and contains:

  • 1x Battery Module (51.2V/100Ah)
  • 1x Wall Bracket
  • 1x Power Cable Positive (Red, 4AWG, 1500mm)
  • 1x Power Cable Negative (Black, 4AWG, 1500mm)
  • 1x Communication Cable Parallel (Black, 2000mm)
  • 1x Communication Cable to Inverter (Black, 2000mm)
  • 1x Grounding Wire (500mm, 4mm²)
  • 4x Screws M8
  • 4x Expansion Bolts M6x80
  • Documentation (Manual, Warranty Card, Packing List)
Which inverters are compatible?
The DL5.0C Pro is compatible with leading brands including: SMA, Victron Energy, Solis, GoodWe, Growatt, Deye, Luxpower, Schneider, Ingeteam, and SAJ. View the full compatibility list for details.
What is the difference with the standard DL5.0C?
The Pro version offers significant upgrades over the standard DL5.0C:
  • Integrated WiFi: No external dongle needed anymore.
  • Safety: Added fire suppression system (aerosol).
  • Display: Equipped with LED indicators for SOC and status.
  • Weight: Lighter design (46kg vs 49.9kg).
  • Performance: Higher peak load (120A for 10 mins vs 110A for 10 secs) and deeper discharge (95% DOD vs 90%).
Installation and Safety
The battery has an IP20 protection rating and is designed for indoor installation (wall mount or floor standing). Thanks to the built-in heating function, the battery can also charge and operate in colder environments (-20°C to 55°C). The system complies with the strictest safety standards such as IEC62619 and UN38.3.
