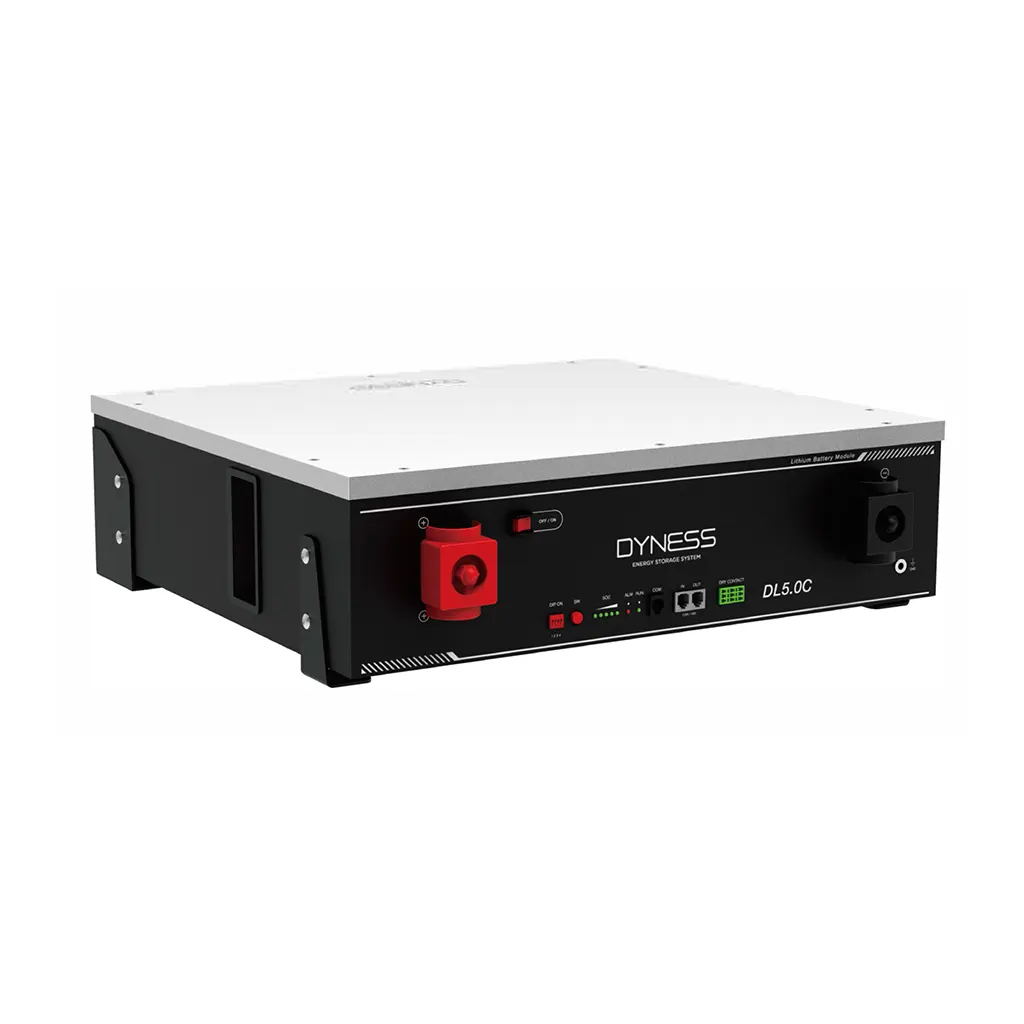

Dyness DL5.0C 5.12 kWh Home Battery – Low Voltage
Couldn't load pickup availability
The Dyness DL5.0C is an economically designed 5.12 kWh LiFePO4 battery module, tailored for residential and small commercial low-voltage applications. Featuring a nominal capacity of 100Ah and a 90% depth of discharge, it ensures dependable energy storage. With support for app-based monitoring and parallel connection of up to 50 modules, the system scales to 256kWh to meet the diverse energy requirements of modern sustainable projects.
- 5.12 kWh Energy: Custom-fit storage capacity for residential and small commercial PV applications.
- 1C Max Discharge Rate: Supports high power demands with a maximum discharge current of 100A.

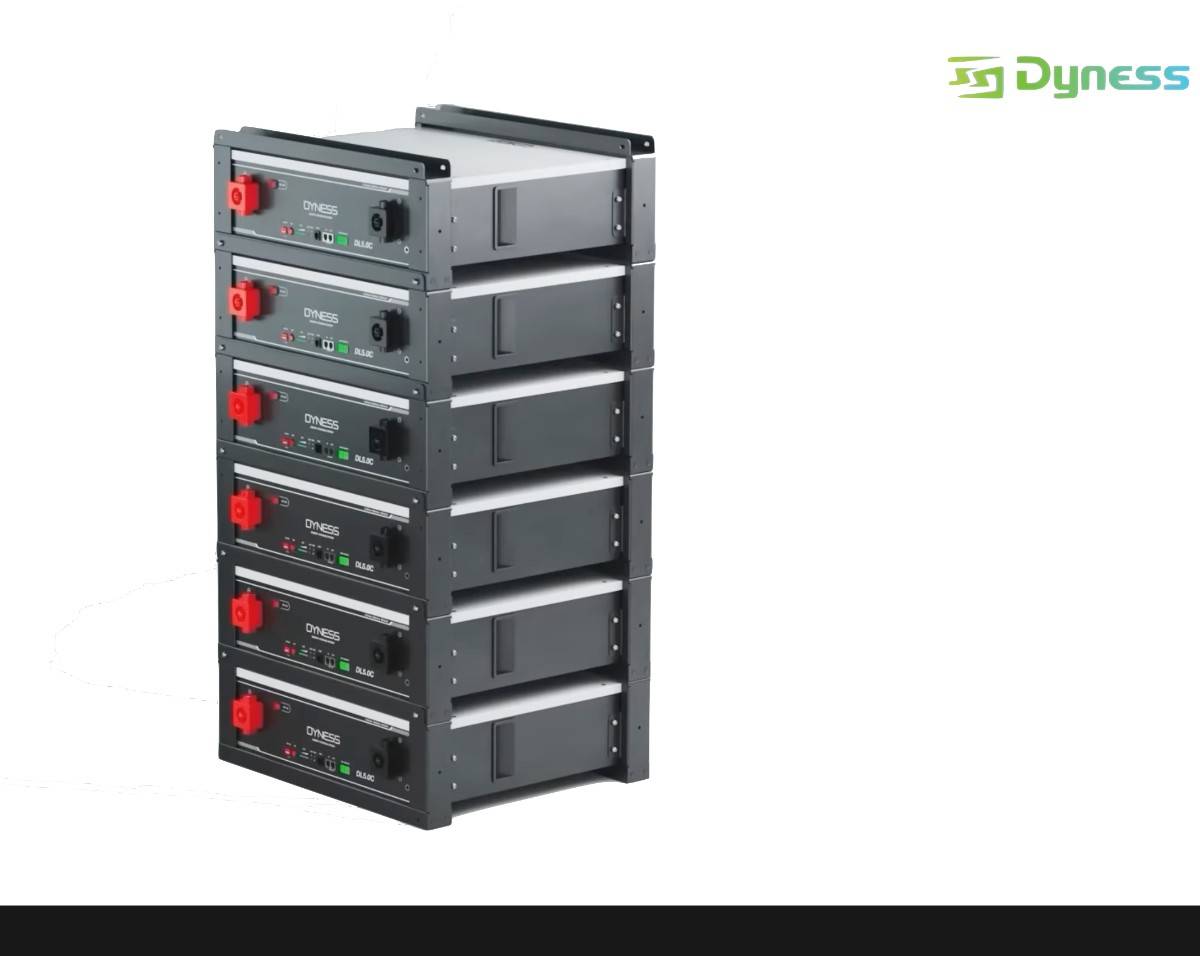

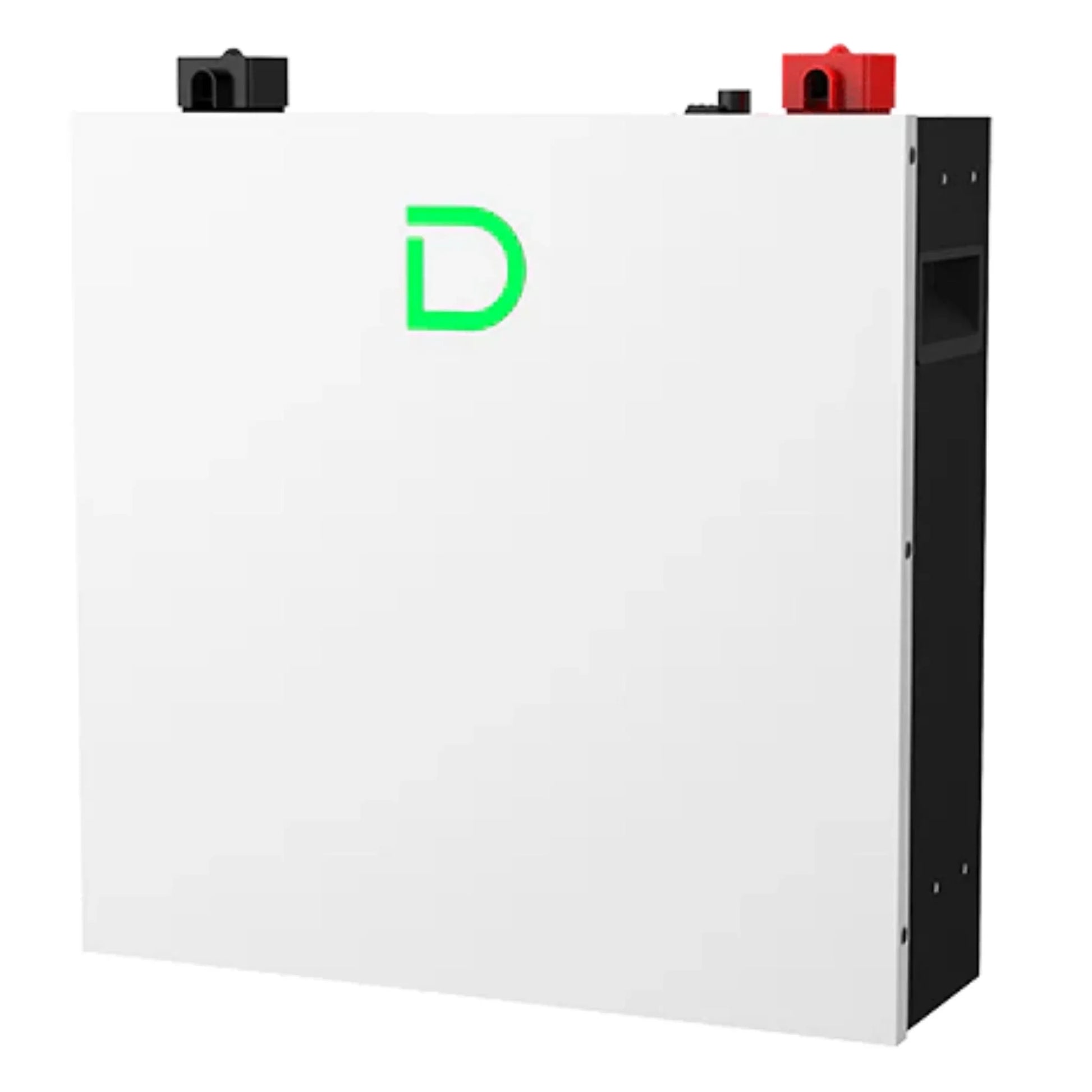

- Flexible Mounting: Suitable for wall-mounted, floor-standing, or stacked configurations for optimal space efficiency.
- Scalable up to 256kWh: Easily expand capacity by connecting up to 50 modules in parallel.
- CAN/RS485 Communication: Seamless integration and compatibility with leading inverters on the market.
Why choose the Dyness DL5.0C?
The DL5.0C combines high-safety LFP technology with cell-level monitoring and balancing. Weighing 54 kg with dimensions of 558*545*150 mm, it offers various mounting methods including wall-mounted and stacked configurations. The battery facilitates charging in low ambient temperatures via an optional heating function. Its wide compatibility with leading hybrid inverters makes the DL5.0C a central component for high-performance energy management. Explore more in the Dyness storage collection, compliant with IEC62619 and UKCA standards for professional energy solutions.
| Property | Value |
|---|---|
| Brand & Model | Dyness DL5.0C |
| Battery Type | LiFePO4 |
| Nominal Energy | 5.12 kWh |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8~57.6V |
| Depth of Discharge (DoD) | 90% |
| Dimensions | 558*545*150 mm |
| Net Weight | 54 kg |
| Communication | CAN/RS485/RS232 |
What is included with the Dyness DL5.0C?
The scope of delivery for this package includes the following items:
- 1 x Dyness DL5.0C battery module- 1 x Power cable (Orange/Positive)
- 1 x Power cable (Black/Negative)
- 1 x Communication cable
- 1 x Grounding cable
- 1 x User manual
Is the DL5.0C compatible with my inverter?
This battery module features wide compatibility with industry-leading hybrid inverters.
Always verify specific communication protocols (CAN/RS485) and voltage ranges in the technical manual or consult your installer for system verification.How does this system support Time-of-Use strategies?
The DL5.0C allows for storing energy during low-cost periods to be used when utility rates are higher.
This capability, combined with a 90% depth of discharge, enables efficient energy shifting and cost optimization for residential and commercial users.Explore more products in the Dyness storage collection.
