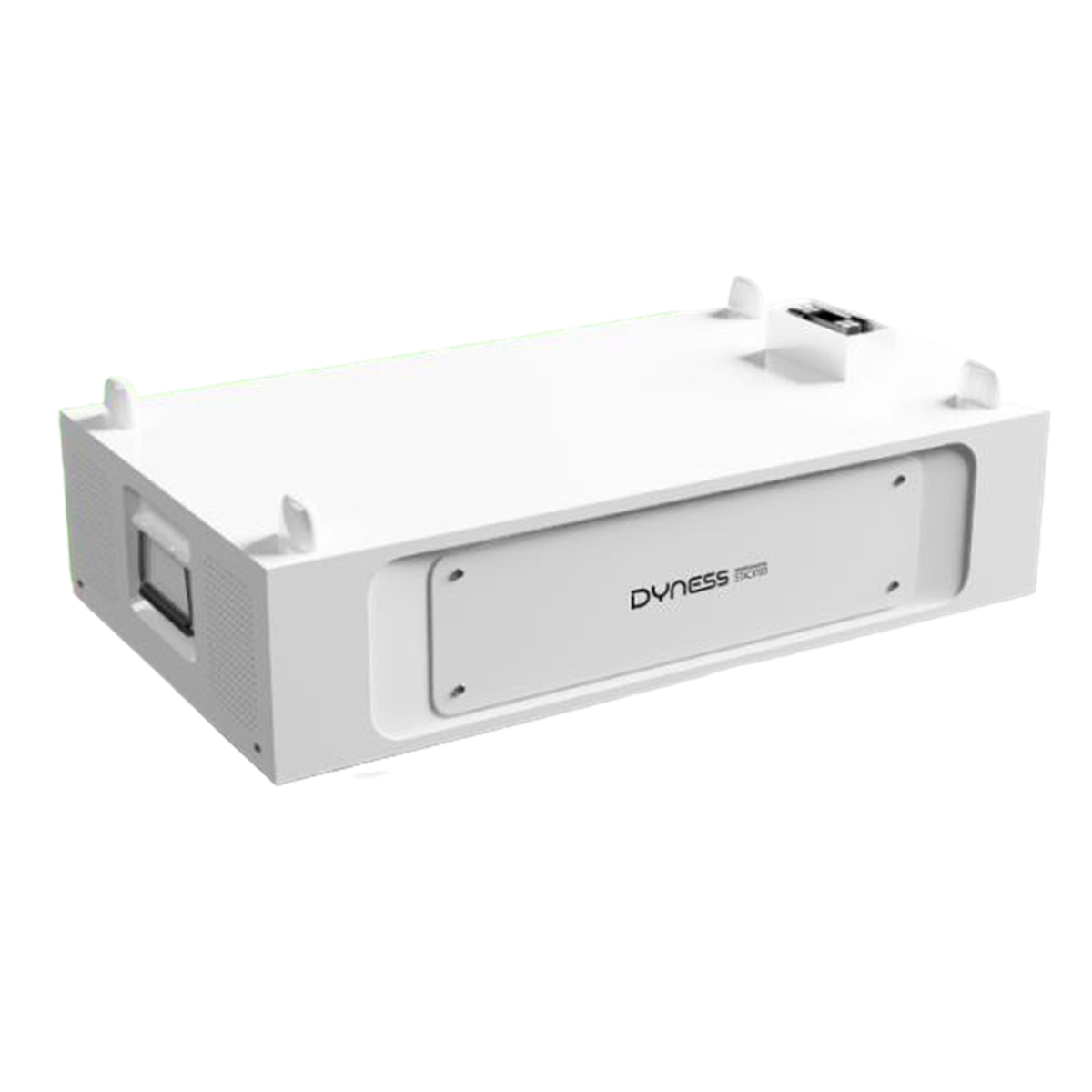

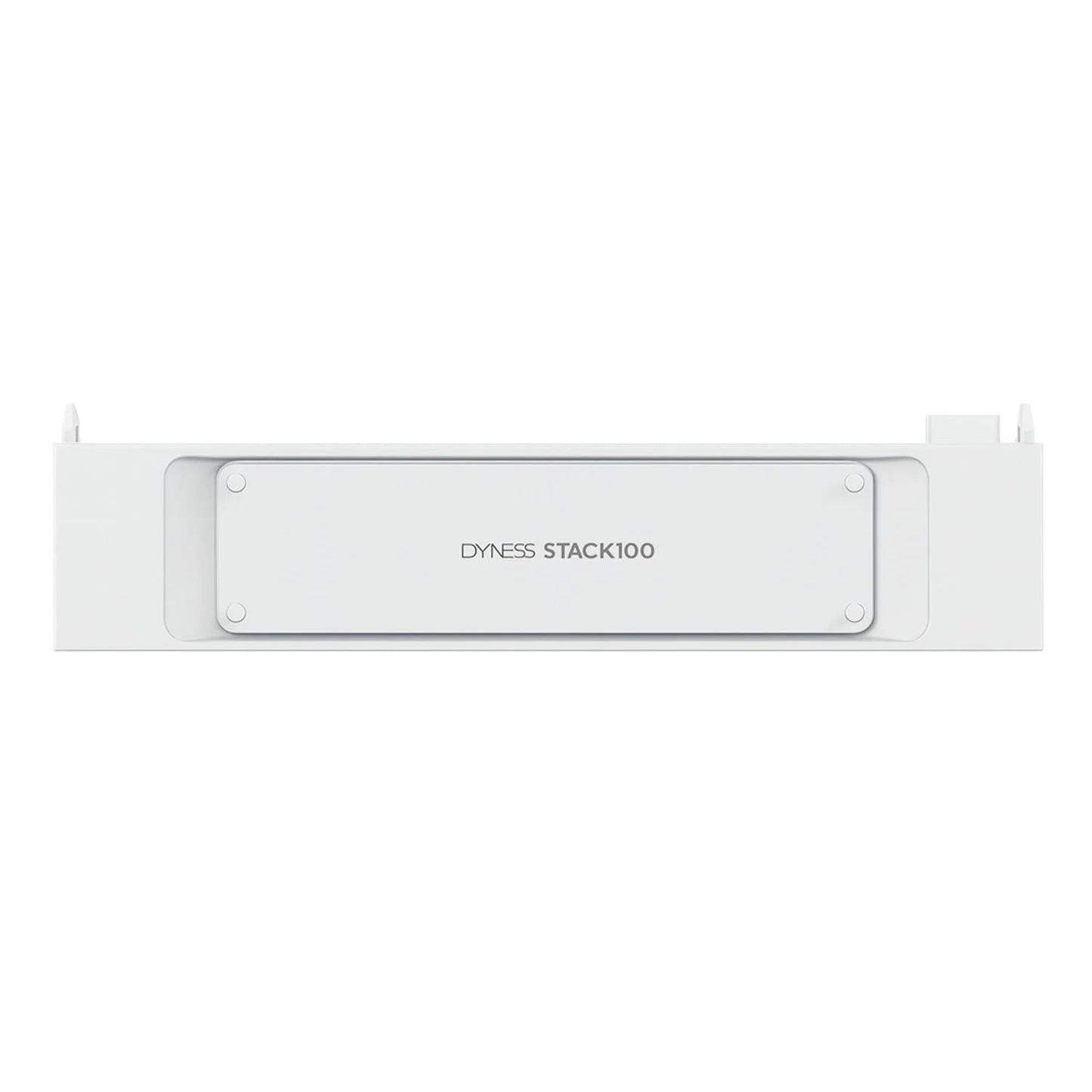

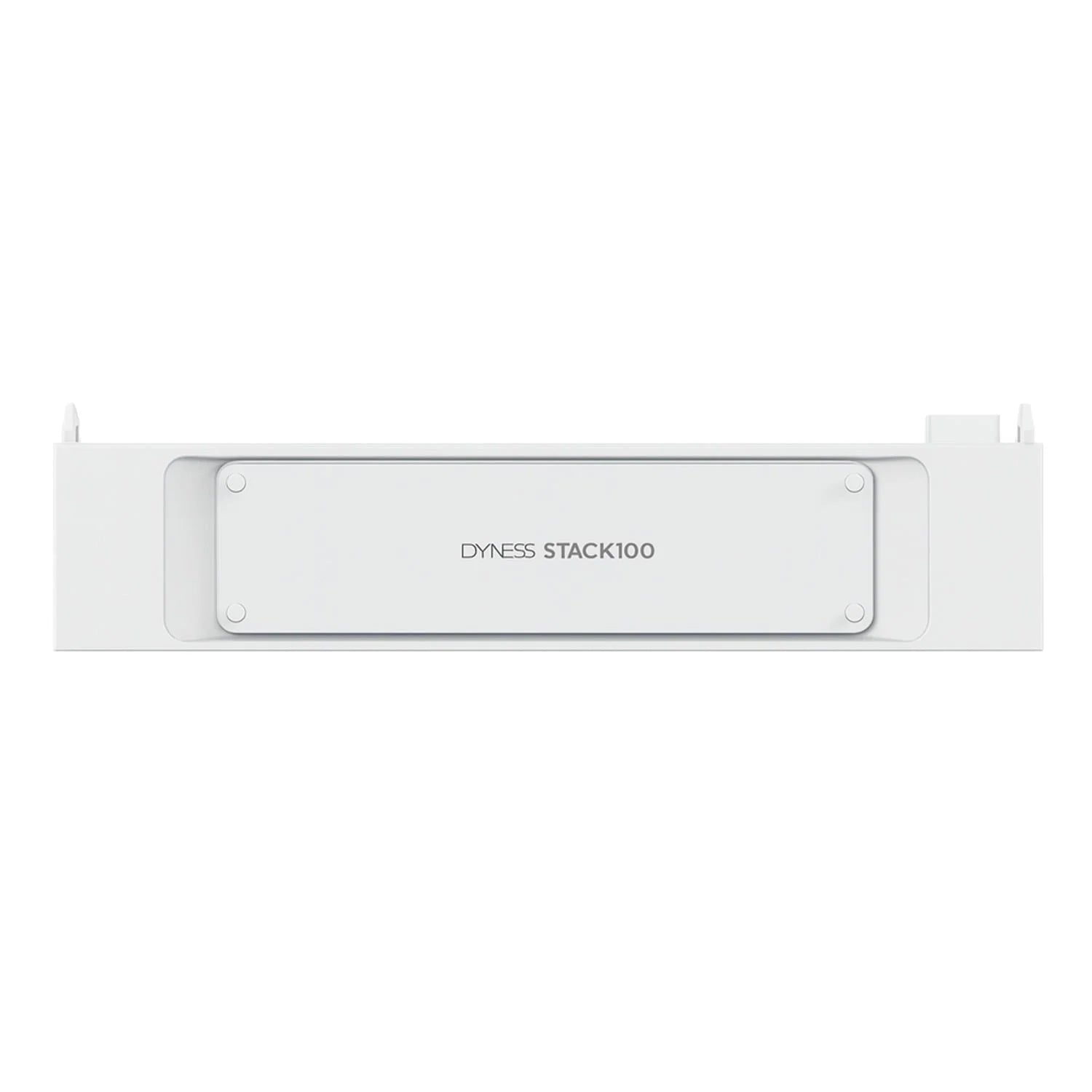

Dyness Stack 100 PRO HV Battery Module 5.12 kWh (1C)

€1.003,09 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–7 business days (NL/BE)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Dyness Stack 100 PRO HV Battery Module (model S51100 pro) is a premium LiFePO4 battery module with a nominal energy of 5.12 kWh. Part of the modular STACK100 PRO high-voltage system, this module operates at a nominal voltage of 51.2V. By connecting 3 to 15 modules in series, a system voltage range of 134.4V to 864V is achieved. The module requires a Dyness Stack 100 PRO BDU & Base controller for operation.

  • 1C Power Delivery: Supports 100A charge and discharge currents for rapid system response and performance.
  • IP66 Rated Protection: Industrial-grade enclosure ensuring maximum resistance against dust and water for all environments.
  • Modular Scalability: Easily expand your cluster up to 15 modules for a total capacity of 76.8 kWh.
  • Advanced Safety: Features an integrated aerosol fire extinguisher and high-precision temperature monitoring.

Technical Insight for Installers

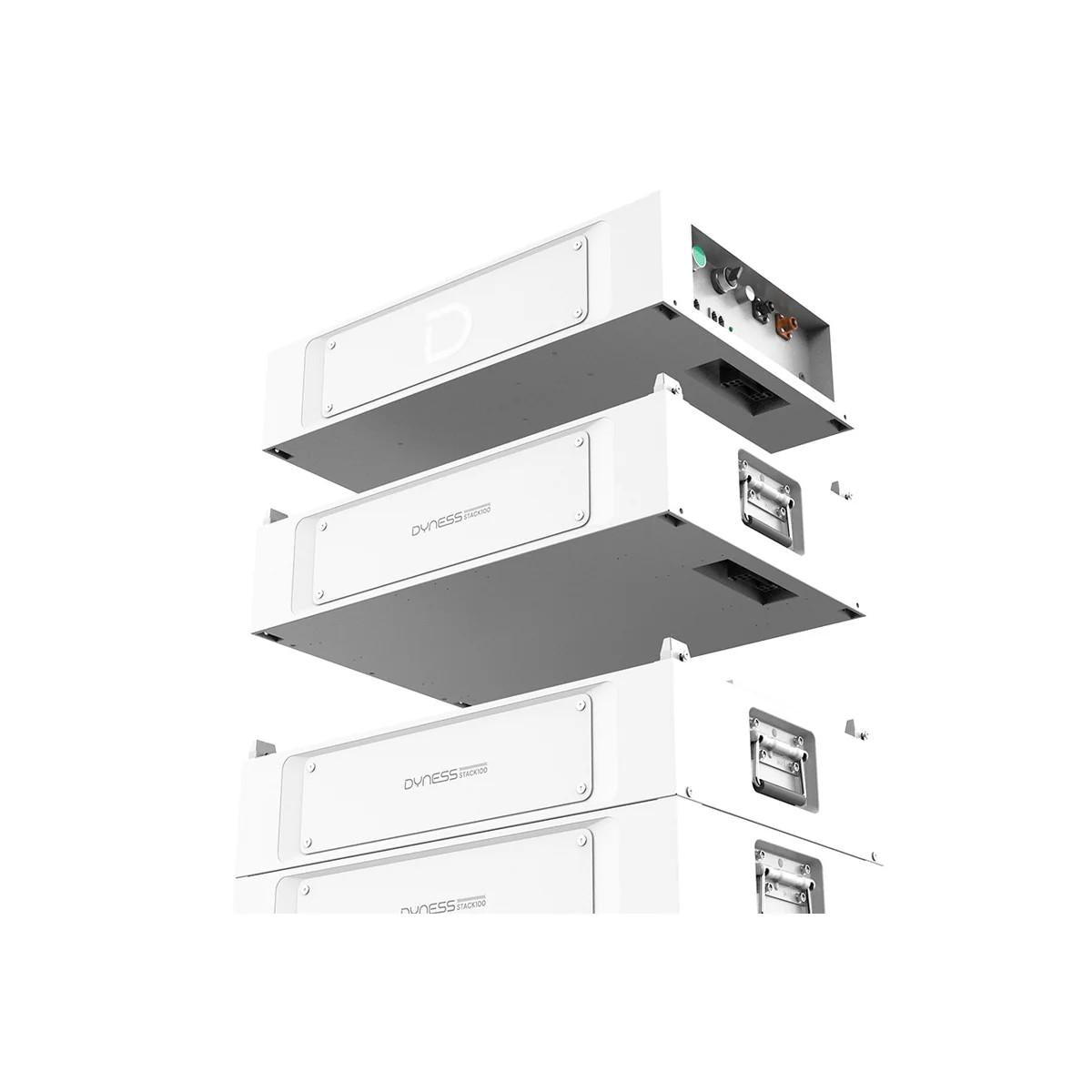

The Stack 100 PRO module utilizes cable-free stacking technology, significantly simplifying onsite installation and increasing system reliability. Each module weighs 55 kg with dimensions of 657 × 460 × 169 mm. For systems exceeding 12 modules, a dual-column configuration is recommended using Kit C. The module relies on natural convection cooling for silent operation and reduced maintenance requirements. Explore our full range in the Dyness storage collection for elite energy solutions.

Note: This product is a standalone battery module (Package B). The Dyness Stack 100 PRO BDU & Base (Package A) is mandatory and sold separately. A minimum of 3 modules is required for a functional system.
Property Value
Brand & Model Dyness S51100 pro
Battery Type LiFePO4 (LFP)
Nominal Energy 5.12 kWh
Usable Energy 4.864 kWh
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Charge/Discharge Current 100A (1C)
Depth of Discharge (DoD) 95%
Module Weight 55 kg
Dimensions (W×D×H) 657 × 460 × 169 mm
Protection Level IP66
Warranty 10 years
Download Datasheet View Manual View Compatibility
What is included in the Dyness Stack 100 PRO HV Battery Module package?
Component Quantity
S51100 pro Battery Module 1
Hex screws M5×30 4
Packing list 1
Is this module compatible with my inverter?

The Stack 100 PRO series is compatible with leading hybrid inverters including Solis, GoodWe, and Deye. Always ensure your inverter supports the system voltage generated by your specific module count.

Time-of-Use

With its high 1C rate and 95% usable capacity, this module is ideal for Time-of-Use strategies. It allows for efficient energy storage during off-peak hours to offset high-cost energy consumption during peaks.

Explore more products in the Dyness storage collection.
