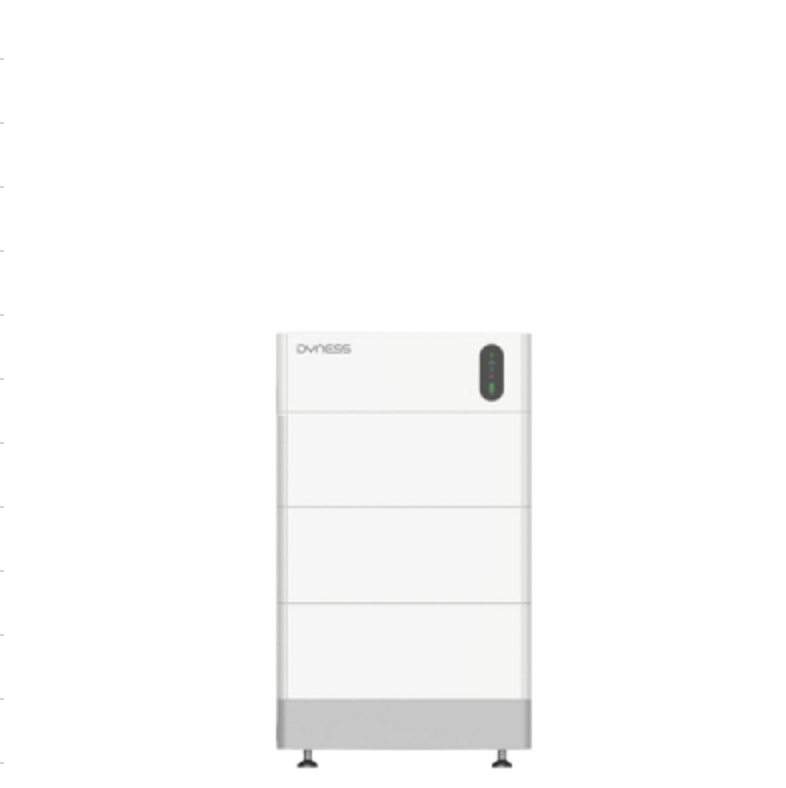

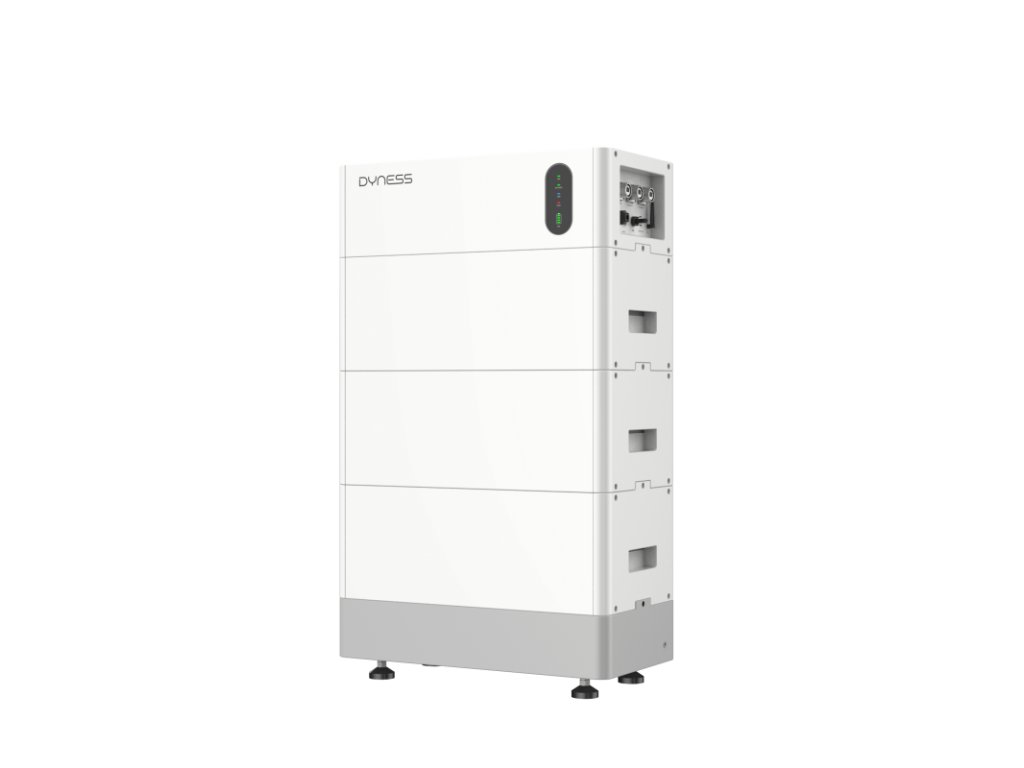

Dyness Tower Pro TP11 – 11.52 kWh HV Home Battery

€2.850,76 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–7 business days (NL/BE)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Dyness Tower Pro TP11 represents the optimal mid-range configuration within professional high-voltage residential energy storage. With a total capacity of 11.52 kWh and a nominal system voltage of 288V DC, this configuration delivers superior efficiency through reduced current levels and minimized conversion losses.

The TP11 consists of 3x HV9640 battery modules (3.84 kWh each) combined with an intelligent Battery Distribution Unit (BDU). Together they form the Dyness Ultra Safe Tower Pro architecture, including an integrated aerosol fire suppression system with automatic activation within ≤5 seconds of incident detection.

  • 11.52 kWh High Voltage: 288V architecture for maximum system efficiency.
  • IP55 Protection: Dust-protected and resistant to water jets (datasheet compliant).
  • Self-Heating Modules: Integrated cell heating in every HV9640 unit.
  • Ultra Safe Design: Automatic aerosol fire suppression (<5 sec activation).
  • 1C Discharge Capability: High power output for simultaneous heavy loads.

Advanced LiFePO4 Energy Storage with Intelligent BMS

  • Thermally Stable Chemistry: Premium LiFePO4 cells rated for >6000 cycles.
  • Active BMS Management: Continuous monitoring of voltage, temperature and cell balancing.
  • System-Level Fire Protection: Aerosol suppression protects the complete tower configuration.
  • Modular Scalability: Expandable up to 23.04 kWh per tower (max. 6 modules).
Important: Each HV9640 module includes integrated self-heating technology to ensure safe operation in low-temperature environments. The aerosol fire suppression system is part of the Tower Pro system architecture and protects the entire tower assembly. Installation must be performed by certified professionals in accordance with EU electrical standards.

Technical Specifications

SpecificationValue
ModelTower Pro TP11
Total Capacity11.52 kWh
Configuration3x HV9640 Module + 1x BDU
Nominal Voltage288V DC
Battery TechnologyLiFePO4 with Self-Heating
Protection RatingIP55
Dimensions587 × 310 × 1009 mm
Weight150 kg
CertificationsCE, UN38.3, IEC62619
Datasheet Download Manual Download
What is included in the Dyness Tower Pro TP11 package?
The package includes 1x BDU unit with inverter communication cable, DC cables, connectors, grounding cable, mounting hardware and documentation. Additionally, you receive 3x HV9640 battery modules (3.84 kWh each) including mounting screws.
Does the TP11 include an integrated fire suppression system?
Yes. The Tower Pro series features an intelligent aerosol fire suppression system that automatically activates within five seconds of incident detection and protects the complete tower configuration.
Do the modules include a self-heating function?
Yes. Each HV9640 module includes integrated self-heating technology to ensure stable charging and discharging performance in low ambient temperatures.
How can the storage capacity be expanded?
The TP11 can be expanded up to 6 HV9640 modules per tower (23.04 kWh). For larger systems, multiple towers can be connected in parallel using a compatible Combiner Box configuration.
