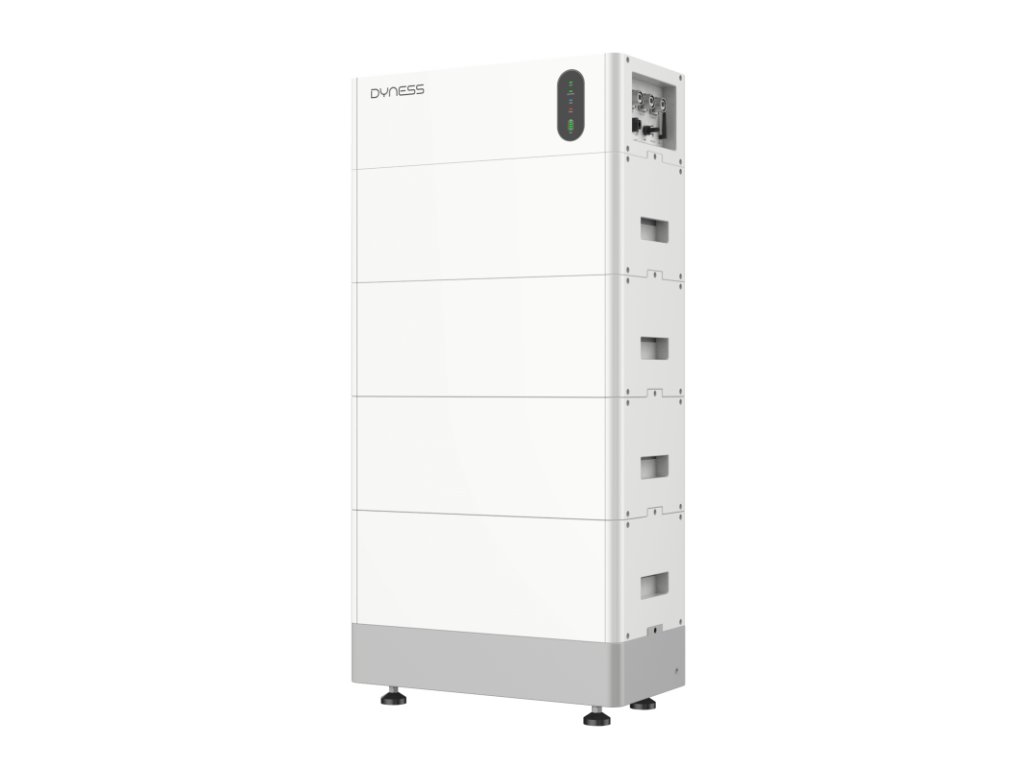

Dyness Tower Pro TP15 – 15.36 kWh HV Home Battery

€3.473,91 incl. VAT
Shipping calculated at checkout.

With 15.36 kWh storage capacity, the Dyness Tower Pro TP15 is designed for households with heat pumps or electric vehicles. The 384V system ensures minimal energy losses and fast charging times. The stackable construction of four modules ensures a compact footprint, while advanced safety features (including extinguishing system) ensure worry-free use.

  • Large capacity of 15.36 kWh
  • 384V System voltage
  • Automatic module configuration
  • IP54 Weatherproof

High-quality storage for high consumers

  • Smart Management: The modules recognize each other automatically, making configuration unnecessary and speeding up installation.
  • Maximum Protection: Besides the BMS, the Tower Pro features a self-activating fire extinguishing system that reacts within 5 seconds in emergencies.
  • Flexibly Expandable: Start with 15 kWh and scale up later to 23 kWh in the same tower, or connect multiple towers in parallel for commercial applications.

Technical Specifications

  • Capacity: 15.36 kWh
  • Configuration: 4x HV9640 Module + 1x BDU
  • Nominal Voltage: 384V
  • Dimensions: 587 x 310 x 1230 mm
  • Weight: 190.5 kg
  • Certifications: CE, UN38.3, IEC62619
What is included in the package?

The TP15 delivery includes:
1x BDU Box: Control unit, manuals, cables (comm/power), connectors, and mounting material.
4x Battery Box: A total of 4 pieces HV9640 modules (3.84 kWh each) including fixing screws.

Which inverters is this system compatible with?

Consult the official compatibility list for an overview of suitable hybrid HV inverters.

How can I expand the capacity?

You can add 2 extra modules to this tower to reach the maximum capacity of 23.04 kWh.

Is this system safe?

Yes, the combination of LiFePO4, IP54 rating, and the integrated extinguishing system makes this one of the safest home batteries on the market.
