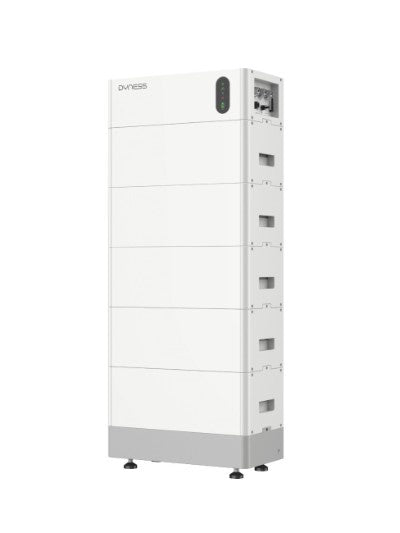

Dyness Tower Pro TP19 – 19.20 kWh HV Home Battery

€4.428,60 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–7 business days (NL/BE)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Dyness Tower Pro TP19 is engineered for large residential properties and high-demand energy applications. With a total storage capacity of 19.20 kWh and a nominal system voltage of 480V DC, this high-voltage architecture delivers exceptional efficiency, minimal conversion losses and superior power stability.

The TP19 consists of 5x HV9640 battery modules (3.84 kWh each) combined with an intelligent Battery Distribution Unit (BDU). Together they form the Dyness Ultra Safe Tower Pro system architecture, including an integrated aerosol fire suppression system that activates automatically within ≤5 seconds upon incident detection.

  • 19.20 kWh High Voltage: 480V for superior system efficiency.
  • IP55 Protection: Dust-tight and water-jet resistant enclosure.
  • Self-Heating Modules: Integrated cell heating in every HV9640 unit.
  • Ultra Safe Design: Automatic aerosol fire suppression (<5 sec).
  • 1C Discharge Capability: High output for simultaneous heavy loads.

Maximum Energy Security for High-Demand Homes

  • Premium LiFePO4 Chemistry: Thermally stable lithium iron phosphate cells with >6000 life cycles.
  • Active BMS Monitoring: Continuous supervision of voltage, temperature and cell balancing for maximum operational safety.
  • System-Level Fire Protection: The integrated aerosol suppression safeguards the complete tower configuration.
  • Fully Scalable: Expandable to 23.04 kWh per tower or connect multiple towers in parallel for large-scale installations.
Important: Each HV9640 module includes integrated self-heating technology for stable low-temperature operation. The aerosol fire suppression system is part of the Tower Pro system architecture and protects the entire tower assembly. Installation must be performed by certified professionals in accordance with EU electrical standards.

Technical Specifications

SpecificationValue
ModelTower Pro TP19
Total Capacity19.20 kWh
Configuration5x HV9640 Module + 1x BDU
Nominal Voltage480V DC
Battery TechnologyLiFePO4 with Self-Heating
Discharge Capability1C Discharge
Protection RatingIP55
Dimensions587 × 310 × 1451 mm
Weight231 kg
CertificationsCE, UN38.3, IEC62619
Datasheet Download Manual Download
What is included with the Dyness Tower Pro TP19?
The package includes 1x BDU unit with inverter communication cable, DC power cables, connectors, grounding cable, mounting hardware and documentation. Additionally, you receive 5x HV9640 battery modules (3.84 kWh each) including mounting screws.
Does the TP19 include integrated fire suppression?
Yes. The Tower Pro series features an intelligent aerosol fire suppression system that activates automatically within five seconds, protecting the entire tower configuration at system level.
Do the modules include self-heating?
Yes. Every HV9640 module includes integrated cell heating technology, ensuring stable and safe performance in low-temperature environments.
How can the storage capacity be expanded?
The TP19 can be expanded by adding one additional HV9640 module to reach 23.04 kWh per tower. For larger installations, multiple towers can be connected in parallel using an approved combiner configuration.
