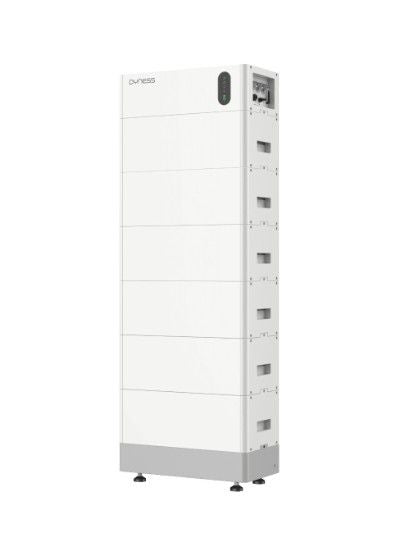

Dyness Tower Pro TP23 – 23.04 kWh HV Home Battery
Couldn't load pickup availability
The Dyness Tower Pro TP23 is the flagship of the Tower Pro series, engineered for maximum energy independence in high-demand residential and commercial environments. With a total usable capacity of 23.04 kWh and a nominal voltage of 576V DC, this high-voltage system delivers superior efficiency, reduced current losses, and exceptional power stability.
The TP23 consists of 6x HV9640 battery modules (3.84 kWh each) combined with one intelligent Battery Distribution Unit (BDU). Together they form Dyness’ Ultra Safe system architecture, featuring integrated aerosol fire suppression with automatic activation within ≤5 seconds.
- 23.04 kWh High Voltage: 576V architecture for maximum efficiency.
- IP55 Protection: Dust-tight and protected against water jets.
- Self-Heating Modules: Integrated heating in every HV9640 unit.
- Ultra Safe Design: Automatic aerosol fire suppression (<5 sec).
- 1C Discharge Capability: Full household load support.
Ultimate Energy Autonomy for Large Properties
- Premium LiFePO4 Cells: Thermally stable lithium iron phosphate chemistry with >6000 cycles.
- Advanced BMS Control: Continuous monitoring of voltage, temperature, balancing and system integrity.
- System-Level Fire Protection: Integrated aerosol suppression safeguards the entire tower configuration.
- Extreme Scalability: Up to 12 towers can be connected in parallel, enabling system capacities exceeding 276 kWh.
Technical Specifications
| Specification | Value |
|---|---|
| Model | Tower Pro TP23 |
| Total Capacity | 23.04 kWh |
| Configuration | 6x HV9640 Module + 1x BDU |
| Nominal Voltage | 576V DC |
| Battery Chemistry | LiFePO4 with Self-Heating |
| Discharge Rate | 1C |
| Protection Rating | IP55 |
| Dimensions | 587 × 310 × 1672 mm |
| Weight | 271.5 kg |
| Certifications | CE, UN38.3, IEC62619 |
What is included in the Dyness Tower Pro TP23 package?
Does the TP23 include an integrated fire suppression system?
Do the modules have a self-heating function?
How can the storage capacity be expanded?
Explore the complete range of Dyness Energy Storage Systems .
