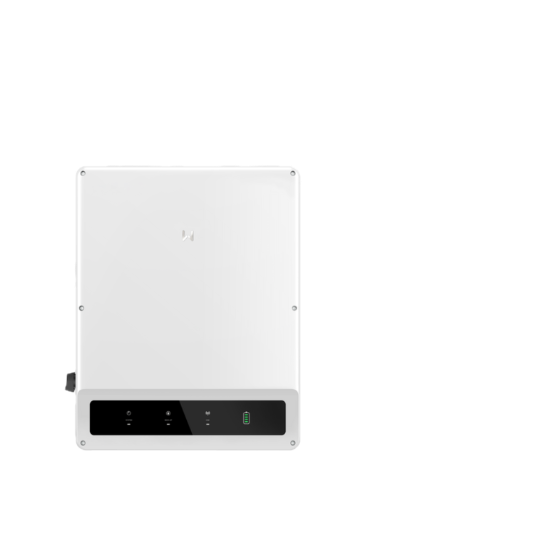

GoodWe GW20K-ET Hybrid

The GoodWe GW20K-ET is a three-phase hybrid inverter for HV batteries. Combining reliability and flexibility, this inverter is ideally suited for larger installations in both residential and commercial environments. It supports grid-tied, backup and off-grid applications.

Key Features:

✔ Maximum efficiency of 98.2%

✔ Three MPPTs for optimized energy yield

✔ Battery voltage 180~600V

✔ Communication via RS485 / CAN / Wi-Fi / GPRS

Technical specifications:

• Nominal power: 20,000 W

• Max. output current: 30.3 A

• Dimensions: 516 x 415 x 180 mm

• Weight: 28 kg

Datasheet download
