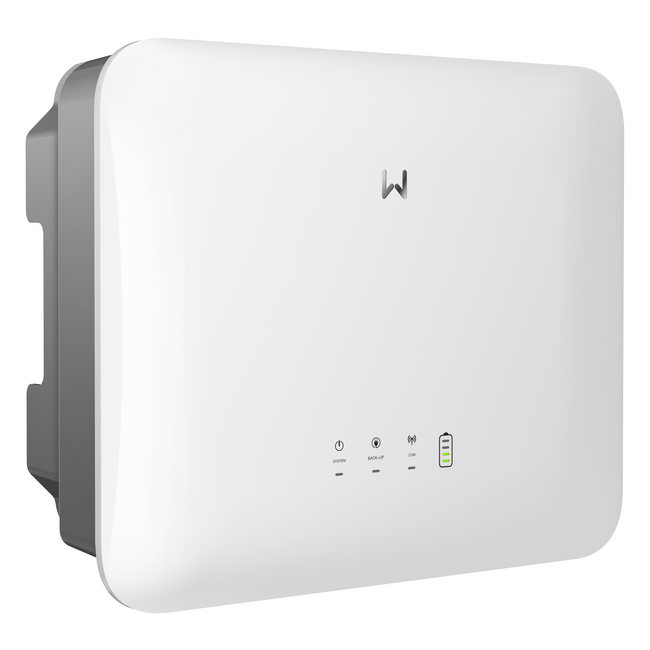

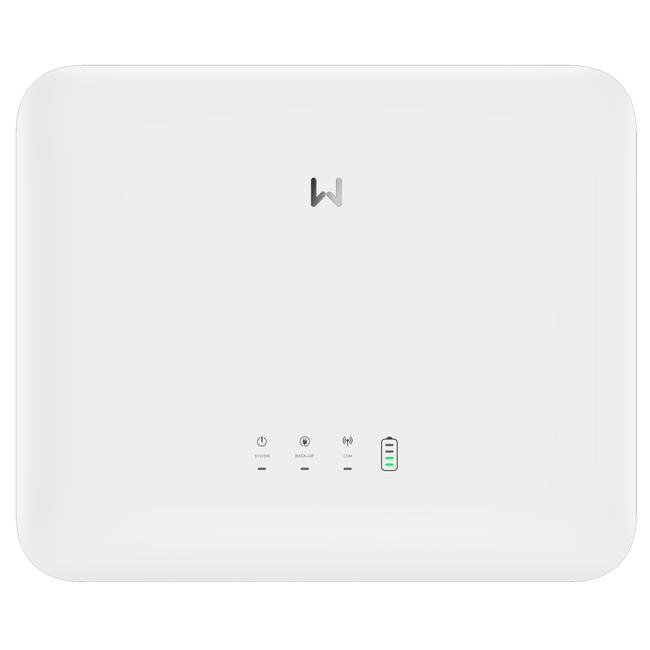

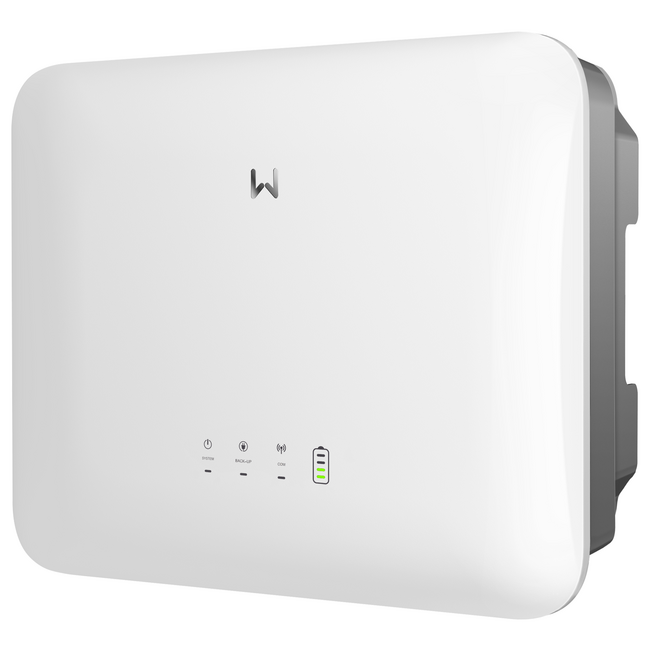

GoodWe GW5000-ES-20 Single-Phase Hybrid Inverter
The GoodWe GW5000-ES-20 is a single-phase hybrid inverter with a rated output of 5000 VA. Designed for residential PV installations with integrated battery storage. The inverter manages energy flows between the solar panel installation, home battery and electricity grid. With two independent MPPT trackers (range 60–550 V, 99.9% MPPT efficiency), the GW5000-ES-20 maximises self-consumption in every solar panel installation. The maximum charge and discharge current of 120 A each supports rapid energy storage in a connected 48 V Li-Ion battery.
What is a hybrid inverter?
A hybrid inverter combines a solar inverter and battery management in one system. It manages energy flows between the solar panel installation, home battery and electricity grid. Solar energy can be used directly for self-consumption, stored in a battery storage system or fed back into the grid via grid feed-in. GoodWe hybrid inverters are used worldwide in residential PV installations with battery storage.
- Dual MPPT: Two independent trackers with 99.9% efficiency and operating range 60–550 V for maximum PV yield.
- High charge current: Maximum charge and discharge current of 120 A for rapid energy storage in the home battery.
- IP65 protection: Certified for indoor and outdoor mounting in residential solar panel installations across all climates.
- Built-in WiFi: Standard WiFi for monitoring via the GoodWe portal; optionally expandable with WiFi+LAN or 4G.
- Wide battery compatibility: Compatible with 48 V home batteries from Dyness, Pylontech, BYD and GoodWe via CAN protocol.
Technical Operation and Installer Context of the GW5000-ES-20
The GW5000-ES-20 is part of the GoodWe ES G2 series and delivers a hybrid architecture for self-consumption, grid feed-in and backup power in residential PV installations. With a maximum charge and discharge power of 5000 W and 5300 W respectively, the GW5000-ES-20 is suited to larger home battery systems with high charge current requirements. Communication with the battery management system (BMS) uses the CAN protocol. The energy meter communicates via RS485. Passive fanless cooling ensures silent operation and reduced maintenance requirements. The enclosure (505.9 x 434.9 x 154.8 mm, 21.5 kg) is suitable for wall mounting within the PV installation. Standard protection functions include DC surge protection Type II, AC surge protection Type III, anti-islanding, residual current monitoring and PV reverse-polarity protection. Operating range: -25 °C to +60 °C, up to 3000 m altitude.
| Parameter | Value |
|---|---|
| Nominal apparent output power | 5000 VA |
| Max. PV input power | 7500 W |
| Max. PV input voltage | 600 V |
| Start-up voltage | 58 V |
| MPPT operating range | 60–550 V |
| No. of MPPT trackers / strings | 2 / 1 per tracker |
| Max. input current per MPPT | 16 A |
| Max. short-circuit current per MPPT | 23 A |
| Nominal AC voltage | 220 / 230 / 240 V |
| Max. AC output current (grid) | 22.7 A |
| Battery type | Li-Ion |
| Nominal battery voltage | 48 V |
| Battery voltage range | 40–60 V |
| Max. charge power | 5000 W |
| Max. discharge power | 5300 W |
| Max. charge / discharge current | 120 A / 120 A |
| Max. efficiency | 97.6% |
| European efficiency | 96.7% |
| Battery to AC efficiency | 95.5% |
| MPPT efficiency | 99.9% |
| Dimensions (W x H x D) | 505.9 x 434.9 x 154.8 mm |
| Weight | 21.5 kg |
| Ingress protection | IP65 |
| Operating temperature | -25 °C to +60 °C |
| Max. operating altitude | 3000 m |
| Cooling method | Natural convection (fanless) |
| BMS communication | CAN |
| Meter communication | RS485 |
| Portal communication | WiFi / WiFi+LAN / 4G |
What is included in the GW5000-ES-20 package?
The GW5000-ES-20 is delivered with the following components:
| Component | Quantity |
|---|---|
| Inverter | 1 |
| Mounting plate | 1 |
| Communication module | 1 |
| Expansion bolt | 4 |
| OT terminal | 1 |
| Screwdriver | 1 |
| Communication module unlock tool | 1 |
| DC connector | N (quantity depends on configuration) |
| COM cable for battery and Smart Meter | 1 |
| Meter | 2 |
| 2PIN terminal | 3 |
| 3PIN terminal | 1 |
| 6PIN terminal | 1 |
| AC connector | 2 |
| Battery connector | 1 |
| Documents | 1 set |
| Battery power terminal | 2 |
Which home batteries are compatible with the GW5000-ES-20 and which communication protocol is used?
The GW5000-ES-20 is compatible with 48 V Li-Ion home batteries from Dyness, Pylontech, BYD and GoodWe for use in residential PV installations with battery storage. The battery voltage range is 40–60 V. Communication with the battery management system (BMS) uses the CAN protocol. The energy meter communicates via RS485. Please consult the manufacturer's current compatibility list for your specific battery model.
Does the GW5000-ES-20 support a backup function during grid outages and what are the installation requirements?
Yes. The GW5000-ES-20 supports a backup mode in which, upon grid failure, the connected 48 V home battery continues to supply the PV installation. Maximum discharge power in backup mode is 5300 W. Installation requirements: exclusively 48 V Li-Ion batteries with CAN communication, wall mounting per the supplied mounting plate, and cabling per the supplied DC and AC connectors. Installation must be carried out by a qualified electrician in accordance with applicable national standards for PV installations.
