Hyundai HiE-S435HG(FB) 435W Full Black Shingled

€78,65 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–14 business days (EU)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

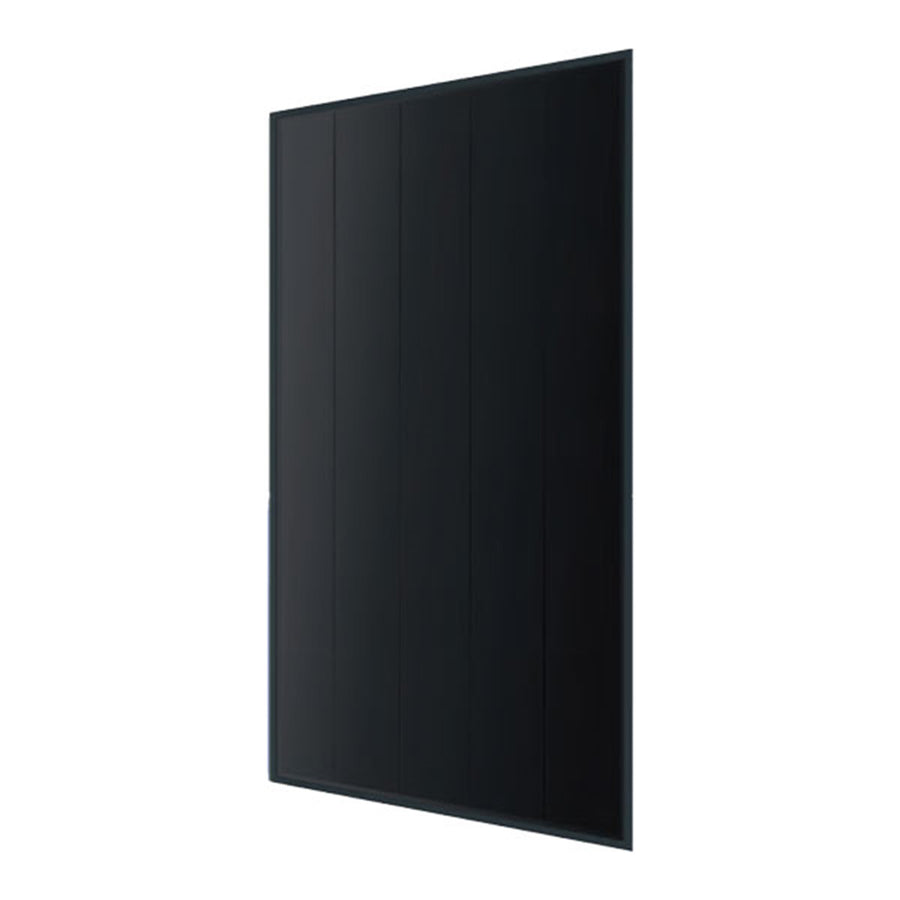

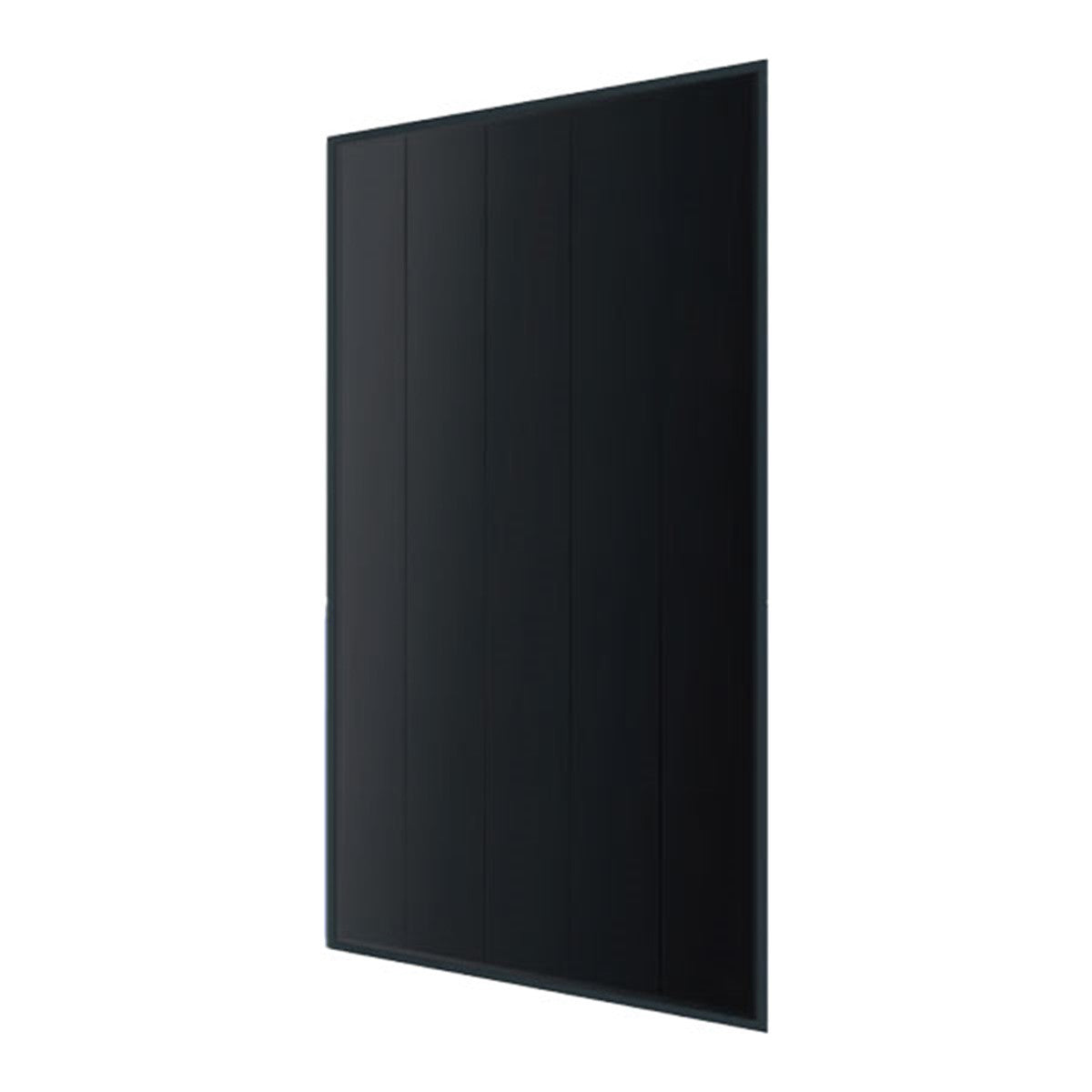

The Hyundai HiE-S435HG(FB) is a premium 435W Full Black solar module. Utilizing advanced G12 PERC Shingled Technology, cells overlap like roof shingles to eliminate gaps and maximize surface area. This results in superior efficiency of 20.9% and a sleek, all-black aesthetic without visible busbars, making it perfect for modern residential installations.

  • Shingled Technology: Enhanced performance in low light and partial shading.
  • 25-Year Warranty: Covering both product and linear performance (84.8% at year 25).
  • G12 PERC Cells: Larger wafer size for higher power output per module.
  • Anti-LID/PID: Advanced protection against power degradation over time.

Superior Aesthetics with 435W Shingled Technology (Hyundai)

The HG Series replaces traditional soldering ribbons with electrically conductive adhesive (ECA). This lowers internal resistance and reduces the risk of micro-cracks. The parallel circuit design of the shingled blocks ensures that the module continues to generate significant power even when partially shaded. Combined with a robust frame capable of withstanding heavy snow, this module is a reliable core for any PV system.

Note: This module is equipped with original Stäubli MC4-Evo2 connectors. Always ensure compatibility with your inverter or optimizer cables.
Feature Value
Brand & Model Hyundai HiE-S435HG(FB)
Power Output 435 Watts (Wp)
Technology G12 PERC Shingled (Full Black)
Efficiency 20.9%
Dimensions 1899 x 1096 x 30 mm
Weight 21.8 kg
Connector Stäubli MC4-Evo2
Warranty 25 Years Product & Performance
Max Load 5400Pa (Front) / 2400Pa (Rear)
Download Datasheet Download Manual
What are the electrical specifications (STC)?

At Standard Test Conditions (1000W/m², 25°C), the module specifications are:

  • Nominal Output (Pmax): 435W
  • Open Circuit Voltage (Voc): 43.6V
  • Short Circuit Current (Isc): 12.79A
  • Voltage at Pmax (Vmpp): 36.2V
  • Current at Pmax (Impp): 12.02A
Is this module suitable for coastal areas?

Yes, the Hyundai HG Series has passed rigorous testing for salt mist and ammonia corrosion, making it suitable for installation in harsh environments, including coastal regions and agricultural areas.

How does the warranty work?

Hyundai Energy Solutions offers a 25-year product warranty covering materials and workmanship. Additionally, there is a 25-year linear performance warranty, guaranteeing at least 98% of initial power in the first year and no less than 84.8% output by the 25th year.
