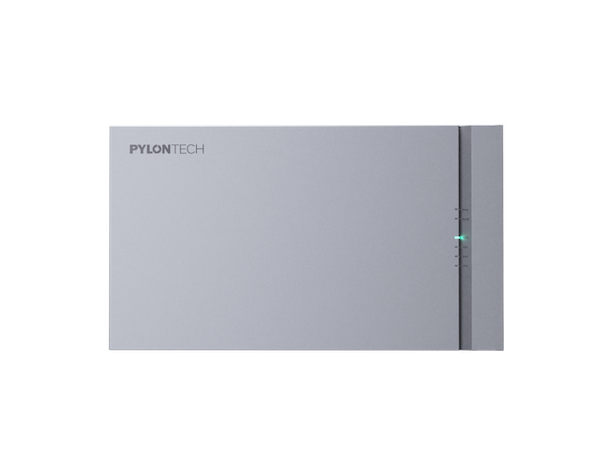

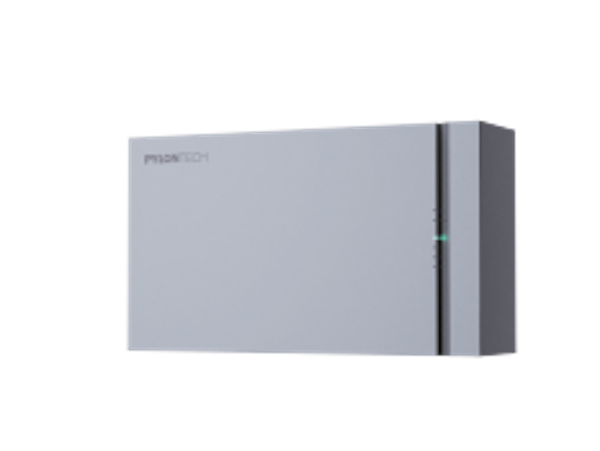

Pylontech Fidus PRO 5.12 LV Battery Module (5.12kWh Nordic)
Couldn't load pickup availability
The Pylontech FB-L-5.12-EU-Pro is a lithium iron phosphate energy storage system featuring a usable capacity of 4864 Wh and a 100 A continuous charge and discharge current. The system is designed for residential self-consumption and integrates seamlessly into a Pylontech Storage architecture. Communication is established via CAN and RS485 interfaces with compatible hybrid inverters.
- Usable Capacity: 4864 Wh at 95% depth of discharge.
- Nominal Capacity: 5120 Wh lithium iron phosphate storage.
- Protection Class: IP65 enclosure with C5-M corrosion resistance.

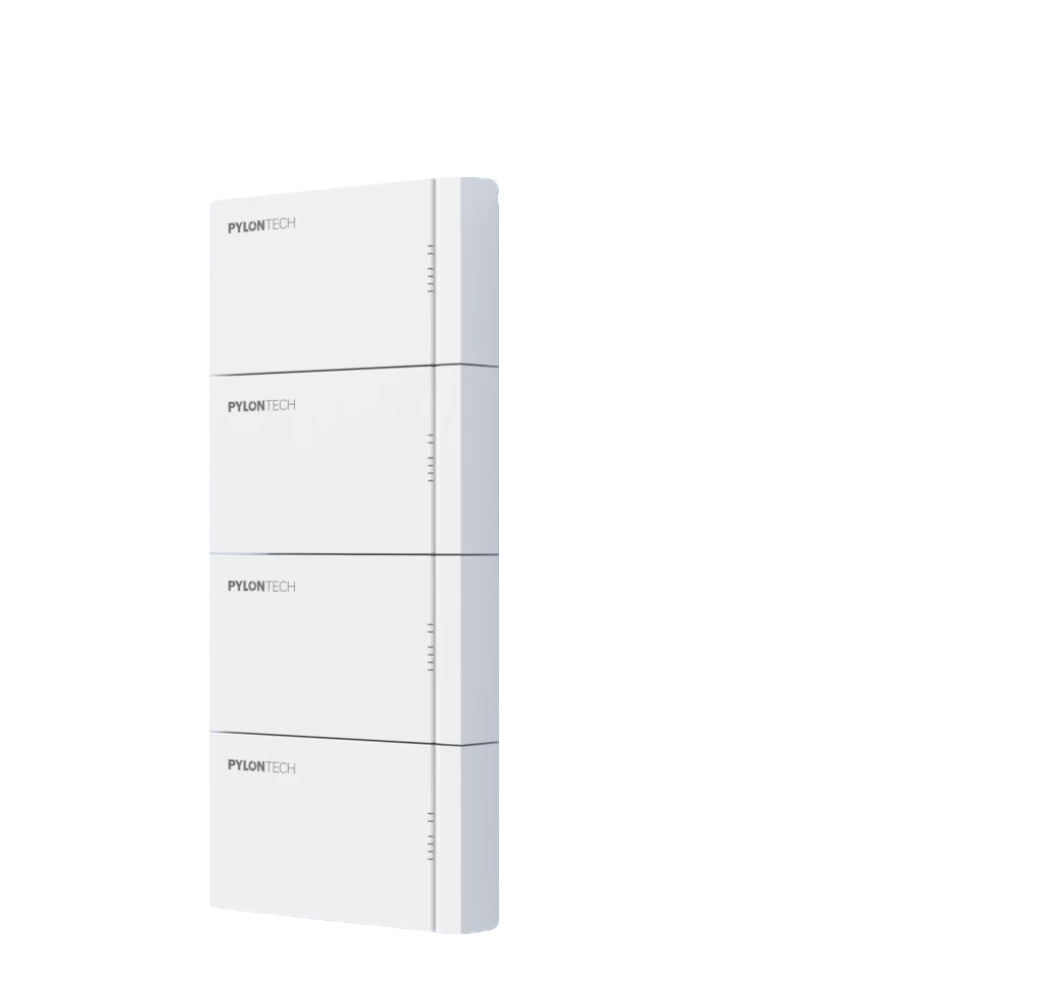

- Scalability: Supports up to 20 modules per battery group.
100 A Continuous Current at 5120 Wh Nominal Capacity
The battery processes 100 A continuously at a nominal capacity of 5120 Wh. The integrated heating function supports operation down to -20°C. Certifications include IEC62619, IEC63056, VDE-AR-E 2510-50, IEC62477-1, EMC/CE, RoHS, Reach, WEEE, and UN38.3. Through RS485 and CAN communication, stable data exchange with the inverter is ensured while the integrated battery management system continuously monitors each individual cell.
| Property | Value |
|---|---|
| Brand & Model | Pylontech FB-L-5.12-EU-Pro |
| Nominal Capacity | 5120 Wh |
| Charge and Discharge Current | 100 A |
| Dimensions | 638(W)×361(D)×168(H) mm |
| Certifications | IEC62619, IEC63056, VDE-AR-E 2510-50, IEC62477-1, EMC/CE, RoHS, Reach, WEEE, UN38.3 |
| Design Life (25°C /77℉) | 10 Years |
| Cycle Life (25°C /77℉) | ≥6000 |
What's in the box?
The delivery includes the FB-L-5.12-EU-Pro battery module and the corresponding communication cables required for system integration. Upon receipt, all components should be inspected for completeness and potential transport damage.
- FB-L-5.12-EU-Pro storage module
- RJ45 communication cables
Compatibility?
The battery communicates via CAN or RS485 with compatible hybrid inverters. During commissioning, the battery type must be configured as Pylontech Lithium within the inverter settings.
Time-of-Use scenario?
Through CAN/RS485 communication, the battery can be integrated into Time-of-Use energy management systems. Charging and discharging power can be managed via the connected hybrid inverter to optimize grid-dependent energy costs.
