Pylontech Fidus PRO Wall Bracket (Mounting Kit)

€58,08 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–14 business days (EU)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Pylontech Fidus PRO Wall Bracket defines the structural wall anchoring within a professional Pylontech Storage system architecture. The mounting system is engineered for fixed wall installation of Pylontech Fidus PRO 5.12 LV battery modules on load-bearing wall structures. Proper anchoring ensures mechanical stability of the installation while maintaining full floor clearance for system access and maintenance.

  • Structural Wall Anchoring: Designed for permanent static load.
  • 45 kg Module Load: Dimensioned for specified battery weight.
  • Complete Mounting Assembly: Wall plate and battery fixings included.

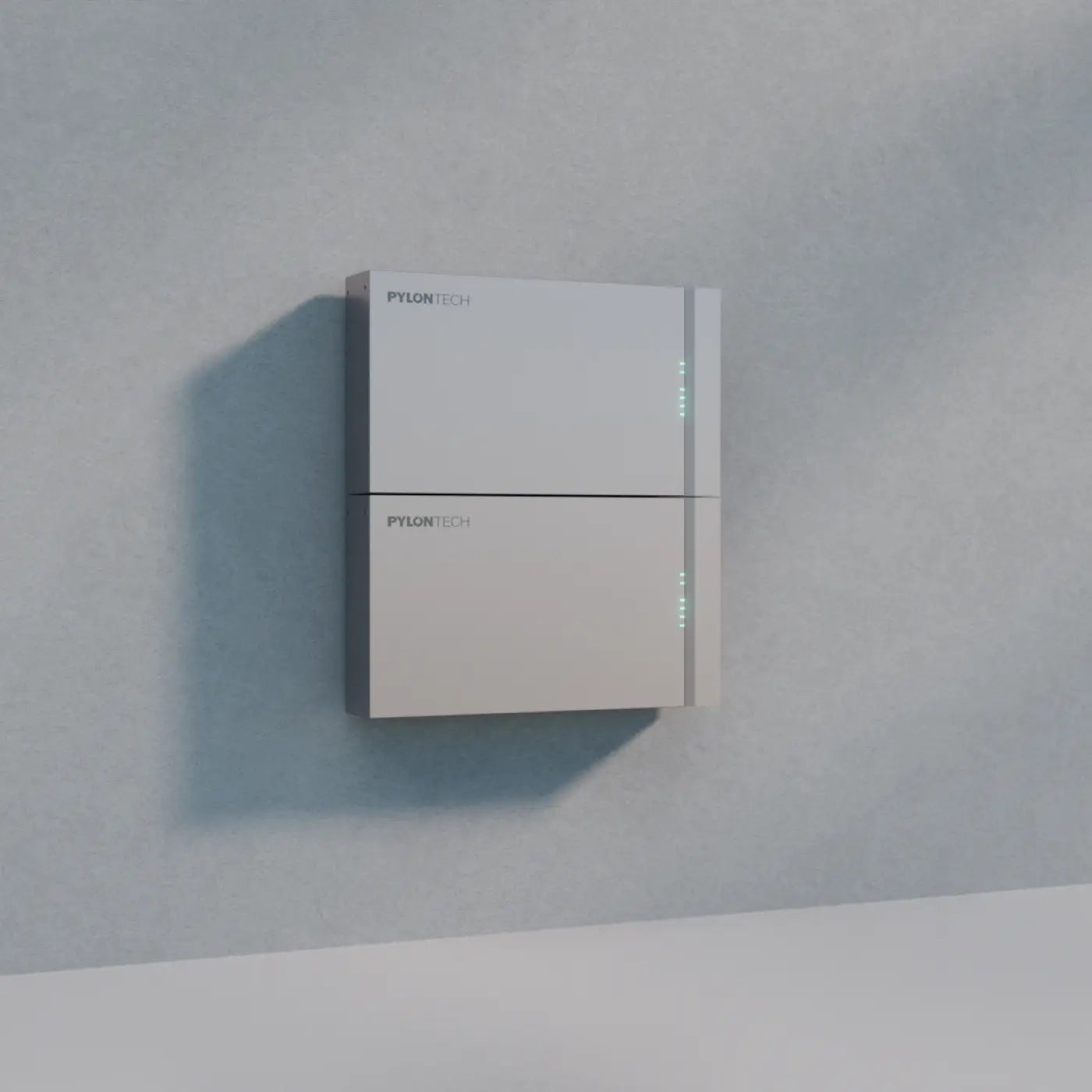

  • Vertical System Configuration: Suitable for modular wall stacking.

Structurally Defined Wall Installation for 45 kg Module Load

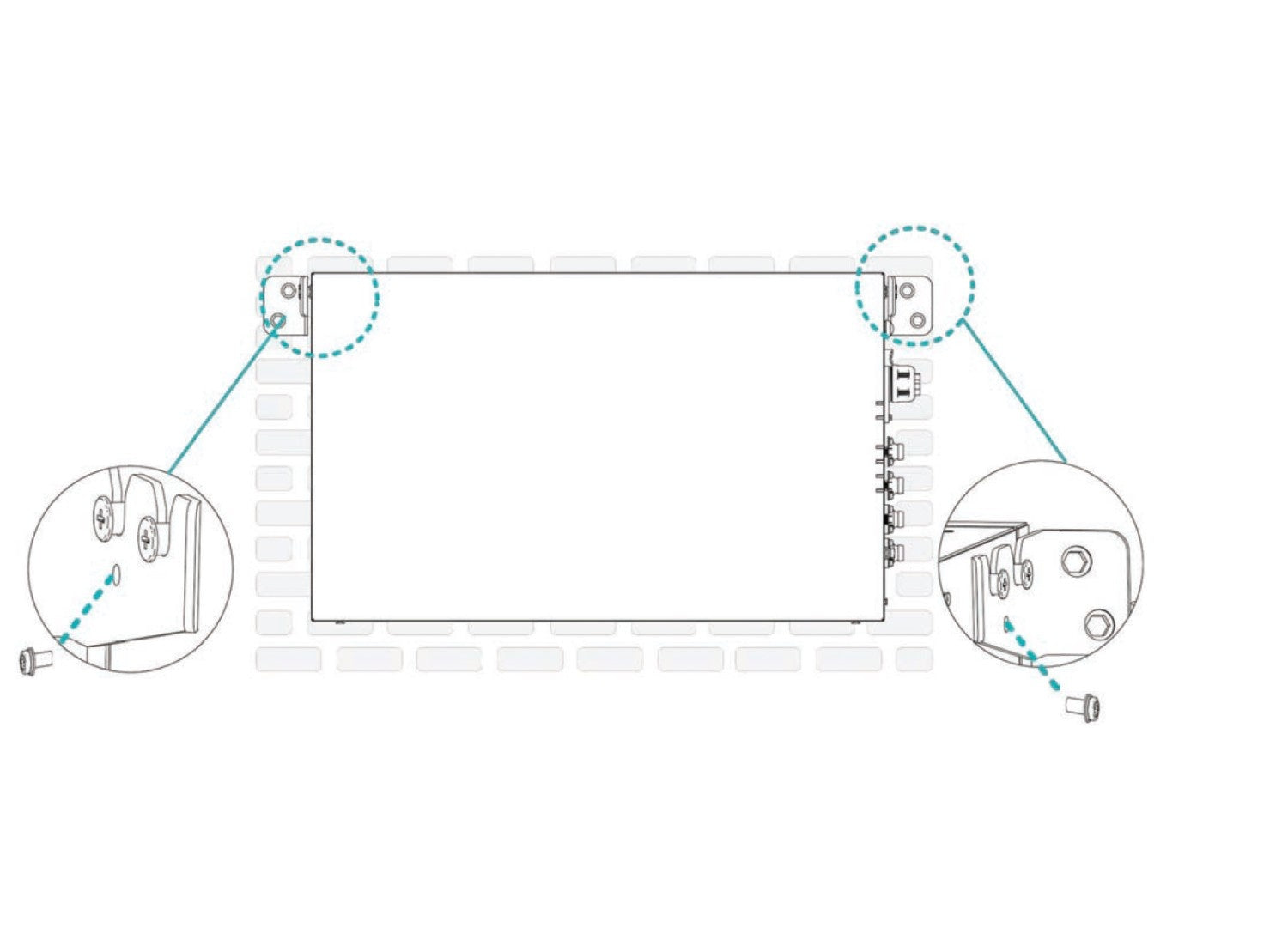

The bracket assembly is constructed to permanently support a static load of 45 kg per battery module. Installation requires M6 x 60 expansion bolts for anchoring in concrete or masonry using a Ø 10 mm drill bit at a depth of 65 mm. The specified tightening torque is 7 Nm for wall anchoring and 5 Nm for battery fastening. Exactly one complete bracket kit is required per battery module for compliant structural execution.

Note: For structurally compliant and secure installation, exactly one complete wall bracket kit is required per battery module. Installation must be performed on load-bearing solid wall constructions only.
Property Value
Product Type Wall Bracket Kit
Compatibility Pylontech Fidus PRO 5.12 LV
Quantity Required 1 complete kit per battery module
Wall Fasteners M6 x 60 Expansion Bolts
Drill Specifications Ø 10 mm / 65 mm depth
Torque 7 Nm (Wall) / 5 Nm (Battery)
Material Steel
Installation Manual Download
How many kits do I need?

Exactly one complete bracket kit is required per battery module. Each module is independently anchored to the wall within the system configuration.

What is the minimum distance between batteries?

For vertical installation, the spacing between bracket levels must exceed the height of one battery module (>370 mm). This ensures adequate ventilation and cable access.

What is included in the package?

The kit includes the complete mounting assembly for one battery module:

  • 1x Wall Bracket
  • 2x Mount Fixings
  • M6 x 60 Expansion Bolts
  • Mounting Screws (M6x15 / M5x12 / M5x10)

View compatible batteries in our Pylontech Collection.
