Pylontech Fidus Stacking Brackets (Set of 4)
The Pylontech Fidus Stacking Bracket Kit (4-Piece) defines the mechanical inter-module locking mechanism within a vertically configured Pylontech Storage system architecture. The kit is engineered for structured floor-mounted stacking of Pylontech Fidus PRO 5.12 LV battery modules.
- 4-Point Locking System: 2x left and 2x right structural fixation.
- Mechanical Inter-Module Coupling: Rigid module-to-module anchoring.
- 45 kg Module Mass: Structurally aligned with battery weight.
- Vertical Tower Configuration: Designed for modular stacked installations.
Mechanically Defined Inter-Module Anchoring

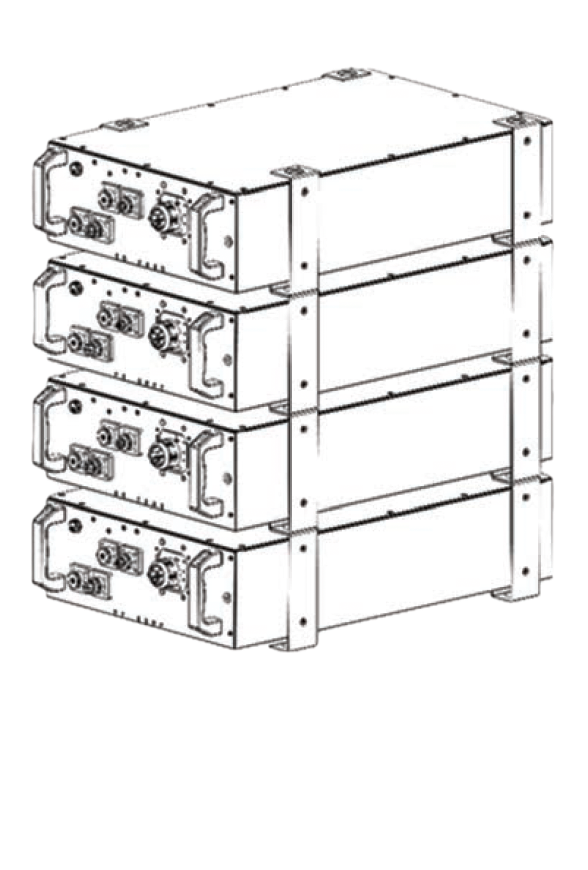

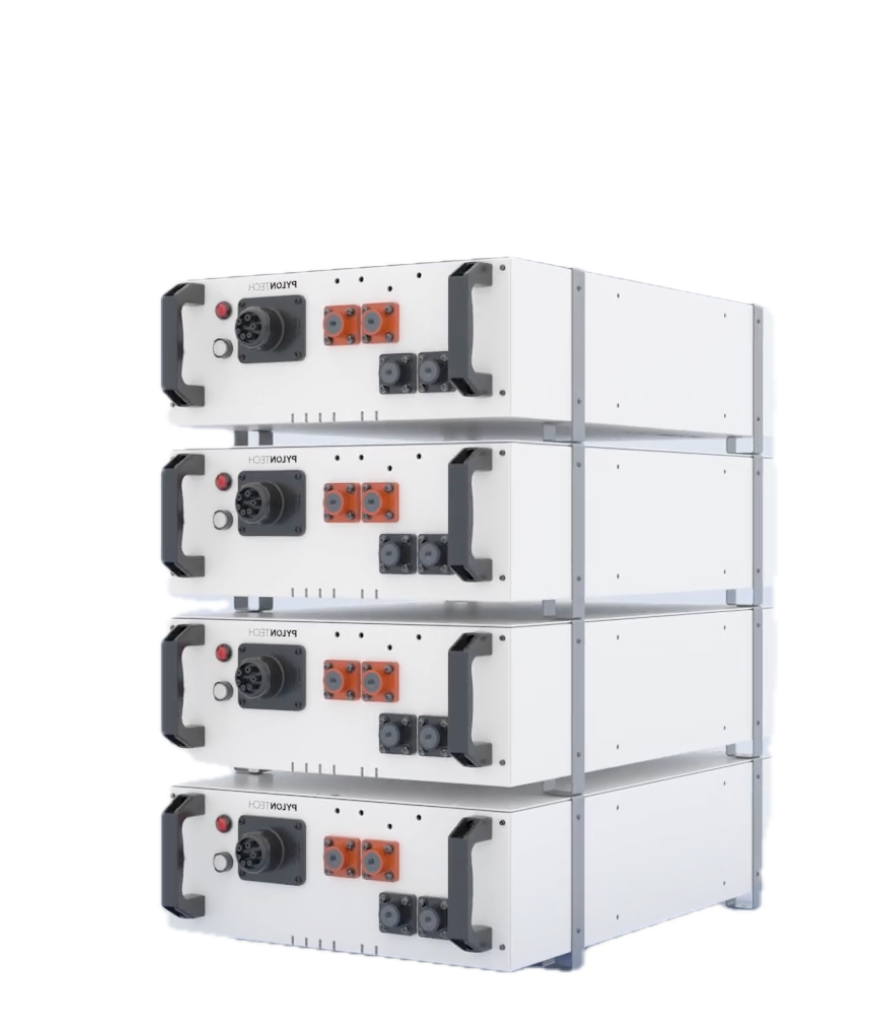

The kit consists of four steel stacking brackets that rigidly secure the upper battery module to the unit below. Dual-sided fixation reduces relative movement between modules and stabilizes internal connector alignment. For each additional stacked battery module, exactly one complete 4-piece set is required. Installation is executed via screw fixation in accordance with prescribed system mounting procedures.
| Property | Value |
|---|---|
| Product Type | Stacking Brackets |
| Compatibility | Pylontech Fidus PRO 5.12 LV |
| Package Contents | 4x Bracket (2x Left, 2x Right) |
| Material | Steel |
| Quantity Required | 1 complete set per stacked battery module |
| Installation Method | Screw fixation (Inter-module locking) |
How many sets do I need?
For each additional stacked battery module, exactly one complete 4-piece kit is required. Each module layer is mechanically secured to the unit beneath it.
Why does the set consist of 4 brackets?
The four brackets provide dual-sided fixation across multiple mounting points. This reduces torsional movement and maintains structural alignment within vertical tower configurations.
Are these brackets compatible with other Pylontech series?
This stacking bracket kit is exclusively designed for Pylontech Fidus PRO 5.12 LV. Other Pylontech series require their respective dedicated mounting systems.
View compatible batteries in our Pylontech Collection.
