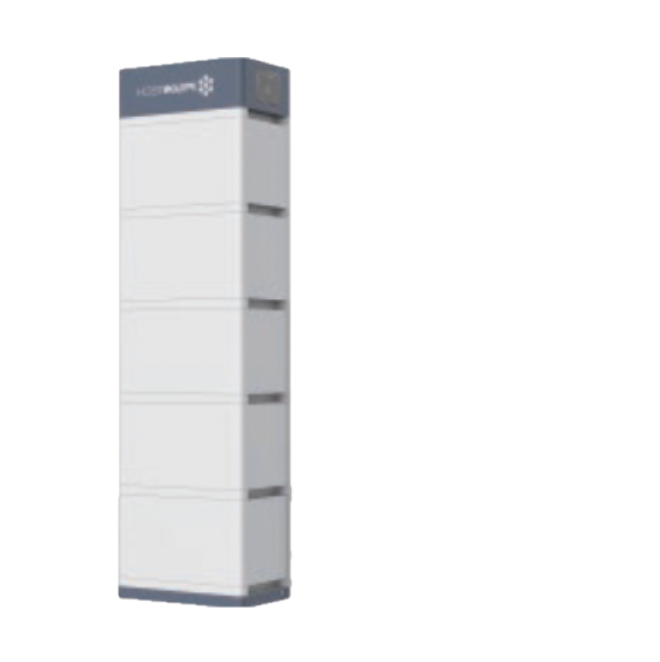

Pylontech Force H2 17.76kWh

The Pylontech Force H2 17.76kWh home battery is an advanced energy storage solution, ideal for residential and commercial applications. With a capacity of 17.76 kWh, this battery offers an efficient way to store and access solar energy when needed. Thanks to its advanced lithium iron phosphate (LiFePO4) technology, the battery guarantees a long lifespan, high safety, and maximum performance.

Unique features of the Pylontech Force H2 17.76kWh:

✔ Modular design for easy expansion

✔ Integrated BMS V1-version for optimal performance

✔ High reliability and long service life thanks to LiFePO4 technology

✔ Compatible with various hybrid inverters

Technical specifications:

• Capacity: 17.76 kWh

• Rated voltage: 480V DC

• Recommended Depth of Discharge (DoD): 95%

• Type: High Voltage Battery

• Protection class: IP55

• Dimensions: 450 x 296 x 1710 mm

• Weight: 188.5 kg

• Communication: CAN/RS485

• Lifespan: >8000 cycles

Datasheet Download

Installation manual
