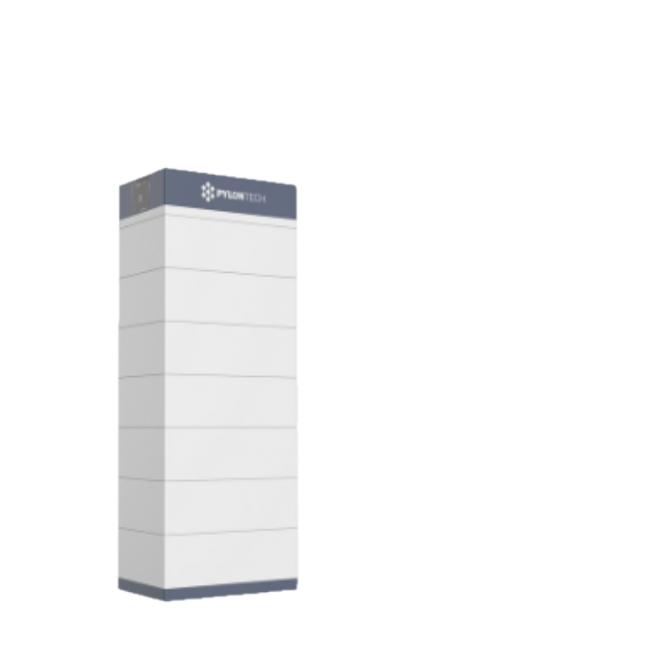

Pylontech Force H3 35.8kWh Home Battery (Ultimate Stack)

€7.452,39 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–8 business days (EU)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Pylontech Force H3 35.8kWh represents the pinnacle of residential energy storage capacity. This complete set utilizes the full potential of the Force H3 tower design by stacking 7 battery modules (FH10050). Operating at a nominal voltage of 716.8V, this system is engineered for maximum efficiency, suitable for large homes and commercial applications requiring substantial energy independence.

  • Massive Capacity: 35.84 kWh usable energy in a single tower (7 modules).
  • Ultra High Voltage: 716.8V nominal voltage for superior system efficiency.
  • Compact Footprint: High density storage in a 54 x 35 cm frame.
  • Durable & Safe: IP55 rated enclosure with premium LFP technology.

The Powerhouse: Force H3 Full Stack

The Force H3 delivers industrial-grade performance in a sleek, furniture-like design. The wireless stacking technology simplifies installation significantly—no external DC cables are needed between modules. This 35.8kWh configuration provides ample power to run heat pumps, charge EVs, and sustain a household through extended grid outages, all managed by an intelligent BMS.

Installation Note: This is a heavy-duty system with a total weight of 287 kg.
  • Weight per module (FH10050): 39 kg
  • Weight BMS + Base: 14 kg
Ensure the installation floor can support this load and use appropriate lifting equipment.
Feature Value
Brand & Model Pylontech Force H3 (35.8kWh Set)
Total Capacity 35.84 kWh
Configuration 7x FH10050 Modules + BMS
System Voltage 716.8 V (Nominal)
Dimensions (WxDxH) 540 x 350 x 1380 mm
Depth of Discharge 95%
Download Datasheet Download Manual
Can I expand this system further?

This 7-module configuration is the maximum for a single tower. However, you can connect up to 6 towers in parallel for a massive total capacity exceeding 215 kWh for commercial projects.

Is it suitable for outdoor installation?

Yes, the system is IP55 rated, protecting it against dust and water jets. While it can be installed outdoors in a sheltered area, an indoor environment (garage or utility room) is recommended for optimal battery health.

What inverter do I need?

You need a High Voltage hybrid inverter capable of handling the 716V nominal voltage (and up to ~806V charge voltage). Always check the compatibility list of your inverter brand.
