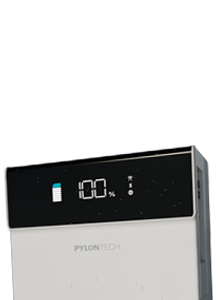

Pylontech Force H3X 10kW Hybrid Inverter (3-Phase / 3 MPPT)

€1.908,17 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–7 business days (NL/BE)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Pylontech Force H3X 10kW (10K-HY-3P) is an integrated 3-phase hybrid energy platform in which Power Controller, system control, battery communication and EMS functionality are brought together within one closed High-Voltage system architecture. This Power Controller unit forms the central control platform of the Force H3X configuration, delivering balanced 3-phase power regulation, high PV processing capacity and ultra-fast full-backup functionality for residential and light commercial applications.

Note: This product includes the Power Controller (Box 1) only. A complete system requires at least 2x Pylontech Force H3 Battery Modules (FH10050).
  • 3 Independent MPPT Trackers: Maximum design freedom for east-west configurations and complex roof geometries.
  • UPS-Level Full Backup: Automatic transition to island mode in <10 ms.
  • 100% Unbalanced Load Support: Handles heavy single-phase loads within a 3-phase backup configuration.
  • Advanced DC Protection: Integrated AFCI (Arc Fault Circuit Interrupter) with active arc fault detection in accordance with international safety standards.
  • Modular Battery Platform: Engineered exclusively for Force H3 Battery Modules (FH10050).

10kW 3-Phase Power Regulation with High-Voltage Architecture

The Force H3X 10kW supports three independent MPPT trackers and is designed for maximum energy yield under variable roof orientations. With a nominal AC output of 10,000 W and an off-grid surge capacity of 12 kVA (60 seconds), the system delivers stable performance under high simultaneous load. The integrated EMS regulates bidirectional energy flows based on real-time grid measurement, load profile and battery state, ensuring maximum self-consumption and grid optimisation.

Thanks to the modular stack design, the Power Controller mounts directly on top of the FH10050 battery modules, eliminating external DC cabling between inverter and battery. The IP65 rating and C5M corrosion protection allow installation in technical rooms and sheltered outdoor environments.

Feature Value
Brand & Model Pylontech Force H3X (10K-HY-3P)
Phase / MPPT 3-Phase / 3 Independent MPPTs
Nominal AC Output 10,000 W (10 kW)
Off-Grid Surge Capacity 12 kVA (60 seconds)
Backup Switching Time <10 ms (UPS Class)
Communication Bluetooth, WiFi and PylontechPro App
Protection Rating IP65 / C5M Corrosion Protection
Warranty 10 years (after registration)
Certifications CE, VDE-AR-N 4105

Note: Battery certifications apply to the connected Pylontech Force H3 (FH10050) battery modules.

Datasheet Download Manual Download PylontechPro App Manual
What is included in Box 1 (Power Controller)?

The delivery of the Power Controller (Box 1) includes all essential components for installation of the 3-phase Power Controller:

  • 1x Pylontech H3X 10kW Power Controller unit
  • 1x Base platform (floor mounting)
  • Anti-toppling brackets and lifting handles
  • AC Grid & AC Back-up connectors
  • PV connectors (3x positive / 3x negative)
  • Communication cables (Bluetooth / WiFi)
  • Smart Meter + CT clamps
  • Mounting hardware and documentation
Which batteries are compatible with the Force H3X 10kW?

The Force H3X 10kW is developed as a closed ecosystem and operates exclusively with Pylontech Force H3 (FH10050) High Voltage battery modules. For the 3-phase version, a minimum of 2 modules is required. Up to 4 modules can be stacked per tower, resulting in a capacity of 10.24 kWh to 20.48 kWh.

Is the system prepared for changing grid structures?

Yes. Thanks to integrated grid measurement, fast response and EMS regulation, the Force H3X supports maximum self-consumption, controlled grid interaction and preparation for future changes in grid regulations and feed-in tariff structures.

What safety mechanisms are integrated in the Power Controller (Box 1)?

The Power Controller (Box 1) features IP65 protection, C5M corrosion resistance and integrated AFCI technology for active detection and interruption of DC arc faults. In the event of abnormal electrical conditions, the system automatically disconnects to minimise risk.

The FH3X is visible via Bluetooth but does not appear in the PylontechPro app. What can I do?

If your phone detects the FH3X via Bluetooth but the device does not appear in the PylontechPro app, please check the following steps:

  1. Do not pair the FH3X via your phone's Bluetooth settings. The initial connection must always be made from within the PylontechPro app. Manually pairing the device via Android or iOS Bluetooth settings first can disrupt communication with the app.
  2. Remove any existing Bluetooth pairing. Have you already paired the FH3X via your phone's Bluetooth settings? Remove this connection via 'Forget' or 'Unpair' and try again from within the PylontechPro app.
  3. Check app permissions. Ensure the PylontechPro app has permission to search for Bluetooth devices. Depending on your Android version, the following permissions may be required:
    • Bluetooth / Nearby Devices
    • Location (required for Bluetooth scanning on some Android versions)
  4. Restart Bluetooth and the app. Turn Bluetooth off and back on. Then fully close the PylontechPro app (do not just minimise it) and reopen it.
  5. Search for the device exclusively via PylontechPro. Open the PylontechPro app and allow the app itself to search for the FH3X for Local Configuration. Do not use your phone's Bluetooth settings for this.
  6. Try a different device. If the FH3X still does not appear, test the connection with a second smartphone (preferably a different Android device or an iPhone) to rule out a device- or software-related issue.

For additional configuration steps, refer to the PylontechPro App Manual (PDF).
