Pylontech Force H3X 12kW Hybrid Inverter (Three Phase)

€1.960,20 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–7 business days (NL/BE)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Pylontech Force H3X 12kW (FH3X12K-HY-3P) is an integrated 3-phase hybrid energy platform in which Power Controller, system control, battery communication and EMS functionality are brought together within one closed High-Voltage system architecture. This Power Controller unit forms the central control platform of the Force H3X configuration, delivering balanced 3-phase power regulation, high PV processing capacity and ultra-fast full-backup functionality for residential and light commercial applications.

Note: This product includes the Power Controller (Box 1) only. A complete operational system requires a minimum of 2 and a maximum of 7 Pylontech Force H3 Battery Modules (FH10050) per tower.
  • 3 Independent MPPT Trackers: Up to 24kW PV input for complex roof geometries and strategic array oversizing.
  • 12kW 3-Phase Output: Full phase balance with 100% unbalanced load capability per phase.
  • UPS-Level Full Backup: Automatic transition to island mode in <10 ms.
  • Advanced DC Protection: Integrated AFCI 2.0 (Arc Fault Circuit Interrupter) with active arc fault detection in accordance with international safety standards.
  • Modular Battery Platform: Engineered exclusively for Force H3 Battery Modules (FH10050) — 2 to 7 modules per tower.

12kW 3-Phase Power Regulation with 24kW PV Processing Capacity

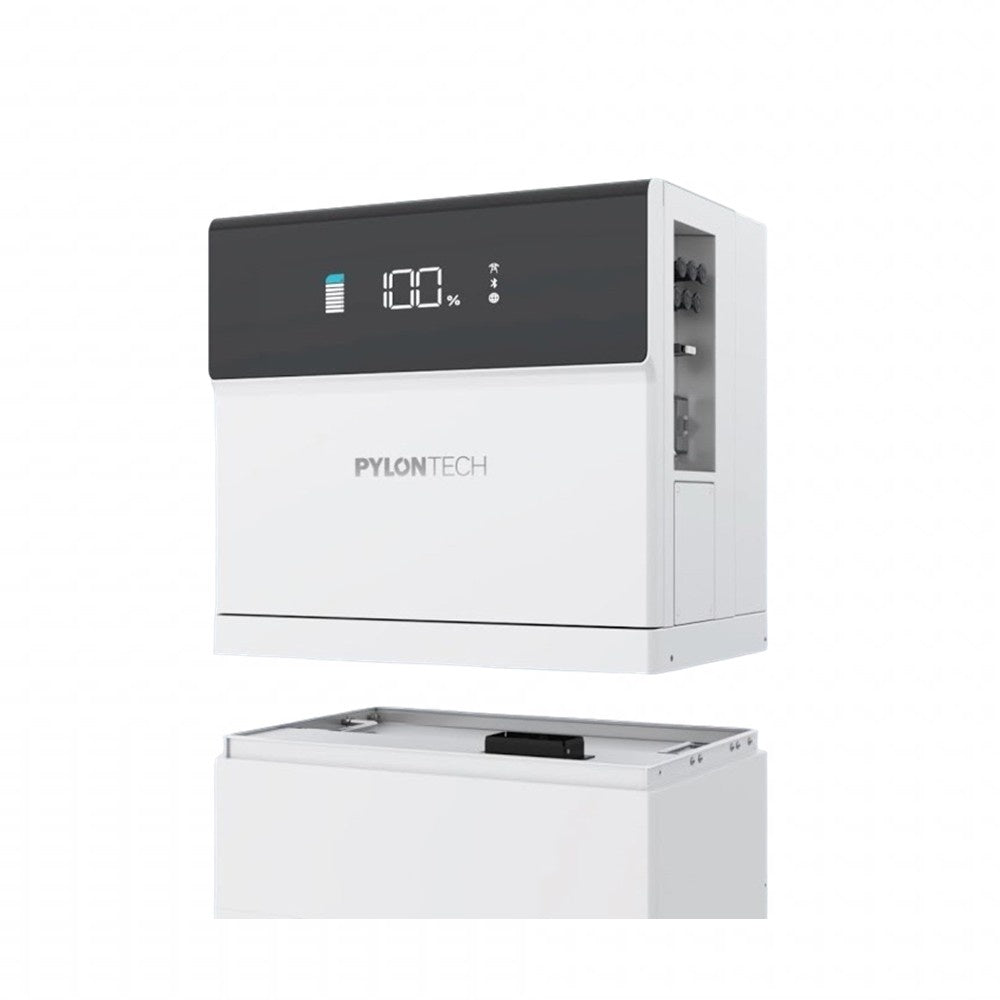

The Force H3X 12kW supports three independent MPPT trackers with a maximum PV input of 24kW, designed for maximum energy yield under variable roof orientations and strategic oversizing for optimal winter performance. The Power Controller mounts directly on top of the FH10050 battery modules, eliminating external DC cabling between inverter and battery entirely.

The integrated EMS regulates bidirectional energy flows based on real-time grid measurement, load profile and battery state, ensuring maximum self-consumption and grid optimisation. With an IP55-rated enclosure and C5M corrosion protection, the system is suitable for technical rooms and residential installations with elevated durability requirements.

Feature Value
Brand & Model Pylontech Force H3X (FH3X12K-HY-3P)
Nominal AC Output 12 kW (Three Phase)
Maximum PV Input 24 kW (3 Independent MPPTs)
Unbalanced Load Capability 100% supported per phase
European Efficiency Up to 97%+
Backup Switching Time <10 ms (UPS Class)
Communication Bluetooth, WiFi and PylontechPro App
Protection Rating IP55 / C5M Corrosion Protection
Warranty 10 years (upon registration)
Certifications CE, VDE-AR-N 4105

Note: Battery certifications apply to the connected Pylontech Force H3 (FH10050) battery modules.

Datasheet Download Manual Download PylontechPro App Manual
What is included in Box 1 (Power Controller)?

The delivery of the Power Controller (Box 1) includes all essential components for installation of the 3-phase Power Controller:

  • 1x Pylontech Force H3X 12kW Power Controller unit
  • 1x Base platform (floor installation)
  • Anti-toppling brackets and lifting handles
  • AC Grid & AC Back-up connectors
  • PV connectors (positive/negative per MPPT)
  • Multi-function terminal & CT clamp
  • Communication cables (Bluetooth / WiFi)
  • Installation hardware and technical documentation
Which batteries are compatible with the Force H3X 12kW?

The Force H3X 12kW is developed as a closed ecosystem and operates exclusively with Pylontech Force H3 (FH10050) High Voltage battery modules. Between 2 and 7 modules can be stacked per tower, resulting in a capacity of 10.24 kWh to 35.84 kWh. For larger applications, multiple towers can be connected in parallel.

Is the system prepared for changing grid structures?

Yes. Thanks to integrated grid measurement, fast response and EMS regulation, the Force H3X supports maximum self-consumption, controlled grid interaction and preparation for future changes in grid regulations and feed-in tariff structures.

What safety mechanisms are integrated in the Power Controller (Box 1)?

The Power Controller (Box 1) features IP55 protection, C5M corrosion resistance and integrated AFCI 2.0 technology for active detection and interruption of DC arc faults. In the event of abnormal electrical conditions, the system automatically disconnects to minimise risk.

The FH3X is visible via Bluetooth but does not appear in the PylontechPro app. What can I do?

If your phone detects the FH3X via Bluetooth but the device does not appear in the PylontechPro app, please check the following steps:

  1. Do not pair the FH3X via your phone's Bluetooth settings. The initial connection must always be made from within the PylontechPro app. Manually pairing the device via Android or iOS Bluetooth settings first can disrupt communication with the app.
  2. Remove any existing Bluetooth pairing. Have you already paired the FH3X via your phone's Bluetooth settings? Remove this connection via 'Forget' or 'Unpair' and try again from within the PylontechPro app.
  3. Check app permissions. Ensure the PylontechPro app has permission to search for Bluetooth devices. Depending on your Android version, the following permissions may be required:
    • Bluetooth / Nearby Devices
    • Location (required for Bluetooth scanning on some Android versions)
  4. Restart Bluetooth and the app. Turn Bluetooth off and back on. Then fully close the PylontechPro app (do not just minimise it) and reopen it.
  5. Search for the device exclusively via PylontechPro. Open the PylontechPro app and allow the app itself to search for the FH3X for Local Configuration. Do not use your phone's Bluetooth settings for this.
  6. Try a different device. If the FH3X still does not appear, test the connection with a second smartphone (preferably a different Android device or an iPhone) to rule out a device- or software-related issue.

For additional configuration steps, refer to the PylontechPro App Manual (PDF).

Explore all system configurations in our Pylontech Storage Collection or combine directly with the required Force H3 FH10050 Battery Modules.
