Pylontech Force H3X 3.6kW Hybrid Inverter (Single Phase)
Couldn't load pickup availability
The Pylontech Force H3X 3.6kW (FH3X3.6K-HY-1P) is an integrated single-phase hybrid energy platform in which Power Controller, system control, battery communication and EMS functionality are brought together within one closed system architecture. This Power Controller unit forms the central control platform of the Force H3X configuration, delivering controlled AC output, high PV processing capacity and ultra-fast backup functionality within a robust residential energy system.
- Closed System Architecture: Full integration of power control, battery communication and energy management within one platform.
- Advanced DC Protection: Built-in AFCI 2.0 (Arc Fault Circuit Interrupter) with active arc fault detection in accordance with international safety standards.
- UPS-Level Back-up: Automatic transition to island mode in <10 ms.
- Modular Battery Platform: Engineered exclusively for Force H3 Battery Modules (FH10050).
3.6kW Hybrid Output with 9.6kW PV Processing Capacity
The Force H3X 3.6kW supports a maximum PV input of 9.6 kW across two independent MPPT trackers. This configuration enables controlled oversizing to optimise annual yield and winter performance. The integrated EMS regulates bidirectional energy flows based on real-time grid measurement, consumption profile and battery state, ensuring a stable and efficient energy balance.

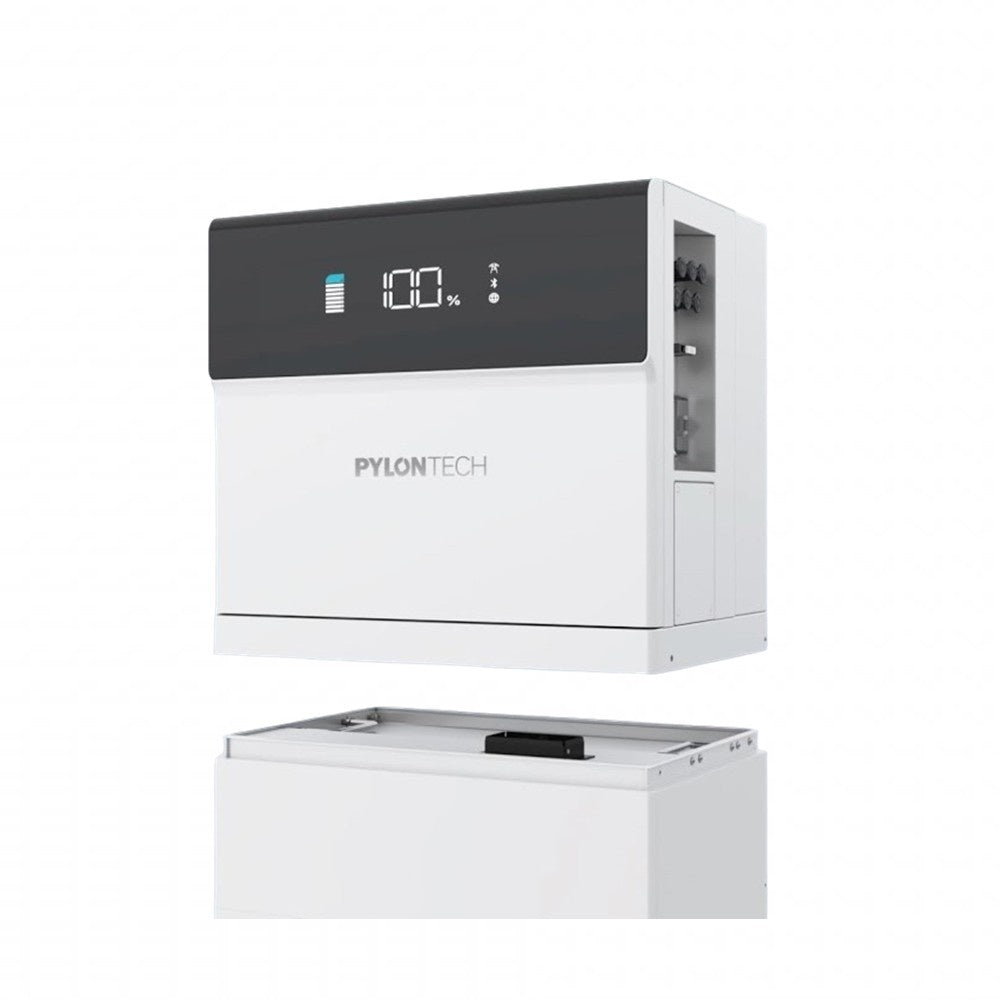

The mechanical stack architecture eliminates complex external wiring and reduces installation risks. With an IP55-rated enclosure, C5M corrosion protection and a noise level of <29 dB, the system is suitable for technical rooms, garages and residential installations with elevated durability requirements.
| Feature | Value |
|---|---|
| Brand & Model | Pylontech Force H3X (FH3X3.6K-HY-1P) |
| Nominal AC Output | 3.6 kW (Single Phase) |
| Maximum PV Input | 9.6 kW (2 MPPT) |
| Back-up Switching Time | <10 ms |
| Communication | Bluetooth, WiFi and PylontechPro App |
| Dimensions (W x D x H) | 540 x 350 x 565 mm (Base Unit) |
| Protection Class | IP55 / C5M Corrosion Protection |
| Certifications | CE, VDE-AR-N 4105 |
Note: Battery certifications apply to the connected Pylontech Force H3 (FH10050) battery modules.
What is included in Box 1 (Power Controller)?
The delivery of the Power Controller (Box 1) includes all essential components for installation:
- 1x Power Controller Unit
- 1x Base Plate
- Anti-toppling and metal mounting brackets
- Lifting handles for installation
- Multi-function terminal & CT clamp
- AC Grid & AC Back-up connectors
- Mounting hardware
- Documentation
Which batteries are compatible with the Force H3X?
The Force H3X is developed as a closed ecosystem and operates exclusively with Pylontech Force H3 (FH10050) battery modules. This configuration ensures direct system communication, controlled integration and long-term operational stability.
Is the system prepared for changing grid structures?
Yes. Thanks to integrated grid measurement, fast response and EMS regulation, the Force H3X supports maximum self-consumption, controlled grid interaction and preparation for future changes in grid regulations and feed-in tariff structures.
What safety mechanisms are integrated in the Power Controller (Box 1)?
The Power Controller (Box 1) features IP55 protection, C5M corrosion resistance and integrated AFCI 2.0 technology for active detection and interruption of DC arc faults. In the event of abnormal electrical conditions, the system automatically disconnects to minimise risk.
The FH3X is visible via Bluetooth but does not appear in the PylontechPro app. What can I do?
If your phone detects the FH3X via Bluetooth but the device does not appear in the PylontechPro app, please check the following steps:
- Do not pair the FH3X via your phone's Bluetooth settings. The initial connection must always be made from within the PylontechPro app. Manually pairing the device via Android or iOS Bluetooth settings first can disrupt communication with the app.
- Remove any existing Bluetooth pairing. Have you already paired the FH3X via your phone's Bluetooth settings? Remove this connection via 'Forget' or 'Unpair' and try again from within the PylontechPro app.
- Check app permissions. Ensure the PylontechPro app has permission to search for Bluetooth devices. Depending on your Android version, the following permissions may be required:
- Bluetooth / Nearby Devices
- Location (required for Bluetooth scanning on some Android versions)
- Restart Bluetooth and the app. Turn Bluetooth off and back on. Then fully close the PylontechPro app (do not just minimise it) and reopen it.
- Search for the device exclusively via PylontechPro. Open the PylontechPro app and allow the app itself to search for the FH3X for Local Configuration. Do not use your phone's Bluetooth settings for this.
- Try a different device. If the FH3X still does not appear, test the connection with a second smartphone (preferably a different Android device or an iPhone) to rule out a device- or software-related issue.
For additional configuration steps, refer to the PylontechPro App Manual (PDF).
Explore all system configurations in our Pylontech Storage Collection or combine directly with the required Force H3 FH10050 Battery Modules.
