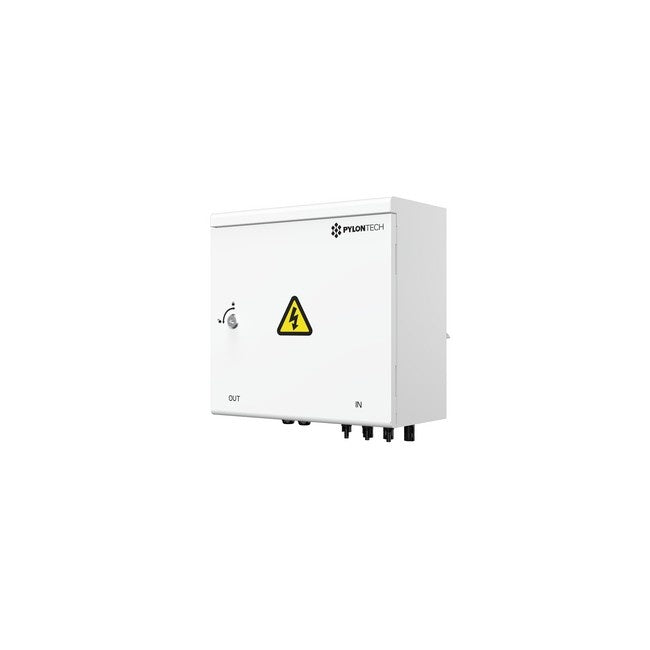

• Pylontech_HV_Combiner_Box

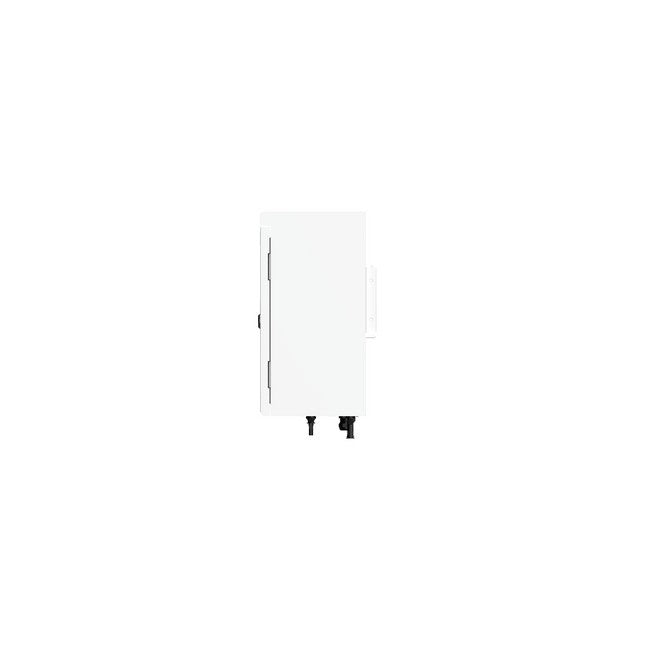

  • Pylontech_HV_Combiner_Box_Other_Side

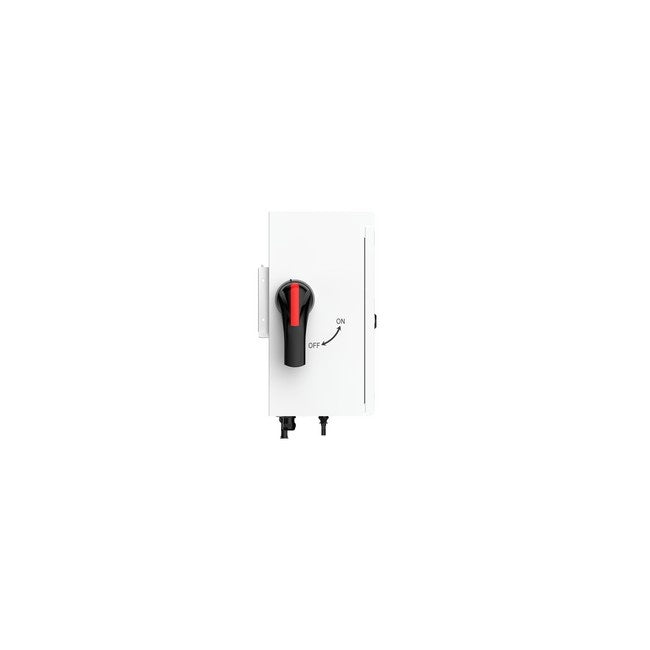

  • Pylontech_HV_Combiner_Box_Side
1 3

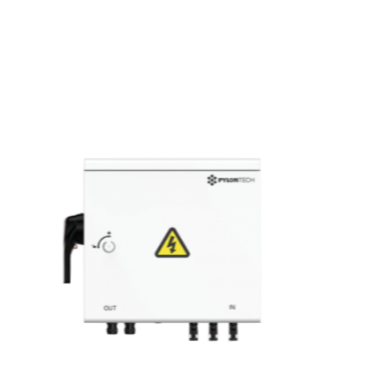

Pylontech Force Combiner-HV-6

€561,44 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–8 business days (EU)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Pylontech Force Combiner-HV-6 serves as the critical junction for high-capacity energy storage systems. By connecting up to six Pylontech Force-H battery stacks in parallel, it creates a unified 600V DC power source with a massive 100A output capability. Engineered for heavy-duty cycling and long-term asset protection, this combiner box is essential for maximizing system ROI and reducing the Levelized Cost of Energy (LCOE).

  • 6-String Input: Expands storage capacity significantly.
  • High Current Output: Delivers up to 100A continuously.
  • Safety Compliance: Built to IEC61439-1 & IEC61439-2 standards.
  • IP55 Enclosure: Durable protection against environmental factors.

Optimizing System Architecture

For commercial and high-end residential projects, scalability is key. The Pylontech HV-6 Combiner ensures balanced power distribution from multiple battery towers to the inverter. It features high-grade Amphenol H4 connectors and a DC disconnect switch rated for 12kA at 1500V, ensuring safe isolation during maintenance. With a design life of 15+ years, this component matches the longevity of premium HV inverters from brands like GoodWe or Solis.

Warning: Ensure all connected battery stacks are of the same type and voltage. Never connect PV solar wiring directly to this unit. Professional installation required.
Feature Value
Brand & Model Pylontech Force Combiner-HV-6
Nominal Voltage 600V DC
Max Output Current 100A
Input Terminals 6 Pairs (Amphenol H4)
Dimensions 400 x 385 x 200 mm
IP Rating IP55
Reference Standard IEC61439-1, IEC61439-2
Download Datasheet Download Manual
What is included in the box?

The package includes the HV-6 Combiner Box, 6 pairs of Amphenol H4 power connectors, wall mounting expansion bolts, 4AWG DC power cables (2m), grounding cable, and terminal protection covers.

Can I connect different battery types?

No. You must not connect different battery types or capacities in parallel through the P-Combiner box. It is strictly designed for uniform Pylontech Force-H configurations to ensure safety and performance.

What is the fuse rating?

The unit uses a 160A fuse with a breaking capacity of 50kA at 750V DC. This high specification protects the DC bus against significant overcurrent events.
