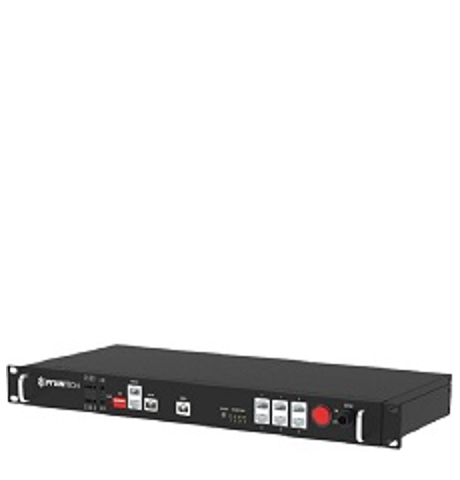

Pylontech LV-Hub Communication US2000/ US3000
Couldn't load pickup availability
The Pylontech LV-Hub is the essential communication gateway for expanding Low Voltage lithium storage systems beyond standard residential limits. Engineered with robust CAN/RS485 bridging, it coordinates multiple battery piles to function as a unified energy bank. This allows for massive scaling using standard modules like the Pylontech US3000C, catering to heavy-duty commercial and off-grid demands.
- Massive Scalability: Manages up to 5 battery groups per unit.
- Universal Protocol: Seamless CAN/RS485 data transmission.
- Ultra-Low Consumption: Requires only 2W system power.
- Proven Durability: Engineered for a 15-year operational life.
Strategic Capacity Management and LCOE Optimization
In sophisticated energy setups utilizing Time-of-Use tariffs or critical backup, data integrity is paramount. The LV-Hub acts as the central brain, aggregating SOC and BMS data from distributed battery stacks and relaying it to the inverter. This architecture significantly improves the Levelized Cost of Energy (LCOE) by allowing granular system expansion without replacing existing infrastructure. Fully compatible with top-tier inverter brands such as Victron Energy and Solis.
| Feature | Value |
|---|---|
| Brand & Model | Pylontech LV-Hub (LV-HUB-A) |
| Communication | CAN / RS485 |
| Input Voltage | 48 Vdc |
| Dimensions | 442 × 150 × 44 mm |
| Protection Class | IP20 |
| Design Life | 15 Years |
What is included in the box?
The product comes with all essential interface components.
- Pylontech LV-Hub Unit
- RJ45 Communication Cables
- External Power Cable (48V)
- Rack-mounting ears
Can I use this for off-grid systems?
Yes, the LV-Hub is ideal for large off-grid systems where storage capacity exceeds the limit of a single battery stack (usually 8 units). It coordinates multiple stacks to work as one large battery bank.
What is the maximum capacity supported?
A single Level 1 Hub connects 5 groups. With a cascaded Level 2 architecture, you can connect up to 5 Hubs, managing a total of 200 battery modules (e.g., US2000/US3000), offering MWh-scale potential.
