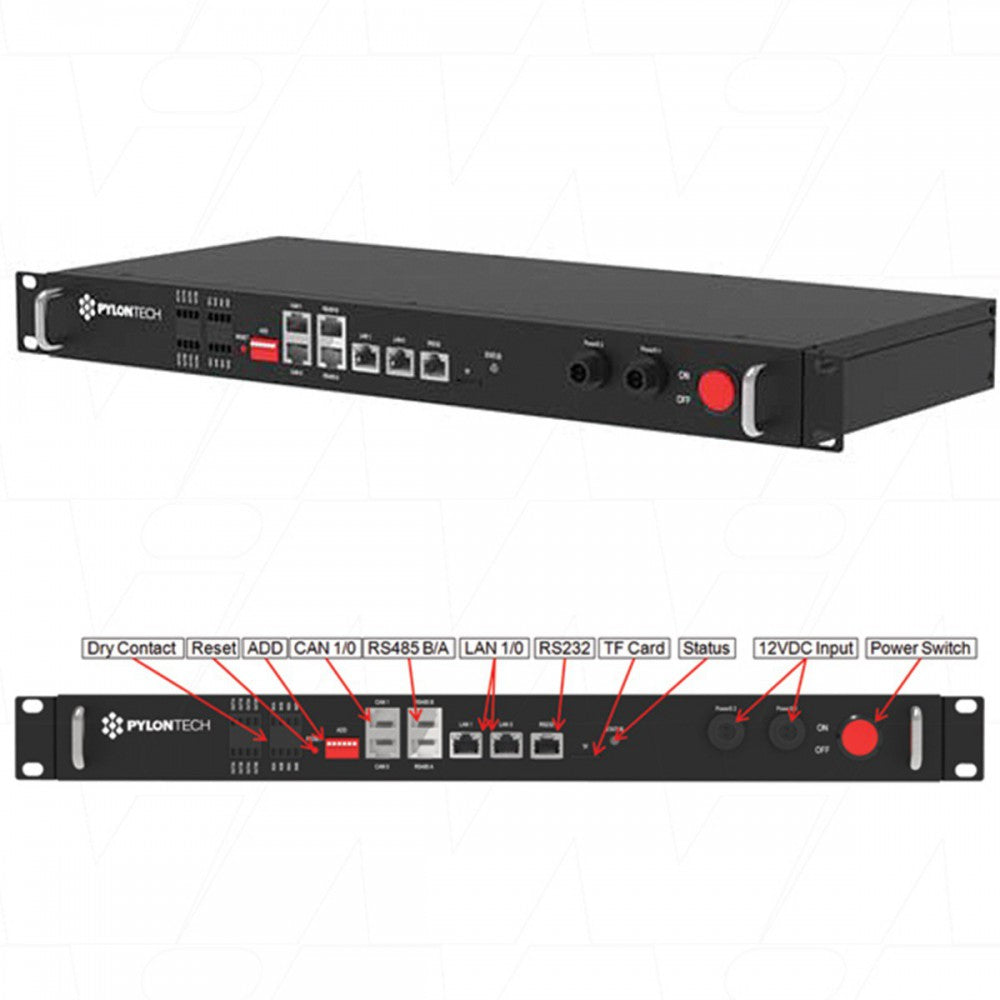

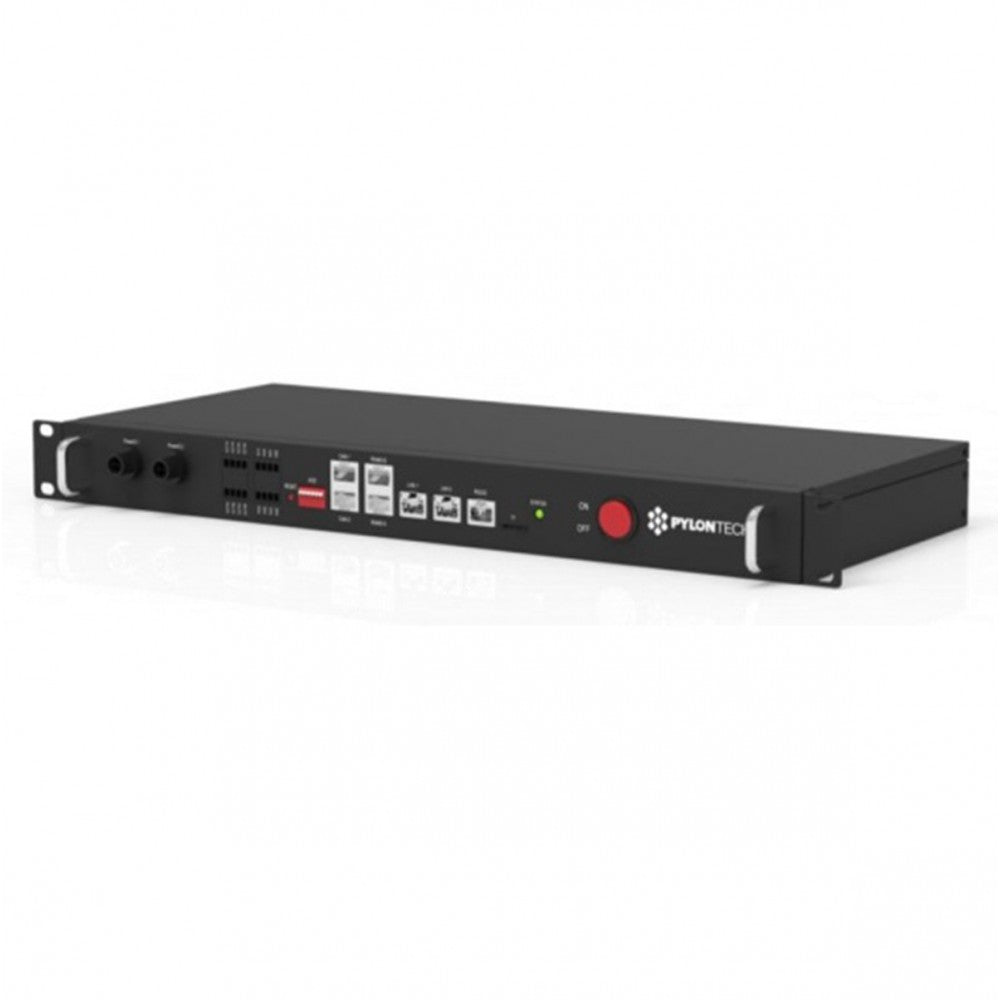

Pylontech MBMS1000 Controller | Multi-Stack Master BMS
Couldn't load pickup availability
The Pylontech MBMS1000 (Master BMS) is the critical control hub for large-scale Commercial & Industrial (C&I) energy storage systems. Designed to aggregate and manage multiple parallel Powercube M1 battery racks, this unit creates a unified, high-capacity energy reservoir. With an operating range of 100V to 1000V DC, it ensures optimal synchronization and safety across all connected battery piles, significantly enhancing the system's LCOE.
- Centralized Control: Aggregates data from multiple racks into a single interface for the inverter.
- High Voltage Capable: Supports DC system voltages from 100V up to 1000V.
- Versatile Connectivity: Native support for CAN, RS485, and Modbus TCP/IP protocols.
- Industrial Compliance: Built to meet rigorous IEC 62619 and CE safety standards.
Advanced System Integration for C&I (Pylontech)
For projects requiring more capacity than a single rack can offer, the MBMS1000 serves as the bridge between the battery array and the PCS (Power Conversion System). It actively manages the connected Slave BMS units (SC Series) to balance currents and monitor State of Health (SoH) at a system level. This architecture is essential for stable integration with high-power hybrid inverters from brands like Solis, Sungrow, or GoodWe, enabling reliable backup power and peak-shaving applications.
| Technical Spec | Value |
|---|---|
| Brand & Model | Pylontech MBMS1000 (Multi-Stack) |
| Operating Voltage | 100V ~ 1000V DC |
| Self-Consumption | 20 W |
| Communication | CAN / RS485 / Modbus TCP/IP |
| Dimensions | 442 × 270 × 44 mm (1U) |
| Design Life | 15+ Years |
| Protection Class | IP20 (Indoor) |
What is the function of the MBMS1000?
The MBMS1000 acts as the top-level controller in a multi-stack battery system. It collects data from individual rack BMS units and presents the entire array as a single battery bank to the external inverter, simplifying communication and control.
Is this unit required for a single Powercube M1 rack?
No, for a single rack system, the standard BMS Controller (SC0500 or SC1000) is sufficient to manage the battery modules and communicate with the inverter. The MBMS is only needed when connecting multiple racks in parallel.
Can it integrate with building management systems?
Yes, thanks to its Modbus TCP/IP capability via LAN port, the MBMS1000 allows for easy monitoring and integration into broader energy management or SCADA systems typical in commercial environments.
