Pylontech US5000 4.8 kWh Battery 48V | 6000+ Cycles | Modular Storage

€901,45 incl. 21% VAT
Shipping calculated at checkout.
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Pylontech US5000 represents the next generation of high-density LFP storage, engineered for superior performance in residential and commercial applications. With a substantial 4.8 kWh capacity and a 95% Depth of Discharge (DoD), this 48V module offers exceptional energy density. It is designed to seamlessly integrate into Pylontech rack systems, providing a robust solution for self-consumption optimization and backup power.

  • 4.8 kWh Capacity: High-capacity 100Ah module in a standard 19-inch rack format.
  • >6000 Cycles: Premium LiFePO4 chemistry ensures long-term reliability.
  • High Surge Power: Capable of delivering up to 200A peak current (15 sec).
  • Soft-Start Design: Built-in soft-start function reduces inrush current impact.

Optimizing LCOE with High-Density Storage

Investing in the US5000 is a strategic decision to lower your Levelized Cost of Energy (LCOE). The high cycle life combined with a design life of over 15 years ensures that your cost per stored kWh remains minimal over the system's lifetime. The advanced BMS supports CAN and RS485 communication, making it fully compatible with Tier-1 inverters such as Victron and Solis. This synergy allows for precise state-of-charge monitoring and efficient system operation under dynamic pricing tariffs.

Note: Ensure you register your battery online to activate the full 10-year warranty. Always verify the dip switch settings for your specific inverter configuration.
Feature Value
Brand & Model Pylontech US5000
Nominal Capacity 4.8 kWh / 100 Ah
Usable Capacity 4.56 kWh (95% DoD)
Dimensions 442 × 420 × 161 mm
Weight 39.7 kg
Voltage 48 V
Certifications IEC62619, UL1973, UN38.3, CE
Design Life 15+ Years
Download Datasheet Download Manual

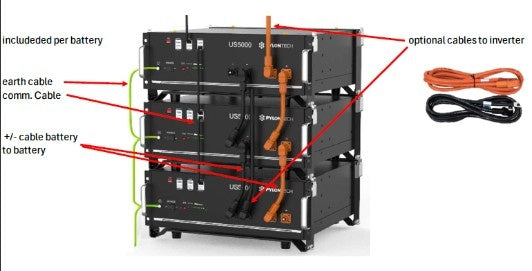

What is included in the package?

The Pylontech US5000 comes with essential inter-connection cables.

  • 1x US5000 Battery Module
  • 2x Power Cables (4AWG) for parallel connection
  • 1x RJ45 Communication Cable
  • 1x Grounding Cable
  • Mounting Screws
Can I mix US5000 with older models?

Yes, the US5000 is compatible with US2000C and US3000C series. However, the US5000 must be used as the Master battery in the stack to ensure proper communication and system management.

What is the warranty period?

The standard warranty is 7 years, which can be extended to 10 years upon successful registration of the product on the Pylontech website shortly after installation.
