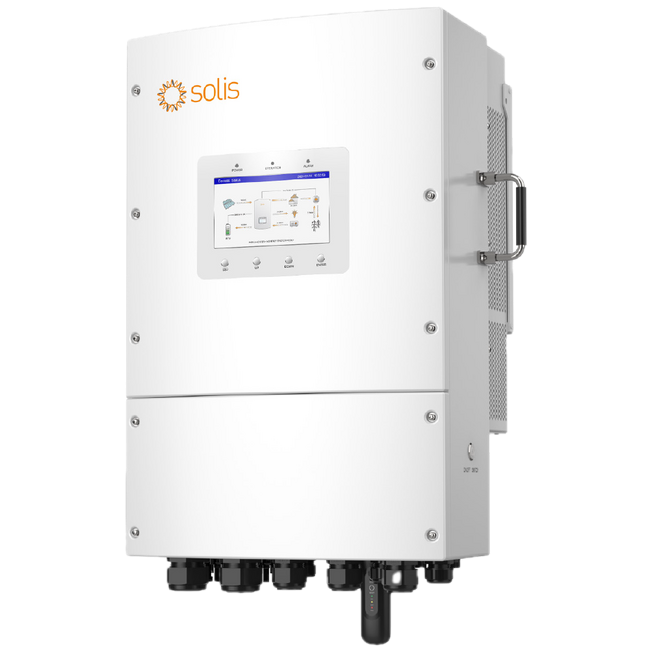

Solis S6-EH3P10K02-NV-YD-L 3-Phase Hybrid Inverter

The Solis S6-EH3P10K02-NV-YD-L is an advanced three-phase hybrid inverter designed specifically for demanding commercial and high-end residential energy storage systems. With a rated output power of 10 kW and a maximum usable PV input power of 16 kW, this component ensures peak performance. The system seamlessly supports unbalanced loads on both grid and backup ports.

• High Input Power: Maximum 16 kW usable PV power and 1000 V maximum input voltage.
• Battery Capacity: Supports both lithium-ion and lead-acid batteries with a 220 A charge current.
• Reliable Backup: Seamless switch time of <10 ms for a highly robust emergency power supply.
• Scalability: Parallel connection of up to six units possible to form an independent microgrid.

Advanced Control and System Integration

The architecture of the Solis S6-EH3P10K02-NV-YD-L offers comprehensive control over energy flows through intelligent Smart Port configurations. Thanks to the integrated generator compatibility, the inverter extends the backup duration during prolonged grid outages. The maximum continuous output current is strictly 15.2 A. For parallel configurations, the inverter is fully scalable up to six units sharing a single battery system. Efficiency is further optimized by the Time-of-Use functionality, which precisely aligns charge and discharge cycles to the load across six programmable time slots. The robust enclosure holds an IP66 rating and guarantees consistent performance in ambient temperatures ranging from -40°C to +60°C.
