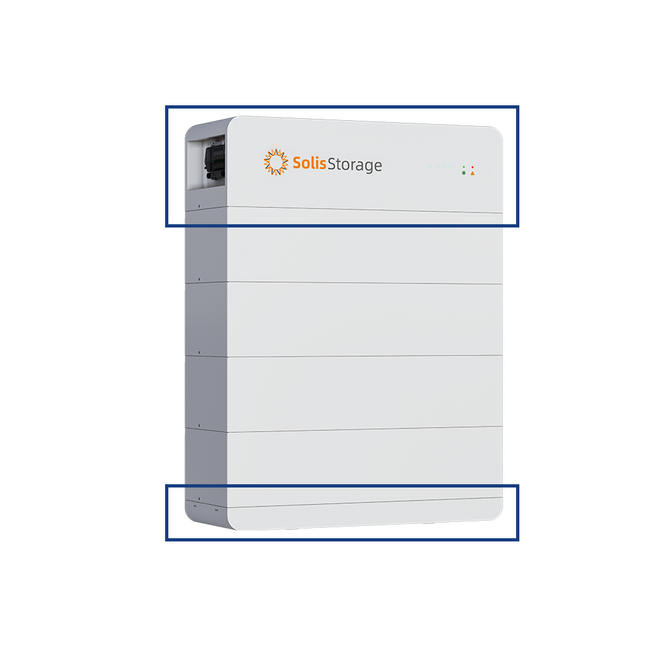

Solis FlexHome-CB210A-L BMS 210A Home Battery Controller
The Solis FlexHome-CB210A-L is the central low-voltage BMS controller for the FlexHome-(5–40)kWh-L energy storage system. This control module manages communication, system protection and charge/discharge control between battery modules and compatible Solis LV hybrid inverters. With a maximum current of 210A and CAN/RS485 integration, it is the mandatory control unit for reliable low-voltage storage.
- Low-voltage BMS controller: 210A maximum charge/discharge current — system voltage 25V – 60V.
- CAN and RS485 communication: Seamless system integration with compatible Solis LV hybrid inverters.
- Intelligent system monitoring: SOC monitoring, charge cycle management and safety logic for all connected FlexHome-BAT5kWh-L modules.
- Mandatory system component: Required for correct control of all FlexHome-BAT5kWh-L battery modules.
- Compact and lightweight: 15 kg — dimensions 800 × 230 × 285 mm.
Suitable for
- New FlexHome-(5–40)kWh-L low-voltage home battery installations
- Installations with compatible Solis LV hybrid inverters (S6-EH1P, S5-EH1P, S6-EA1P series)
- Residential energy storage with scalable capacity from 5 kWh to 40 kWh per stack
- Systems requiring SOC monitoring, safety logic and controlled charge/discharge operation
- Installations requiring Time-of-Use optimisation and dynamic energy management
Solis FlexHome-CB210A-L — specifications and benefits
- Intelligent control hub: The BMS monitors battery status, manages charge cycles and ensures communication with compatible inverters — essential for safety, lifespan and system efficiency.
- Scalable configuration: Combined with FlexHome-BAT5kWh-L modules, system capacity of 5 kWh to 40 kWh per stack is achievable — expandable via parallel connection.
- Time-of-Use optimisation: Supports dynamic energy management and improved long-term cost-of-ownership in markets with variable energy tariffs.
- Wide inverter compatibility: Validated for Solis LV series S6-EH1P(3–6)K-L-EU, S5-EH1P(3–6)K-L, S6-EH1P(3–10)K-L-PLUS and S6-EA1P series.
| Property | Value |
|---|---|
| Brand & model | SolisStorage FlexHome-CB210A-L |
| MPN | FlexHome-CB210A-L |
| Type | Low-voltage BMS controller |
| System series | FlexHome-(5–40)kWh-L |
| System voltage | 25V – 60V |
| Max. charge/discharge current | 210A |
| Communication | CAN / RS485 |
| Compatible inverters | S6-EH1P(3–6)K-L-EU, S5-EH1P(3–6)K-L, S6-EH1P(3–10)K-L-PLUS, S6-EA1P series |
| Dimensions (W × D × H) | 800 × 285 × 230 mm |
| Weight | 15 kg |
Note: The official datasheet is always leading for the correct technical specifications.
What is included in the Solis FlexHome-CB210A-L package?
| Component | Description |
|---|---|
| Low-voltage control module | Main BMS unit (FlexHome-CB210A-L) |
| Physical base | Mounting base for installation |
| Mounting bracket | 2× mounting brackets |
| Expansion bolts | 2× anchor bolts |
| Installation screws | 2× installation screws |
| B+ power harness | 2m positive power cable |
| B– power harness | 2m negative power cable |
| PCS communication cable | 2m communication cable |
| Ground lead | 2m grounding cable |
| Quick Assembly Manual | Quick installation guide |
| Product specification | Technical specification document |
| Warranty card | Warranty card |
| Packing list | Packing list document |
| Levelling instrument | Levelling tool |
Which Solis LV inverters are compatible with the FlexHome-CB210A-L?
The FlexHome-CB210A-L is validated for the following Solis LV hybrid inverter series: S6-EH1P(3–6)K-L-EU, S5-EH1P(3–6)K-L, S6-EH1P(3–10)K-L-PLUS and the S6-EA1P series. Compatibility depends on the exact inverter model and firmware version. Firmware and communication settings must be correctly configured. Always refer to the most current compatibility list in the datasheet before installation.
Is the FlexHome-CB210A-L mandatory for the FlexHome-L system?
Yes. The FlexHome-CB210A-L is the mandatory BMS controller for the FlexHome-(5–40)kWh-L system. Without this controller, the FlexHome-BAT5kWh-L battery modules cannot operate and safe system management is not possible. The BMS handles cell balancing, temperature protection, SOC monitoring and communication via CAN/RS485 with the inverter.
How does the FlexHome-CB210A-L support Time-of-Use optimisation?
As time-of-use energy pricing becomes more widespread across Europe, accurate real-time system control is increasingly important for financial optimisation. The FlexHome-CB210A-L provides precise SOC and power data to the inverter, enabling the system to charge the battery during low-tariff periods and discharge during peak-price windows. The actual financial benefit depends on your consumption profile, PV yield, energy contract and applicable grid tariffs. With a scalable system from 5 kWh to 40 kWh per stack, the FlexHome-L system is built for long-term returns.
View the complete collection on our SolisStorage home battery energy storage page.
