Solis FlexHome-CB50A-H BMS 50A HV controller

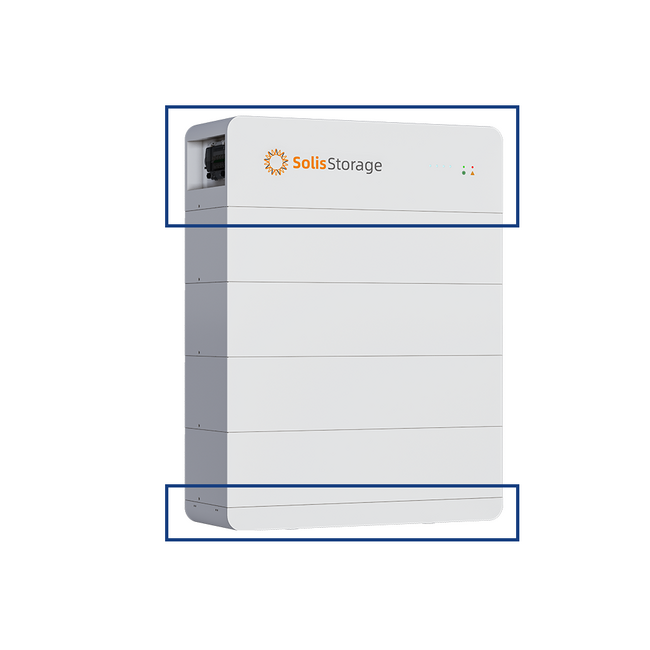

The Solis FlexHome-CB50A-H is the central high-voltage BMS controller for the FlexHome-(15–40)kWh-H energy storage system. This control module manages communication, system protection and charge/discharge control between battery modules and compatible Solis hybrid inverters. With 50A system current, a maximum power of 20 kW and CAN/RS485 integration, it is the mandatory control unit for reliable HV storage.
- High-voltage BMS controller: 50A charge and discharge control with 75A peak current (10s) and 20 kW max. power.
- CAN and RS485 communication: Seamless system integration with compatible Solis HV hybrid inverters.
- Integrated protection: DC breaker, DC overcurrent fuses, fire protection and explosion release valves.
- Mandatory system component: Required for correct control of all FlexHome-BAT5kWh-H battery modules.
- Comprehensive certification: IEC 62619, VDE 2510-50, UN 38.3, RoHS and REACH.
Suitable for
- New FlexHome-(15–40)kWh-H high-voltage home battery installations
- Installations with compatible Solis HV hybrid inverters (S6-EH3P series)
- Residential and light-commercial energy storage with scalable capacity from 15 kWh to 40 kWh per stack
- Systems requiring SOC monitoring, safety logic and controlled charge/discharge operation
- Installations requiring Time-of-Use optimisation and dynamic energy management
Solis FlexHome-CB50A-H — specifications and benefits
- Technical control centre: The BMS handles SOC monitoring, system communication, safety logic and controlled charge/discharge operation for all connected FlexHome-BAT5kWh-H modules.
- Scalable configuration: Combined with FlexHome-BAT5kWh-H modules, system capacity of 15 kWh to 40 kWh per stack is achievable — expandable via parallel connection.
- Time-of-Use optimisation: Supports dynamic energy management, system efficiency and improved long-term cost-of-ownership for demanding energy markets.
- Wide inverter compatibility: Validated for S6-EH3P(3–12)K-H, S6-EH3P(12–20)K-H, S6-EH3P(12–20)K-ND-H and S6-EH3P(8–12)K-LV-ND-H.
| Property | Value |
|---|---|
| Brand & model | SolisStorage FlexHome-CB50A-H |
| MPN | FlexHome-CB50A-H |
| Type | High-voltage control module / BMS |
| System series | FlexHome-(15–40)kWh-H |
| Max. charge/discharge current | 50A |
| Max. peak current | 75A (10s) |
| Max. charge/discharge power | 20 kW |
| Communication | CAN / RS485 |
| Compatible inverters | S6-EH3P(3–12)K-H, S6-EH3P(12–20)K-H, S6-EH3P(12–20)K-ND-H, S6-EH3P(8–12)K-LV-ND-H |
| Protection | DC breaker, DC overcurrent fuses, fire protection, explosion release valves |
| Certifications | IEC 62619, IEC 63056, ISO13849, VDE 2510-50, UN 38.3, IEC 61000-6-1/2/3/4, IEC 60730-1, IEC/EN 62477-1:2022, IEC 60529, IEC 62040, RoHS, REACH |
Note: The official datasheet is always leading for the correct technical specifications.
What is included in the Solis FlexHome-CB50A-H package?
| Component | Quantity |
|---|---|
| High-voltage control module | 1 |
| Physical base | 1 |
| Mounting bracket | 2 |
| Expansion screws | 2 |
| Product installation screws | 2 |
| B+ to PCS power harness, 2m | 1 |
| B– to PCS power harness, 2m | 1 |
| PCS communication harness, 2m | 1 |
| Ground lead, 2m | 1 |
| Quick Assembly Manual | 1 |
| Product specification | 1 |
| Warranty card | 1 |
| Packing list | 1 |
| Levelling instrument | 1 |
Which Solis inverters are compatible with the FlexHome-CB50A-H?
The FlexHome-CB50A-H is validated for the following Solis HV hybrid inverter series: S6-EH3P(3–12)K-H, S6-EH3P(12–20)K-H, S6-EH3P(12–20)K-ND-H and S6-EH3P(8–12)K-LV-ND-H. Compatibility depends on the exact inverter model and firmware version. Always refer to the most current compatibility list in the datasheet before installation.
Is the FlexHome-CB50A-H mandatory for the FlexHome system?
Yes. The FlexHome-CB50A-H is the mandatory high-voltage control module for the FlexHome-(15–40)kWh-H system. Without this BMS, the FlexHome-BAT5kWh-H battery modules cannot be operated safely. The BMS handles cell balancing, temperature protection, SOC monitoring and communication via CAN/RS485 with the inverter.
How does the FlexHome-CB50A-H support Time-of-Use optimisation?
As time-of-use energy pricing becomes more widespread across Europe, accurate real-time system control is increasingly important for financial optimisation. The FlexHome-CB50A-H provides precise SOC and power data to the inverter, enabling the system to charge the battery during low-tariff periods and discharge during peak-price windows. The actual financial benefit depends on your consumption profile, PV yield, energy contract and applicable grid tariffs.
