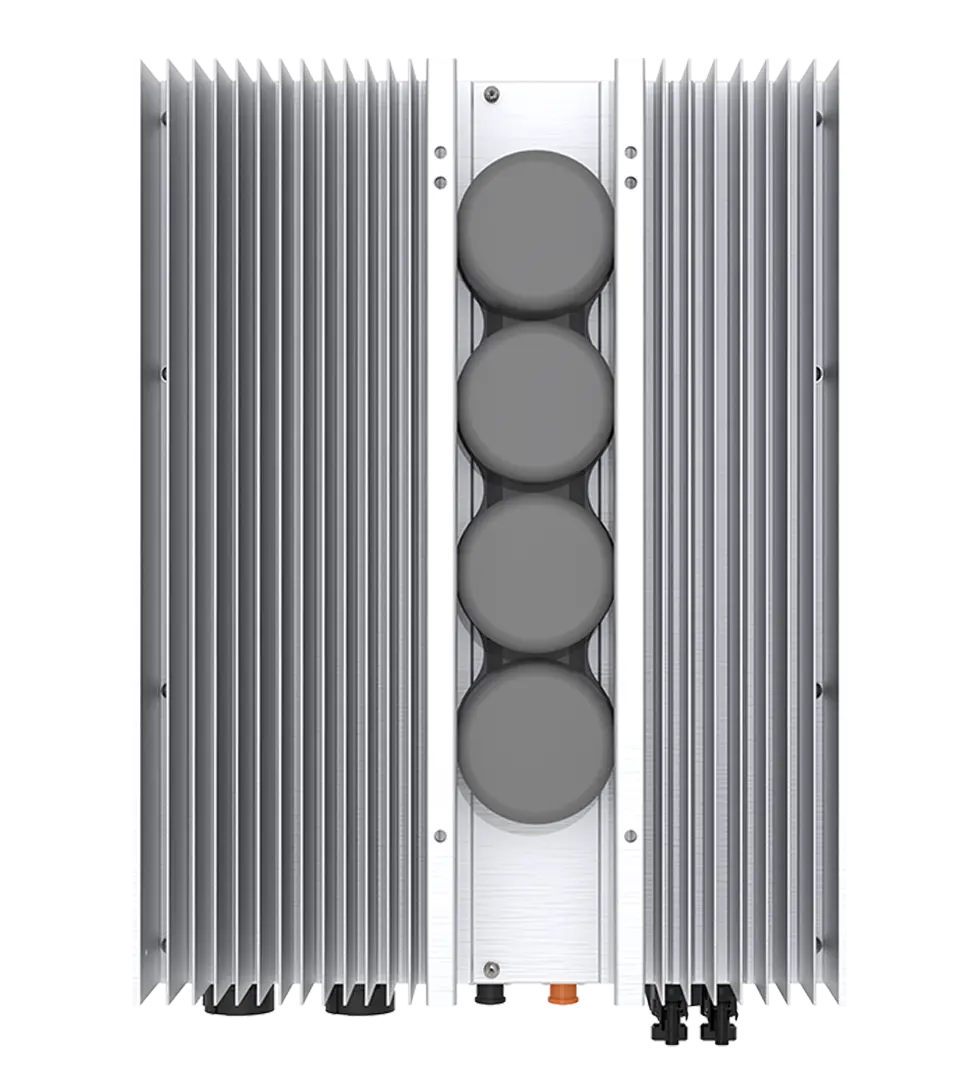

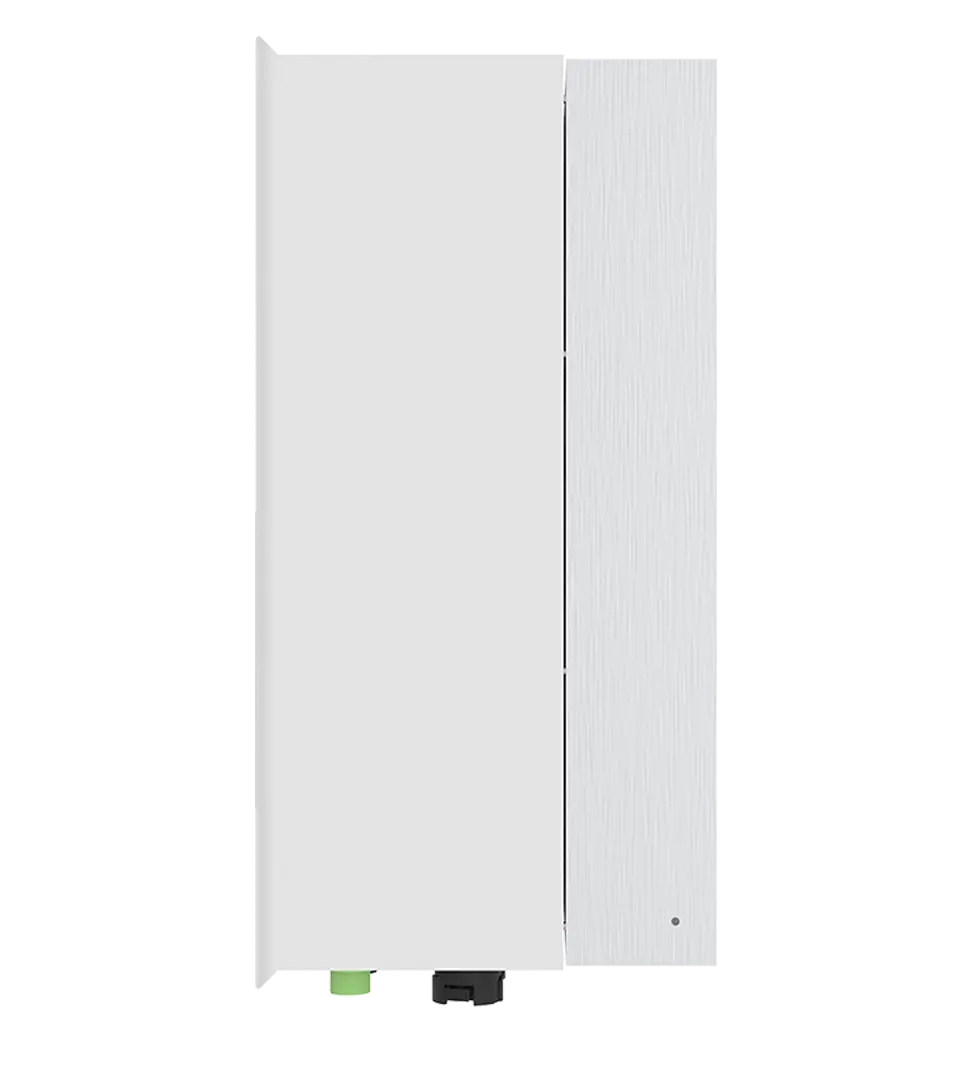

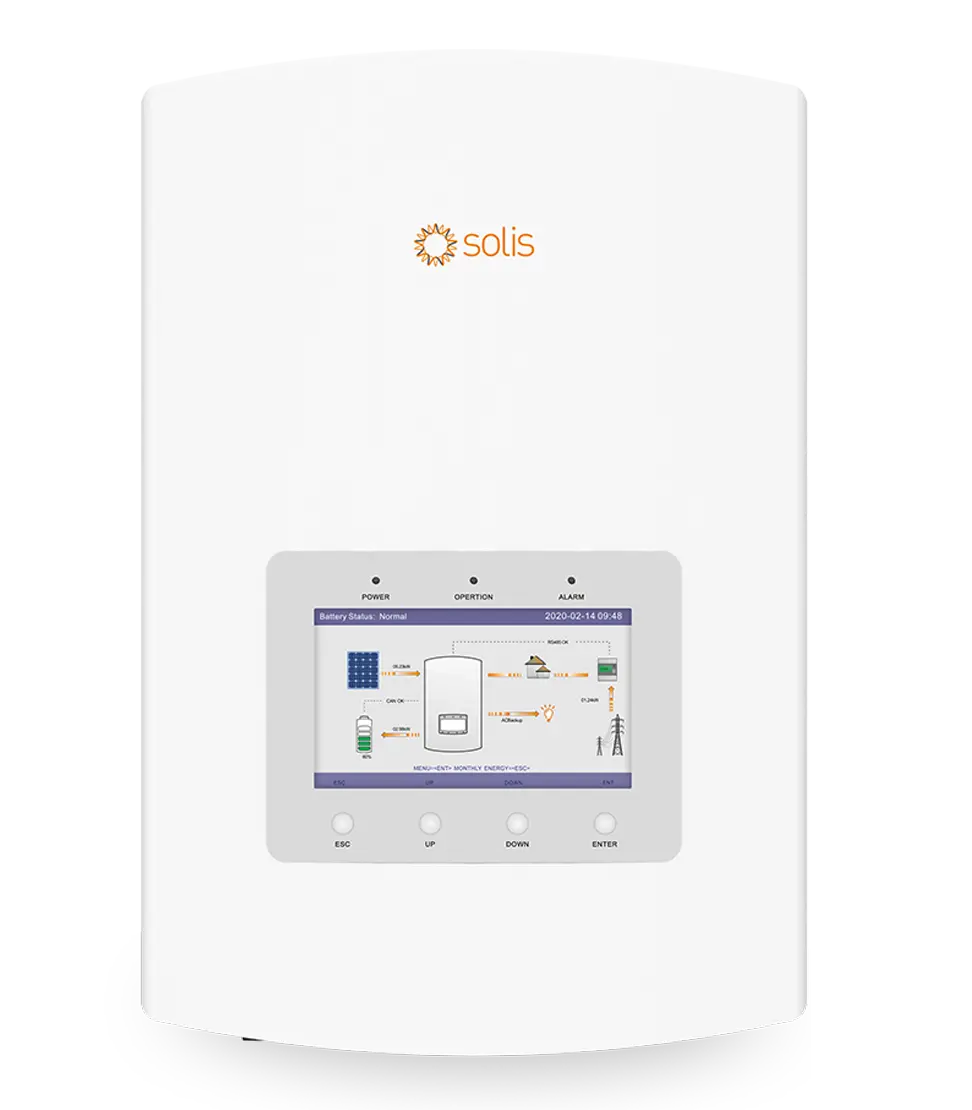

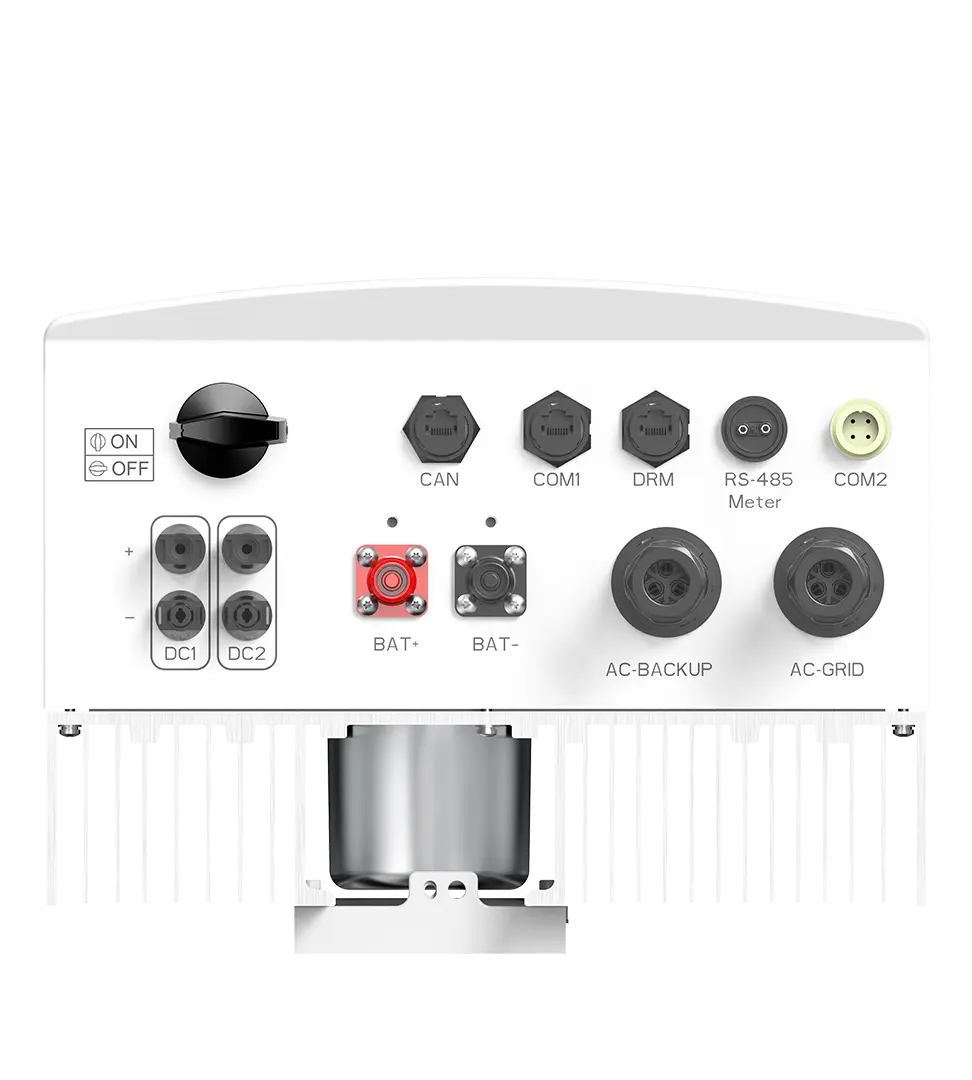

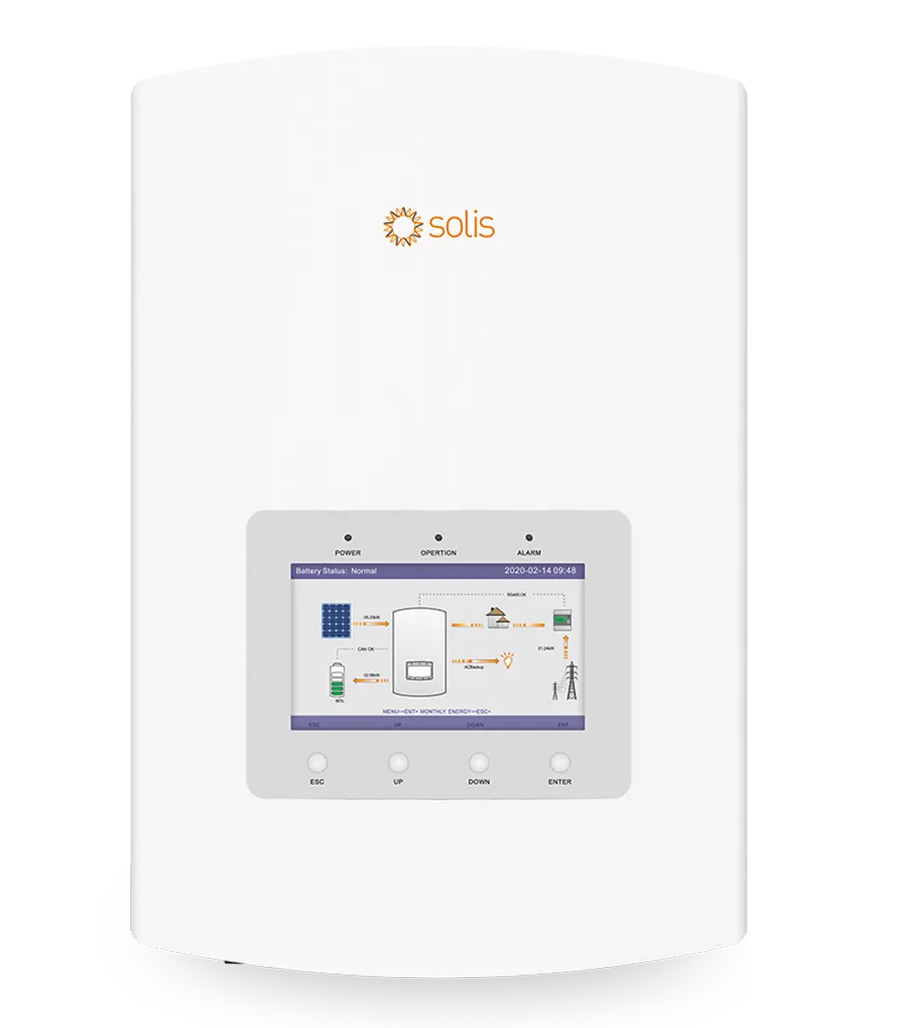

Solis S5-EH1P3.6K-L 1-phase Hybrid Inverter with Backup

The Solis S5-EH1P3.6K-L is a powerful 1-phase hybrid inverter for low voltage batteries. This compact solution enables the storage and return of solar energy, with support for back-up functionality.

Key Features:

✔ Battery compatibility: 42–58V

✔ Backup output: 3.6 kW (4.0 kVA peak)

✔ Battery charging capacity: max. 3.6 kW / 80 A

✔ 2 MPPTs for optimal yield

Technical specifications:

• Max. PV input: 5.7 kW

• Weight: 18.3 kg

• Dimensions: 333 × 505 × 249 mm

• Protection degree: IP65

Datasheet download
