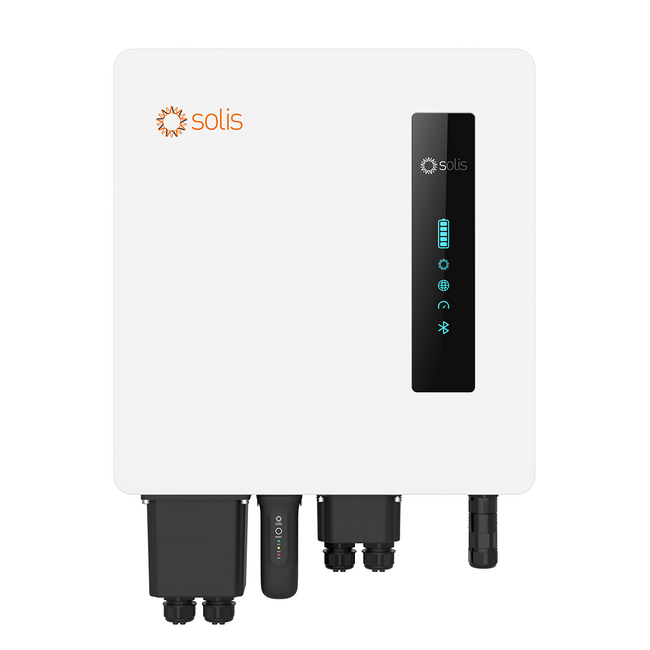

Solis S6-EA1P3.6K-L 3.6kW 1-phase Low Voltage Charger - 5-year Warranty

The Solis S6-EA1P3.6K-L is a single-phase AC-coupled low-voltage inverter, specially designed for residential energy storage. It offers a maximum charging capacity of 3.6 kW and supports low voltage Li-ion batteries of various brands. The smart functionality, natural cooling and IP66 protection make this inverter ideal for indoor and outdoor use.

Key Features:

✔ Max. charging power: 3.6 kW / discharging power: 3.9 kW

✔ Max. charge/discharge current: 75 A

✔ RS485 & CAN communication, optional Wi-Fi / LAN

✔ IP66 protection class and natural convection cooling

Technical specifications:

• Mains voltage: 230V | Phase: 1-phase

• Max. output current: 16.4 A

• Efficiency: >93.5%

• Dimensions: 440 × 465 × 192 mm

• Weight: 24.5 kg

Datasheet download
