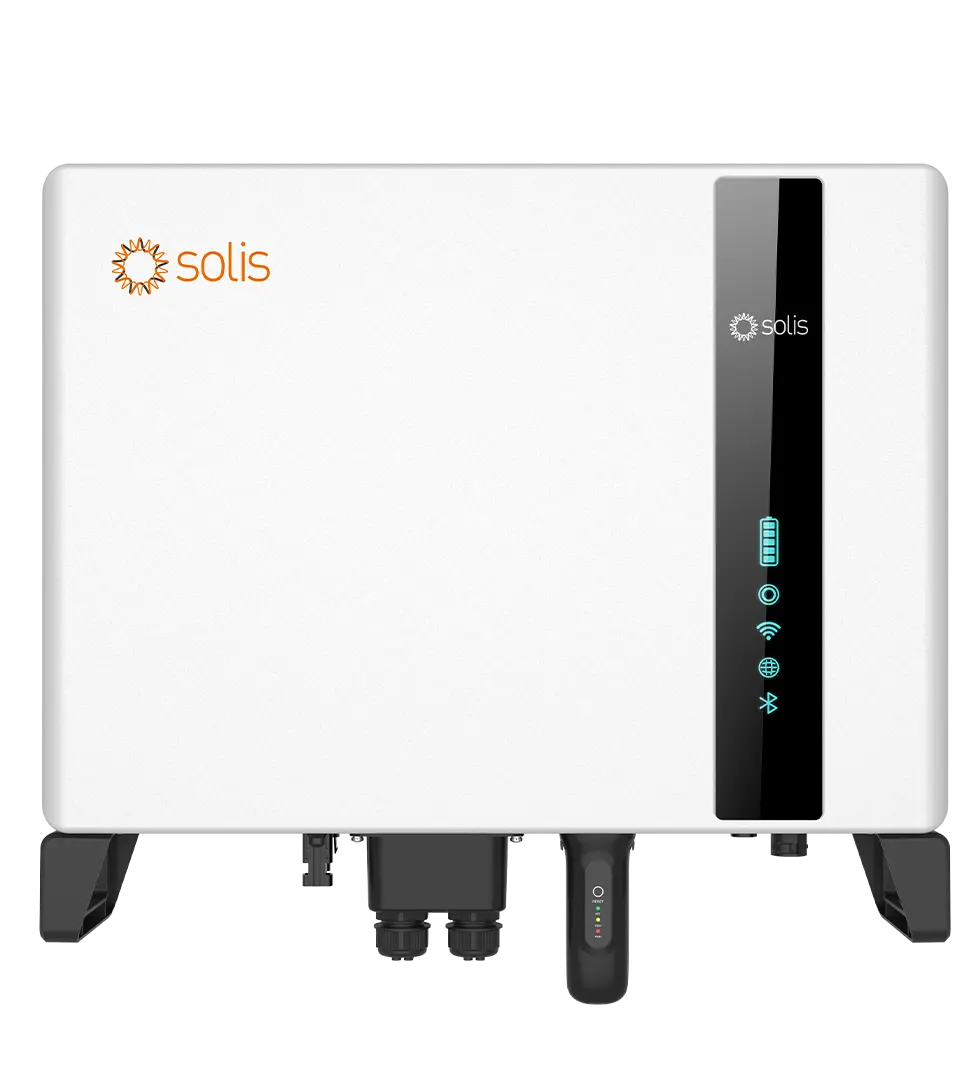

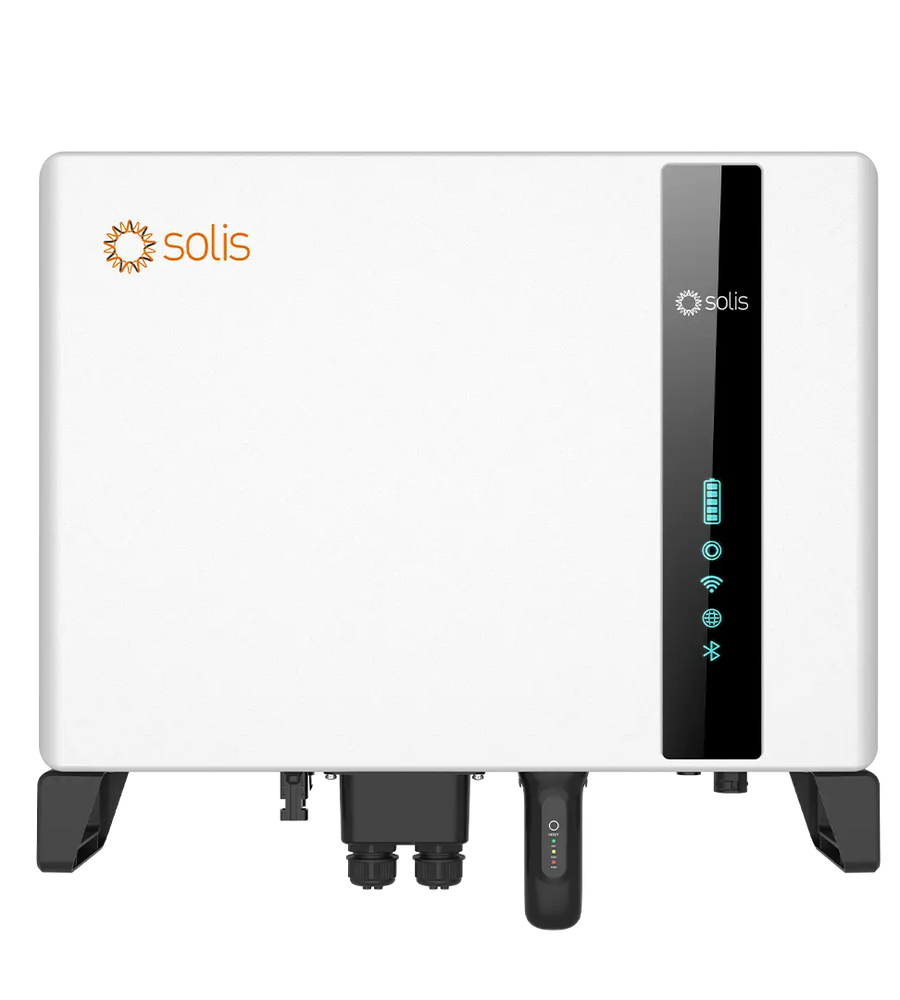

Solis-S6-EA3P10KAA-NV-ND-H 10kW 3-phase High Voltage Charger
Couldn't load pickup availability
The Solis S6-EA3P10KAA-NV-ND-H is a three-phase high-voltage AC-coupled inverter with a rated output of 10 kW, designed for residential and light-commercial energy storage projects where an existing PV installation is extended with battery storage. The inverter works with high-voltage Li-ion batteries in the voltage range of 120–600 V DC and communicates via CAN or RS485. Thanks to its transformerless topology, natural cooling and IP66 protection, the system is suitable for both indoor and outdoor installation. The inverter supports Time-of-Use tariffs, peak shaving and up to 6 configurable charge/discharge time slots.
- 10 kW AC-coupled output: max. charge/discharge current 50 A, max. input power 15 kW — suitable for three-phase residential and light-commercial applications.
- High-voltage battery support: battery voltage range 120–600 V DC, CAN/RS485 communication with multiple Li-ion battery brands.
- Peak shaving and Time-of-Use: up to 6 configurable charge/discharge time slots, VPP remote control and remote upgrade via dual RS485 port.

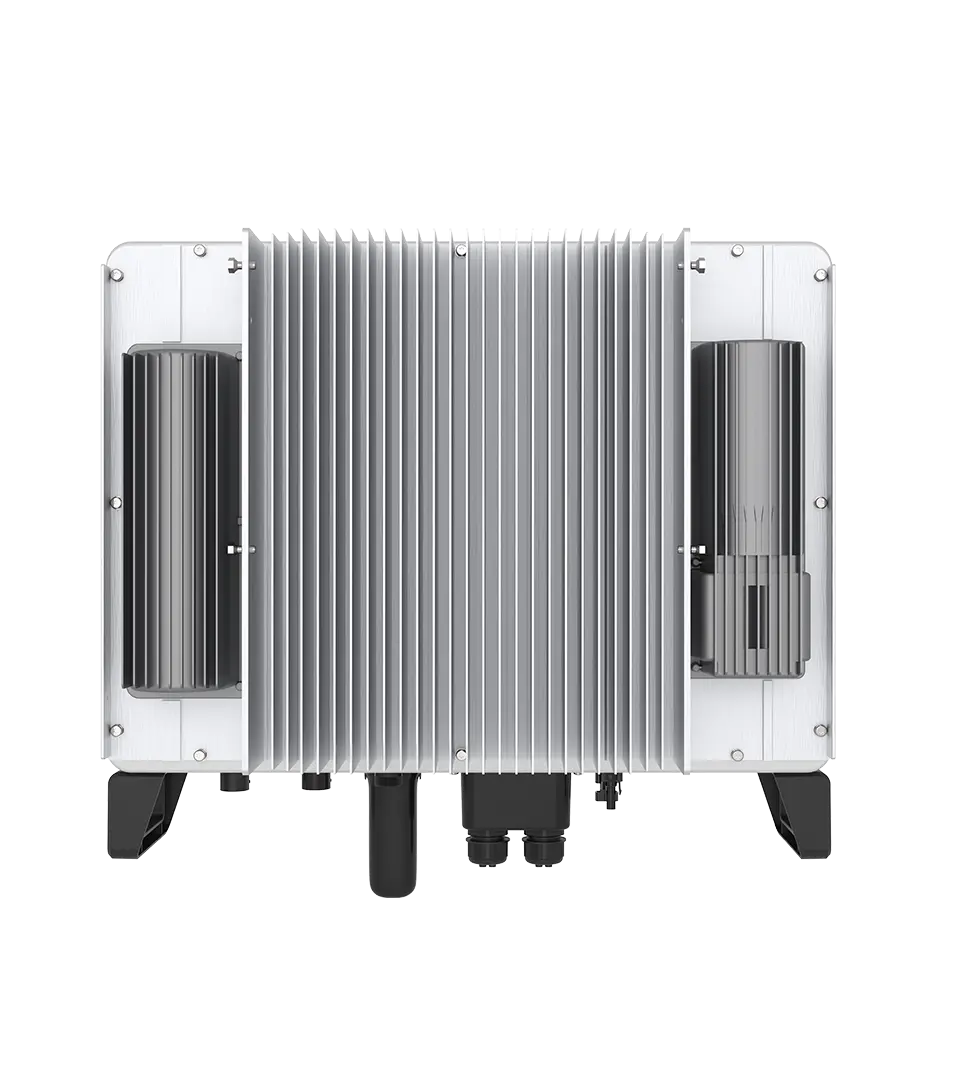

- IP66 — indoor and outdoor: transformerless topology, natural cooling, operating temperature −25 °C to +60 °C (derating above 45 °C).

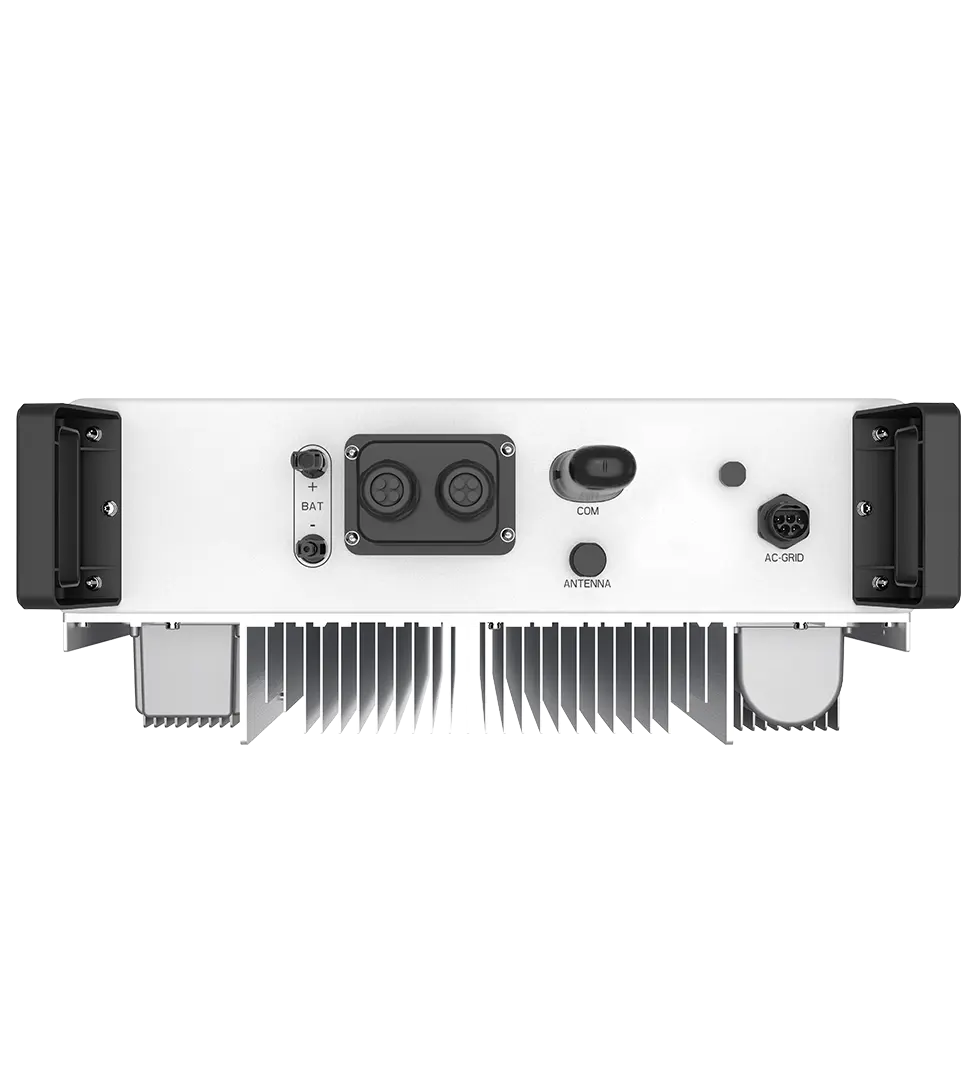

- Fast installation: pre-made battery, meter and CAN cabling included; quick-connect plugs for AC and battery connection.
- Monitoring via Bluetooth + App: built-in Bluetooth, LED indicators, optional Wi-Fi, LAN or 4G via Solis data logger.
- Certified: VDE-AR-N 4105, EN 50549-1, IEC/EN 62109-1/2, IEC/EN 61000-6-1/3 — suitable for the Netherlands, Belgium, Germany and other EU markets.
AC coupling: adding battery storage to an existing PV installation
The S6-EA3P10KAA-NV-ND-H is specifically designed for AC-coupled retrofit projects: the existing grid-tied PV inverter is retained and connected to the Solis via the AC input. The Solis then manages the battery, energy flows and — when correctly configured — export limitation. In addition to the AC-coupled installation, new PV strings can be added via external DC inverters, provided the electrical values remain within the specifications.
The included Eastron SDM630MCT three-phase energy meter (with CT) is required for correct self-consumption control, export limitation and monitoring. During installation, verify the meter position, measurement direction, phase sequence and RS485 addressing.
| Parameter | Value |
|---|---|
| Model | S6-EA3P10KAA-NV-ND-H |
| Rated output power | 10 kW |
| Max. apparent output power | 10 kVA |
| Rated grid voltage | 3/N/PE, 380 V / 400 V |
| Grid voltage range | 320–460 V |
| Rated grid frequency | 50 Hz / 60 Hz |
| Rated output current | 15.2 A (380 V) / 14.4 A (400 V) |
| Max. input power (AC) | 15 kW |
| Rated input current | 22.8 A |
| Power factor | >0.99 (0.8 leading – 0.8 lagging) |
| THD | <3% |
| Battery type | Li-ion (high voltage) |
| Battery voltage range | 120–600 V DC |
| Max. charge/discharge power | 10 kW |
| Max. charge/discharge current | 50 A |
| Battery Isc | 80 A |
| Battery communication | CAN / RS485 |
| EU efficiency | 97.51% |
| Max. efficiency battery → AC | 97.50% |
| Self-consumption (night) | <25 W |
| Dimensions (W × H × D) | 600 × 500 × 230 mm |
| Weight | 26.9 kg |
| Topology | Transformerless |
| Cooling | Natural convection |
| Protection rating | IP66 |
| Operating temperature | −25 °C to +60 °C (>45 °C derating) |
| Relative humidity | 0–95% |
| Max. installation altitude | 4,000 m |
| Noise level | <46.9 dB(A) |
| Display | LED indicators + Bluetooth + App |
| Communication | CAN, RS485 (optional: Wi-Fi, LAN, 4G) |
| Warranty | 5 years (extendable to 20 years) |
| Grid connection standards | VDE-AR-N 4105, EN 50549-1, EN50549SW, EN50549FI, DK1 & DK2 |
| Safety / EMC standards | IEC/EN 62109-1/2, IEC/EN 61000-6-1/3 |
What is included in the Solis S6-EA3P10KAA-NV-ND-H package?
| Item | Quantity |
|---|---|
| Solis S6-EA3P10KAA-NV-ND-H inverter | 1 |
| Wall mounting bracket (back plate) | 1 |
| Fixing screws M4×12 | 4 |
| AC grid connector | 1 |
| Battery connector | 1 |
| CAN cable (3 metres, pre-made) | 1 |
| RJ45 connectors | 6 |
| Eastron SDM630MCT energy meter (with CT) | 1 |
| CT clamps | 3 |
| S2-WL-ST Wi-Fi data logger | 1 |
| Bluetooth antenna | 1 |
| Installation manual | 1 |
Which batteries are compatible with the Solis S6-EA3P10KAA-NV-ND-H?
The inverter supports high-voltage Li-ion batteries in the voltage range of 120–600 V DC via CAN or RS485. Please consult the official Solis Battery Matching Compatibility List for the current list of supported battery brands and models. Before commissioning, verify the exact battery model, BMS version, firmware and communication cable, and set the battery model correctly via the Soliscloud app.
How does peak shaving work with the Solis S6-EA3P10KAA-NV-ND-H?
In peak shaving mode, the inverter limits grid import power to a configurable maximum value (P_max). The system charges the battery to a set peak SOC and discharges when consumption exceeds the threshold. If the combined discharge capacity and P_max are insufficient for the load, the threshold is temporarily exceeded to support the load. In addition to peak shaving, the inverter supports Time-of-Use tariffs with up to 6 configurable charge/discharge time slots and VPP remote control.
What are the installation requirements for the Solis S6-EA3P10KAA-NV-ND-H?
Installation by certified electricians only, in accordance with applicable national standards. The inverter must be mounted vertically (max. ±5° deviation) on a load-bearing wall or structure. Maintain a minimum clearance of 200 mm around the inverter for ventilation. Avoid direct sunlight on the inverter. Battery cable cross-section: 10 mm² / 8 AWG. AC cable cross-section: 6 mm², strip length 7 mm. Earth connection via OT cable lug M4, torque 2 N·m. Please consult the installation manual for all installation requirements.
Is the Solis S6-EA3P10KAA-NV-ND-H suitable for installation in Belgium?
Before offering and installing this product in Belgium, verify that the exact model type and applicable firmware version are listed on the current Synergrid C10/26 list. The inverter is certified in accordance with VDE-AR-N 4105, EN 50549-1 and IEC/EN 62109-1/2. A datasheet alone is not proof of approval in Belgium — consult the current Synergrid list and your grid operator.
