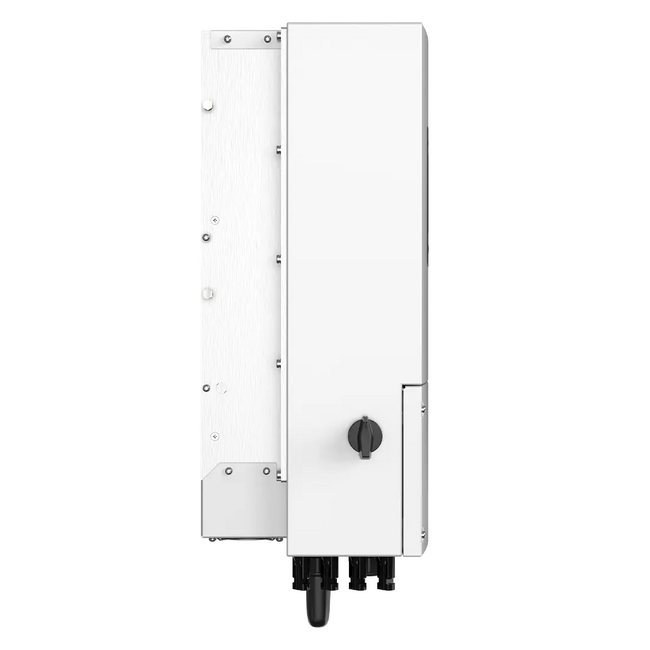

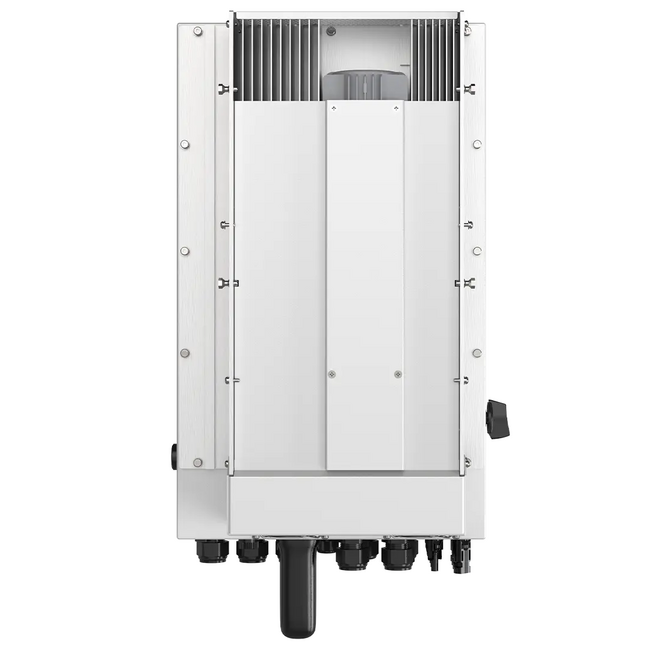

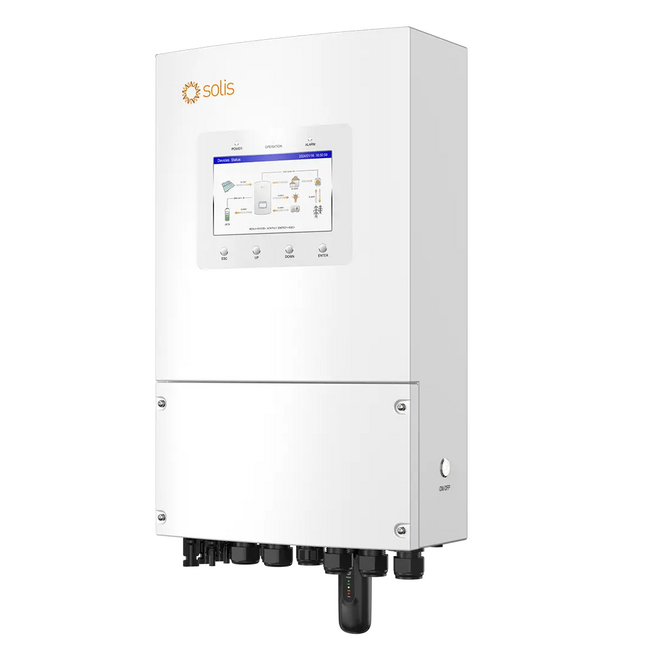

Solis S6-EH1P5K-L-PLUS Hybrid Inverter Single-Phase

€932,91 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–14 business days (EU)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Solis S6-EH1P5K-L-PLUS redefines residential energy storage with an uncompromising focus on flexibility and efficiency. This 5kW single-phase hybrid inverter is specifically designed for high-power solar panels thanks to its dual 16A MPPT inputs. This allows you to effortlessly integrate the latest generation of panels (e.g., Jinko or Longi) into a future-proof system. Thanks to compatibility with 48V Low Voltage batteries (including Dyness, Pylontech, and BYD), you maximize self-consumption and minimize grid reliance.

  • High Power Input: 16A current per MPPT for modern high-output panels.
  • Standard Wifi: Includes datalogger for immediate system monitoring.
  • UPS-Grade Back-up: Switchover time < 4ms for uninterrupted power.
  • Generator Support: Integrated control interface for external generators.
  • Intelligent BMS: 112A charge/discharge capacity for rapid cycling.

Strategic Investment in Energy Security

In a volatile energy market, control is essential. The S6-EH1P5K-L-PLUS acts as a central Energy Hub that not only converts solar energy but also intelligently manages flow between grid, battery, and backup loads. With a maximum charge/discharge power of 5kW (112A) and a peak load capability of 10kVA (10s) in off-grid mode, this system guarantees operational reliability. The passive cooling (fanless) ensures whisper-quiet operation and a longer service life, directly contributing to a lower Levelized Cost of Energy (LCOE).

Note: For the backup function to work correctly, precise configuration of the 'Critical Loads' circuit is required. Consult the manual for the correct AC wiring and fuse ratings.
Feature Value
Brand & Model Solis S6-EH1P5K-L-PLUS
Rated AC Power 5,000 W
Max. PV Input Power 8,000 W (Usable)
MPPT Range 90 - 435 V
Max. Input Current 16 A / 16 A
Max. Charge/Discharge Current 112 A
Dimensions (W x H x D) 335 × 560 × 227 mm
Weight 21.6 kg
Protection Class IP66
Download Datasheet Download Manual
What is included in the box?

The package contains the essential installation materials.

  • Solis S6-EH1P5K-L-PLUS Inverter
  • Wall mounting bracket
  • DC connectors (MC4) and AC plugs
  • Wifi/Datalogger stick
  • CT clamps and communication cables
Which batteries are compatible?

The inverter works with 48V Low Voltage (LV) batteries. It is compatible with leading brands such as Pylontech (US2000C/US3000C/US5000), BYD (LVS), and Dyness, provided they are connected via CAN/RS485 communication.

Does the backup power work automatically?

Yes, thanks to the integrated UPS function, the system switches to battery power in less than 4 milliseconds in the event of a grid failure. This ensures that critical devices (such as refrigerators and modems) continue to operate without interruption.

View more products in our Solis Collection.
