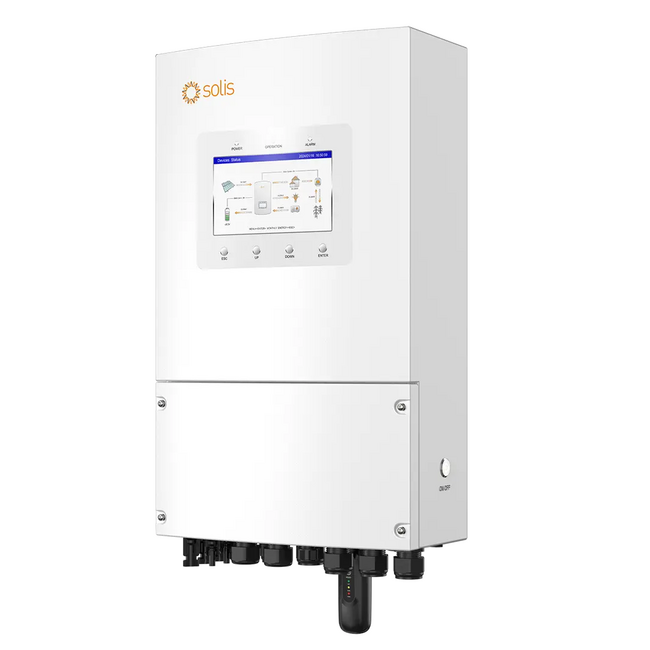

• S6-EH1P6K-L-PLUS-Fr

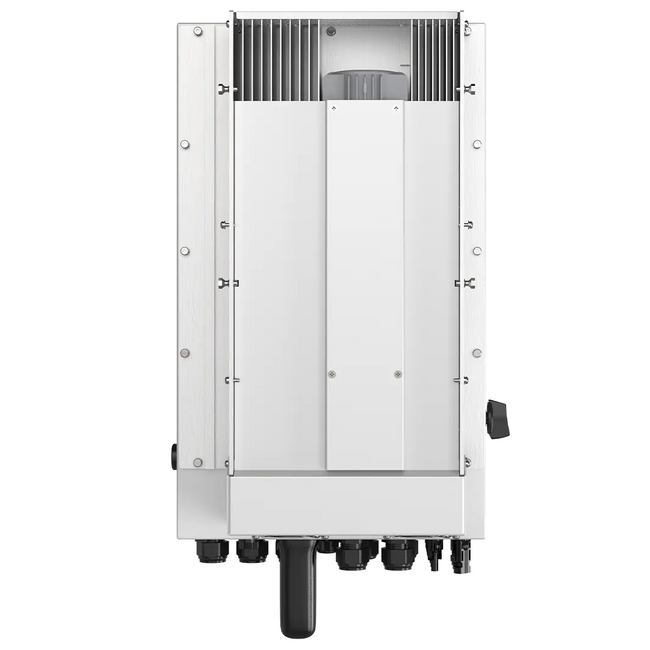

  • S6-EH1P6K-L-PLUS-Rr

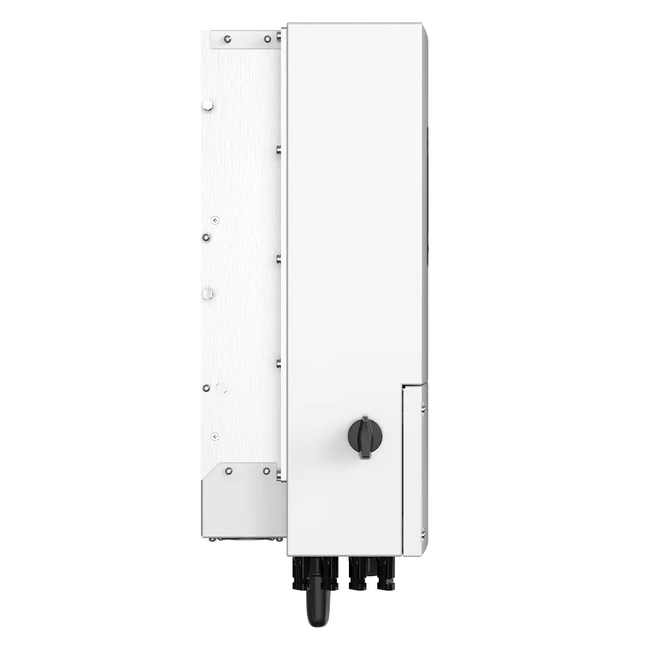

  • S6-EH1P6K-L-PLUS-Side
1 3

Solis S6-EH1P6K-L-PLUS Hybrid Inverter 1-Phase

€965,58 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–14 business days (EU)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Solis S6-EH1P6K-L-PLUS redefines residential energy storage with an uncompromising focus on flexibility and yield. This 6kW single-phase hybrid inverter is specifically designed for high-power solar panels thanks to its dual 32A MPPT inputs. This allows you to effortlessly integrate the latest generation of panels (up to 12kWp array) into a future-proof system. With compatibility for 48V Low Voltage batteries (including Dyness, Pylontech, and BYD), you maximize self-consumption and minimize grid dependency.

  • High Power Input: 32A current per MPPT for modern high-power panels.
  • UPS-Grade Back-up: Switchover time < 10ms for uninterrupted power.
  • Generator Support: Integrated control for external generators.
  • Intelligent BMS: 6-stage charge/discharge management for longer battery life.

Strategic Investment in Energy Security

In a volatile energy market, control is essential. The S6-EH1P6K-L-PLUS acts as a central Energy Hub that not only converts solar energy but also smartly switches between grid, battery, and backup loads. With a maximum charge/discharge power of 6kW (135A) and a peak load capacity of 12kVA (10s) in off-grid mode, this system guarantees operational reliability. Passive cooling (fanless) ensures whisper-quiet operation and a longer service life, contributing directly to a lower Levelized Cost of Energy (LCOE).

Note: For correct operation of the back-up function, precise configuration of 'Critical Loads' in the distribution board is required. Consult the manual for correct AC wiring and fuse ratings.
Feature Value
Brand & Model Solis S6-EH1P6K-L-PLUS
Rated AC Power 6,000 W
Max. PV Input Power 9,600 W (Usable) / 12kW (Array)
MPPT Range 90 - 435 V
Max. Input Current 32 A / 32 A
Battery Type Low Voltage (40-60 V) Li-ion / Lead-acid
Dimensions (W x H x D) 335 × 560 × 227 mm
Protection Class IP66
Download Datasheet Download Manual
What is included in the box?

The box contains the essential installation materials.

  • Solis S6-EH1P6K-L-PLUS Inverter
  • Wall mounting bracket
  • DC connectors (MC4) and AC plugs
  • Wifi/Datalogger stick (Standard included)
  • CT clamps and communication cables
Which batteries are compatible?

The inverter works with 48V Low Voltage (LV) batteries. It is compatible with leading brands such as Pylontech (US2000C/US3000C/US5000), BYD (LVS), and Dyness, provided they are connected via CAN/RS485 communication.

Does the backup power supply work automatically?

Yes, thanks to the integrated UPS function, the system switches to battery power in less than 10 milliseconds in the event of a power failure. This ensures critical devices (such as refrigerators and modems) continue to run without interruption.
