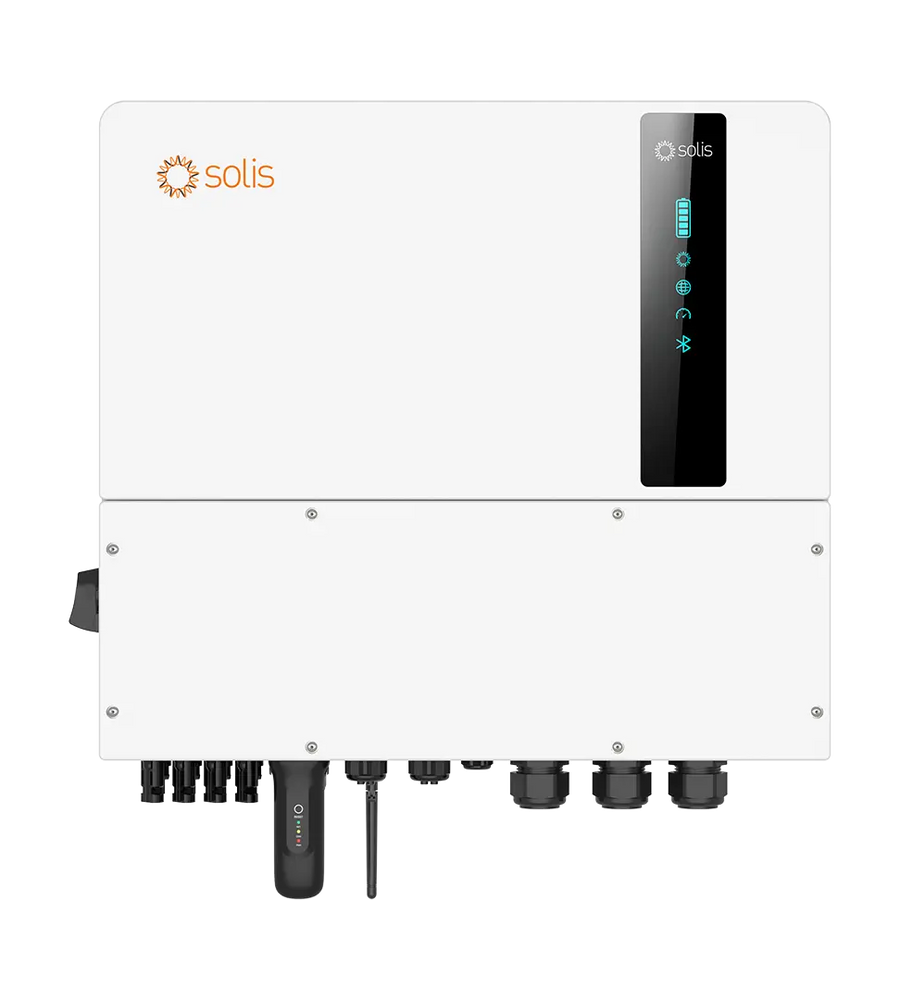

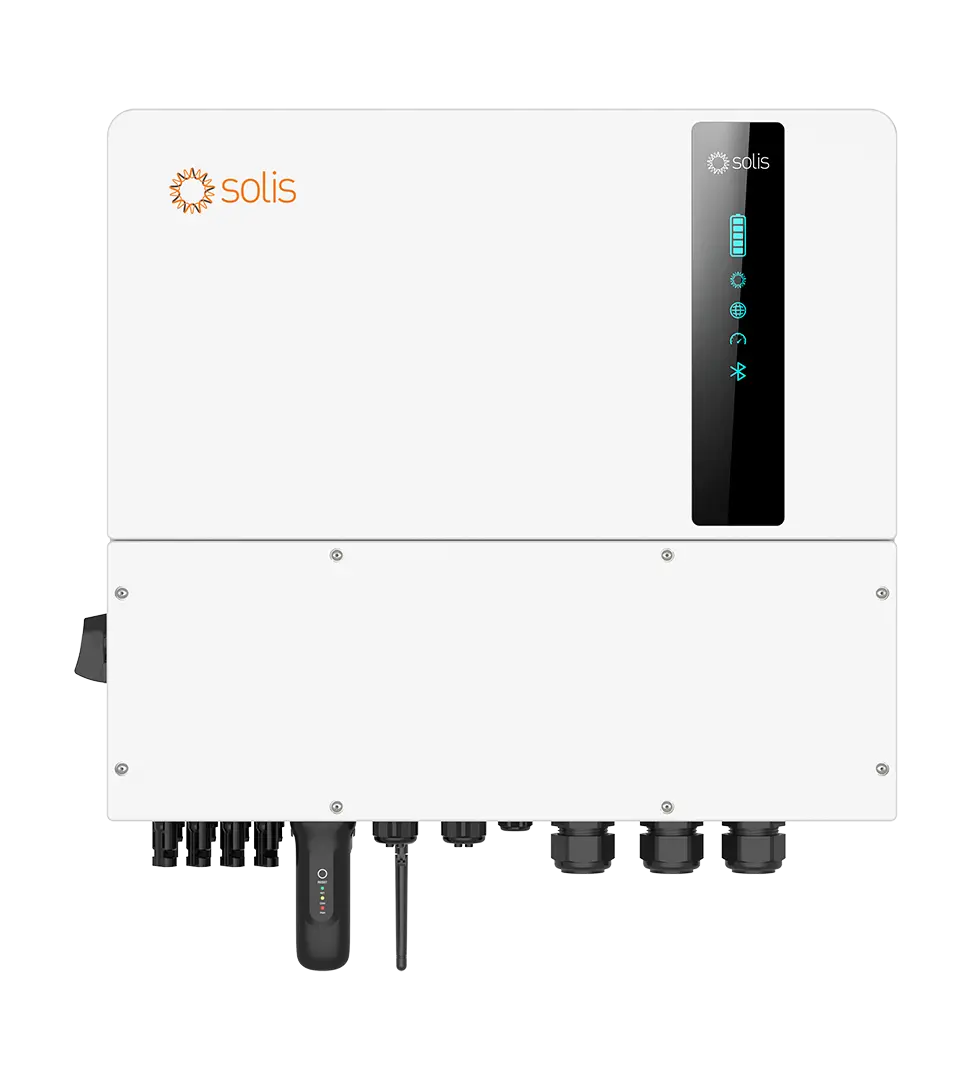

• Solis_S6-EH3P10K-LV-ND-H_Fr

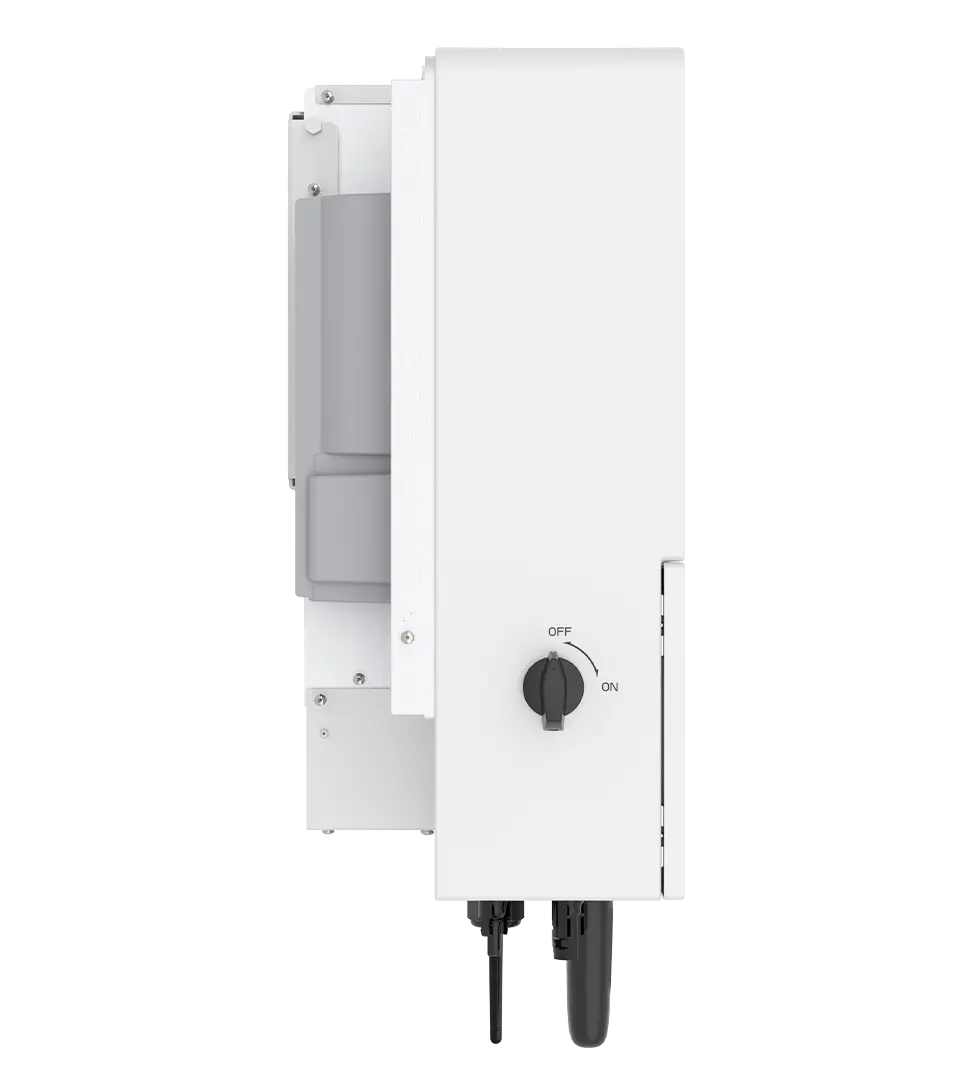

  • Solis_S6-EH3P10K-LV-ND-H_Side

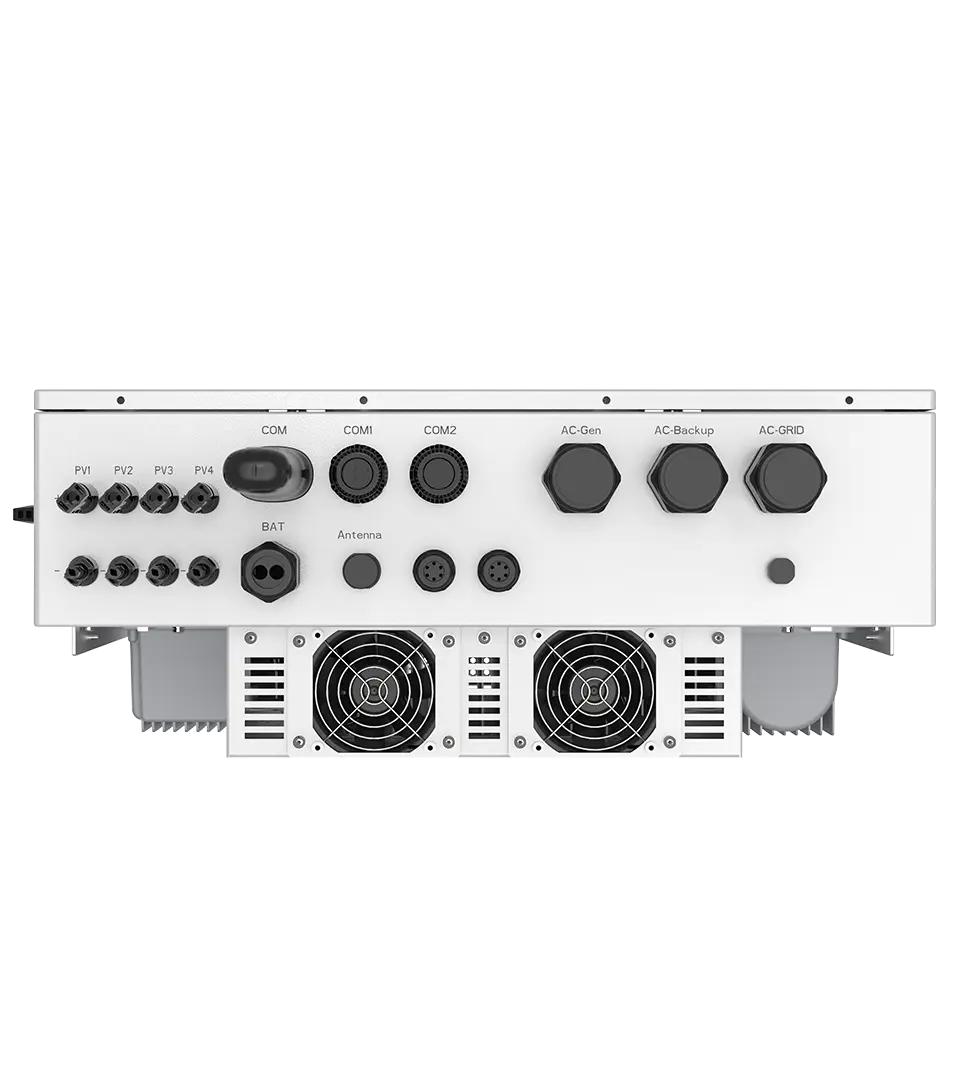

  • Solis_S6-EH3P10K-LV-ND-H_Bt

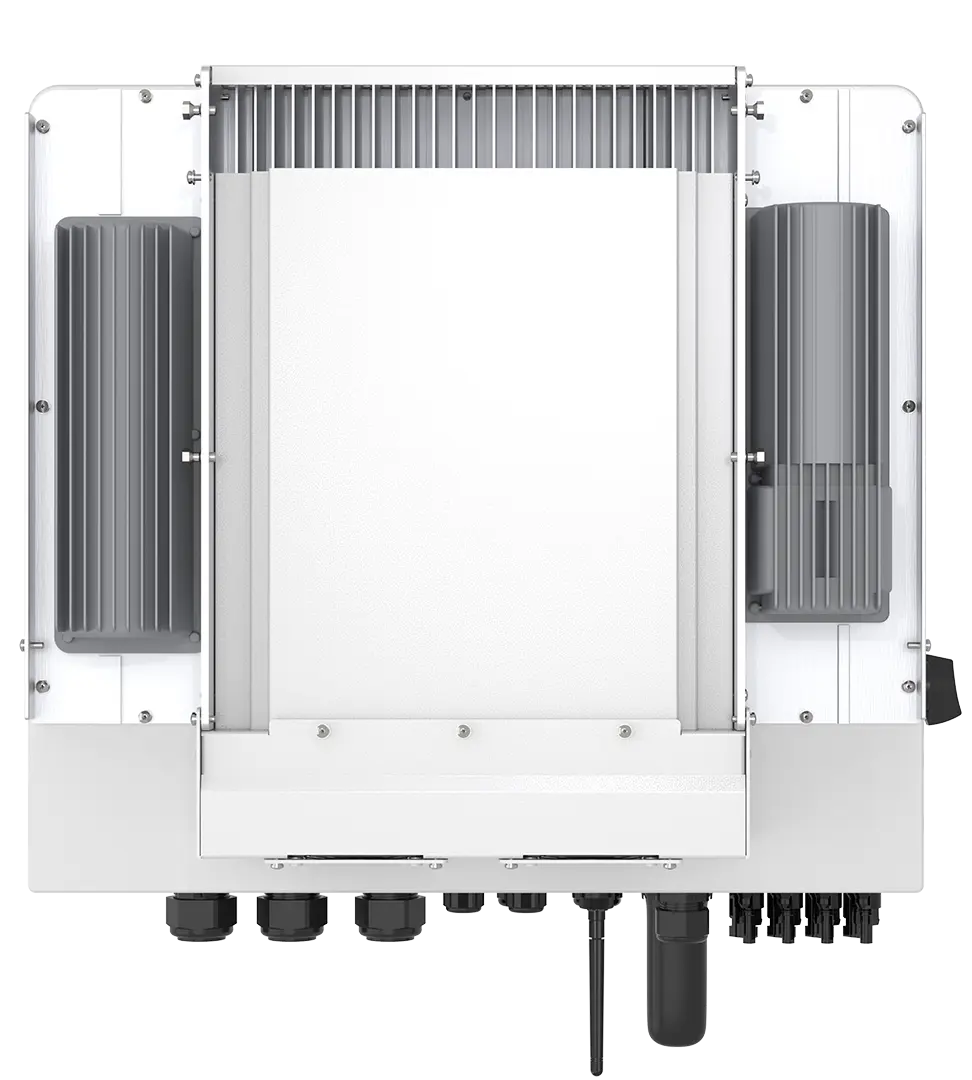

  • Solis_S6-EH3P10K-LV-ND-H_Rr

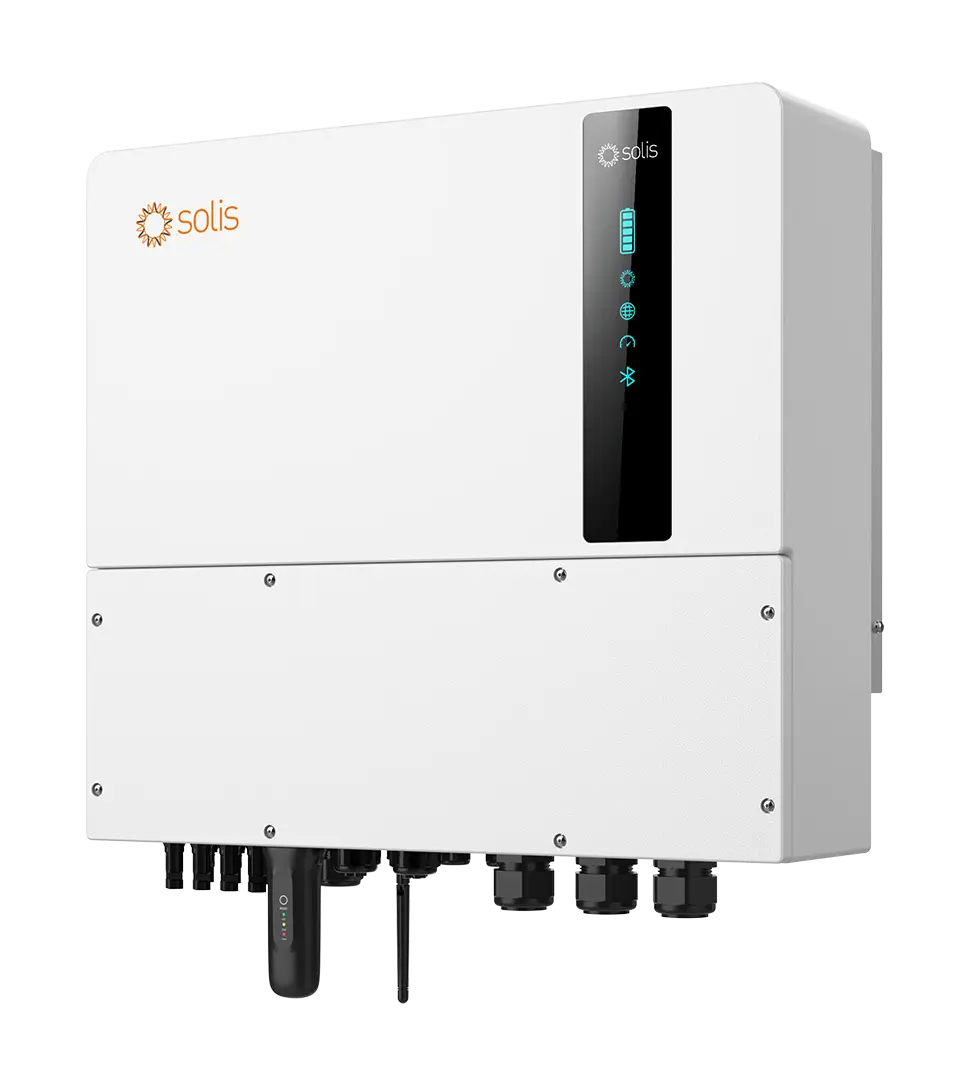

  • Solis_S6-EH3P10K-LV-ND-H_Lh
1 5

Solis S6-EH3P10K-LV-ND-H 10kW Three-Phase Hybrid Inverter (3x230V)

€2.110,24 incl. 21% VAT
Shipping calculated at checkout.
Out of stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–7 business days (NL/BE)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Solis S6-EH3P10K-LV-ND-H is a three-phase hybrid inverter with a rated output power of 10.00 kW, specifically engineered for 3×230V grid configurations without a neutral conductor. With four independent MPPT trackers, support for phase imbalance control and a peak efficiency of 97.50%, this system delivers maximum flexibility for residential projects where standard 400V solutions are technically not applicable.

  • 10.00 kW rated output power: With support for 16.00 kWp DC input (160% oversizing) and 4 independent MPPT trackers.
  • Phase imbalance control: Up to 100% unbalanced output — up to 40% of rated power assignable per phase.
  • Backup transfer time <10ms: Critical loads remain fully operational during grid outages.
  • IP66-certified: Peak efficiency of 97.50% in a robust outdoor enclosure.

Suitable for

  • Residential projects on 3×230V grid configurations without a neutral conductor
  • Installations with phase imbalance where a standard 400V grid is unavailable
  • Hybrid systems with high-voltage batteries (120V – 800V) from BYD or Pylontech
  • Installations with high PV capacity via 160% oversizing (16.00 kWp)
  • Systems requiring backup power with fast transfer switching (<10ms)

Solis S6-EH3P10K-LV-ND-H — specifications and benefits

  • Phase imbalance control: Up to 100% unbalanced output — essential for complex grid environments without a neutral conductor and for maximum stability per phase.
  • Peak efficiency 97.50%: Minimises conversion losses for optimal system efficiency.
  • CAN and RS485 communication: Seamless integration with high-voltage battery systems from BYD and Pylontech.
  • Time-of-Use optimisation: Dynamic pricing integration and parallel operation of up to 6 units significantly lowers the Total Cost of Ownership.
Feature Value
Brand & model Solis S6-EH3P10K-LV-ND-H
Rated AC output 10.00 kW
Max. PV input 16.00 kWp (160% oversizing)
Max. DC input voltage 1000V
Peak efficiency 97.50%
MPPT trackers / strings 4 / 4
Backup transfer time <10ms
Battery voltage range 120V – 800V
Grid configuration 3×230V (phase-to-phase, no neutral conductor)
Protection rating IP66
Operating temperature −25°C to +60°C
Dimensions (W × D × H) 563 × 235 × 546 mm
Weight 32.6 kg
Safety standards IEC 62109-1/-2, EN 50549
Important, grid configuration must be verified before installation: This "ND-H" model is exclusively suitable for 3×230V (phase-to-phase) grids without a neutral conductor and must not be operated on standard 400V three-phase electrical infrastructures. Verification of the local grid structure by a certified installer is mandatory prior to installation.
Download Datasheet Download Manual
What is included in the Solis S6-EH3P10K-LV-ND-H package?
Component Quantity
Hybrid inverter 1× Solis S6-EH3P10K-LV-ND-H
Back plate for mounting 1×
MC4 connectors 4 pairs
Battery OT terminals 2×
Current transformers (CT) 3×
Smart meter (Eastron) 1×
Data logger stick 1×
Quick start guide 1×
Which battery systems are compatible with the Solis S6-EH3P10K-LV-ND-H?

The inverter is compatible with high-voltage lithium batteries (120V – 800V) communicating via CAN or RS485. Validated systems include solutions from BYD and Pylontech. The inverter optimises charge and discharge cycles based on battery health and current energy tariffs. Always refer to the most current compatibility list in the datasheet and verify the firmware version before installation.

How does the phase imbalance control of the Solis S6-EH3P10K-LV-ND-H work?

The S6-EH3P10K-LV-ND-H supports up to 100% unbalanced output — up to 40% of rated power can be assigned per phase. This is essential for 3×230V grid configurations without a neutral conductor, where the load per phase can vary significantly. The phase imbalance control ensures maximum stability and efficiency per phase, regardless of how consumption is distributed across the three phases.
