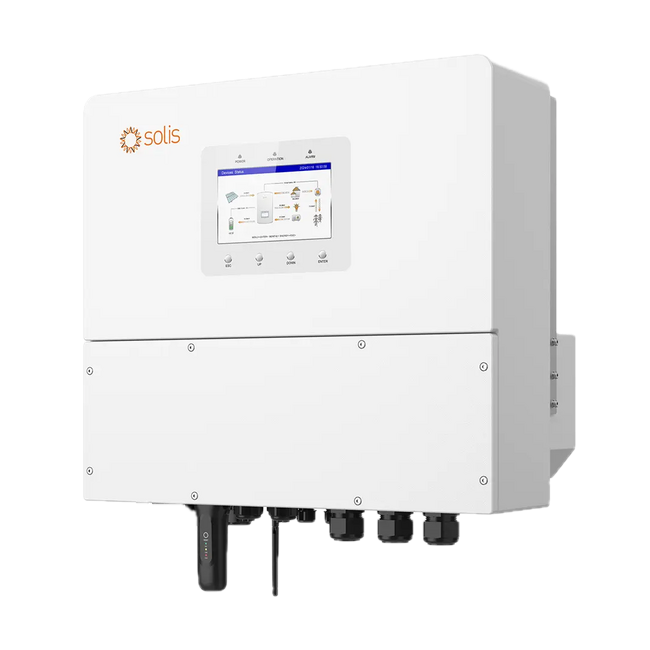

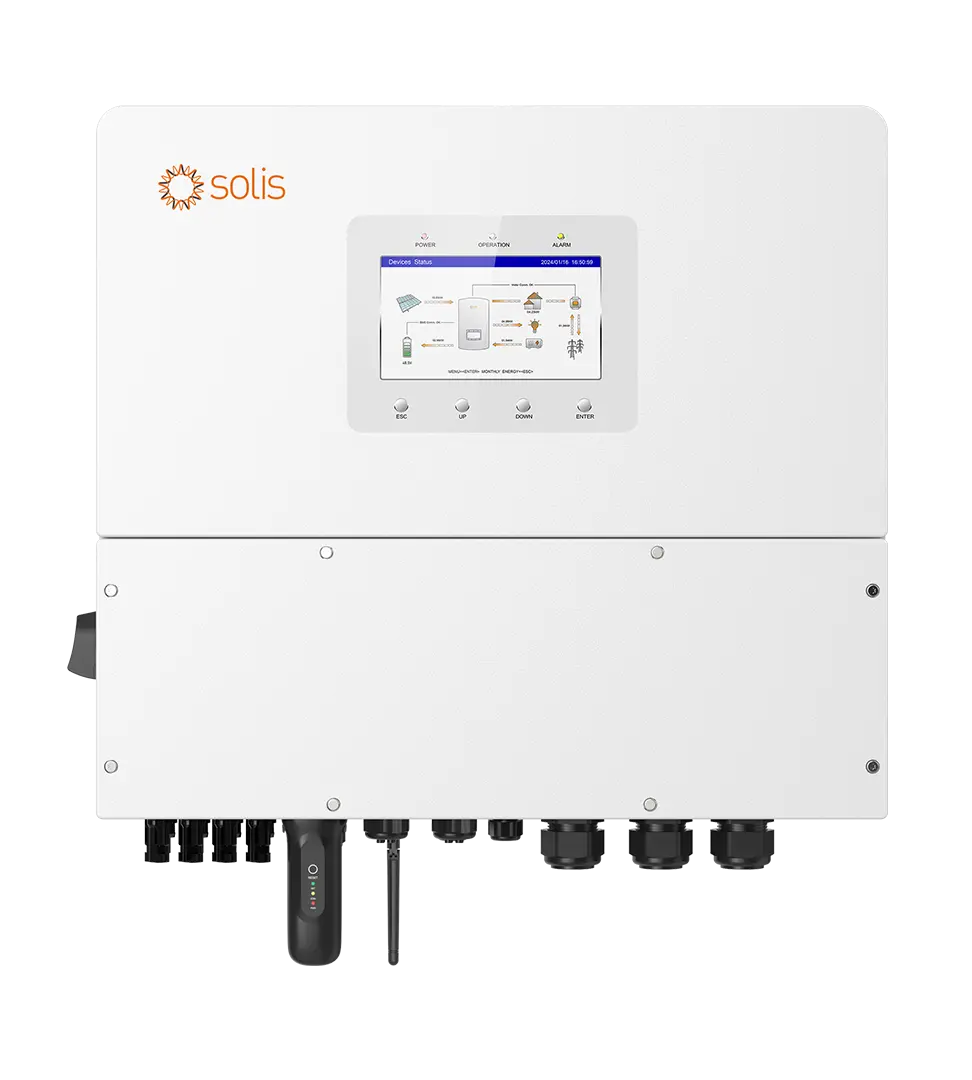

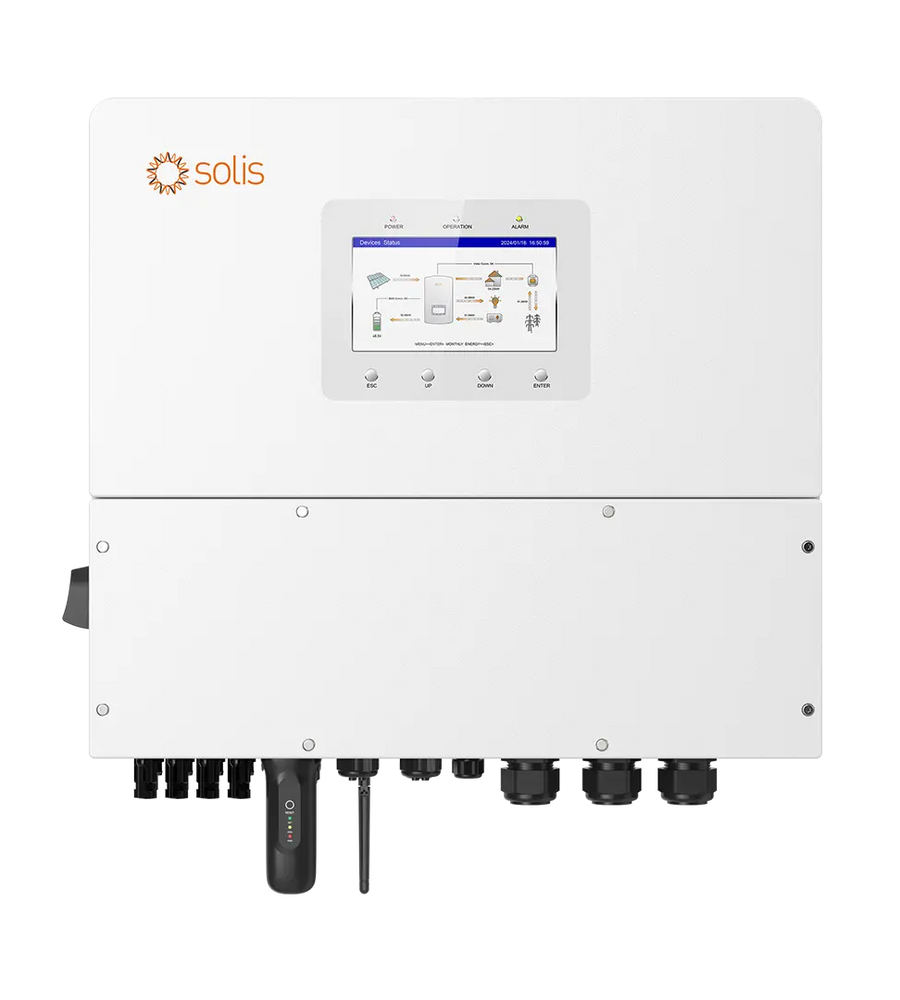

Solis S6-EH3P15K-H-EU 3-phase hybrid inverter with backup

The Solis S6-EH3P15K-H is a powerful three-phase hybrid inverter for high-voltage batteries (HV) and advanced PV installations in the Netherlands, Belgium, and Germany . This model supports dynamic energy tariffs, anti-feed-in, peak shaving, and offers a maximum efficiency of 97.7%. Ideal for homes and businesses that want to maximize self-consumption and combine battery management with smart energy management solutions.

Key Features:

• Maximum efficiency of 97.7% for optimal energy yield
• Support for SG-ready heat pumps and intelligent peak shaving
• Fully generator compatible with dual backup output (critical/non-critical)
• Four independent MPPTs for flexible string configurations
• Communication options: CAN, RS485, Ethernet, Bluetooth, optional Wi-Fi/LAN

Technical specifications:

• Nominal AC power: 15,000 W
• Max. PV input: 30,000 W
• Battery voltage range: 120–800 V (HV batteries)
• Max. charging/discharging current: 50 A
• Dimensions & Weight: 563 × 546 × 250 mm – 35.2 kg
• Fast backup switchover within 10 ms – IP66 for outdoor mounting

Datasheet download
