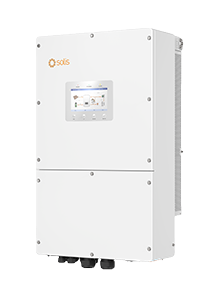

Solis S6-EH3P30K-H 3-Phase Hybrid Inverter
Couldn't load pickup availability
The Solis S6-EH3P30K-H is a high-voltage 3-phase hybrid inverter engineered for professional commercial energy storage systems. With a rated output power of 30 kW and a maximum usable PV input of 60 kW, this system maximizes self-consumption. The inverter delivers reliable backup power with a switch time of <10ms for continuous operations. Perfectly suited for demanding commercial installations.
- PV Capacity: Supports 60 kW maximum usable PV input with 3/6 MPPT configurations.
- Charge Rate: Maximum charge and discharge current of 70A*2 for dual battery inputs.
- Switch Time: Backup power supply activates in <10ms during a grid outage.
- Peak Power: Delivers 1.6 times of rated power, 2 S on the backup port.
Technical Precision for Complex Storage Systems
The Solis S6-EH3P30K-H offers exceptional performance for demanding commercial applications. Featuring a maximum input current of 40A/40A/40A per MPPT, the inverter is fully compatible with high-power solar modules. The system operates seamlessly with Li-ion batteries within a wide voltage range of 150-800V. The robust, transformerless design ensures long-term reliability under harsh environmental conditions, supported by an IP66 ingress protection rating and Intelligent redundant fan-cooling technology. With the capability to parallel up to 6 units, this system scales effortlessly to meet the dynamic energy demands of large facilities.
| Property | Value |
|---|---|
| Brand & Model | Solis S6-EH3P30K-H |
| Capacity / Power | 30 kW |
| Dimensions | 530*880*290mm |
| Warranty | 5 years (Extendable to 20 years) |
What is included in the package?
The package of the Solis S6-EH3P30K-H includes exactly the following components:
- Inverter x1
- Back plate x1
- Fastening screw x4
- Expansion Bolt x5.
- DC connector x8
- OT terminals x13
- CAN cable(3m) x1
- Battery terminal x2
- Handle x2
- Eastron Meter(optional) x1
- CT x3
- RJ45 connector x11
- S2-WL-ST Stick x1
- Quick Installation Manual x1
What is the compatibility of this inverter?
This 3-phase hybrid inverter is specifically engineered for integration with Li-ion high-voltage batteries operating within a 150-800V range. Complete compatibility with specific external battery brands must always be verified within the official Solis documentation.
How does the Time-of-Use scenario work?
In the Time-of-Use mode, the inverter strategically prioritizes powering the connected load and charging the battery during off-peak hours. Any surplus energy can subsequently be exported to the electrical grid if export limits permit.
