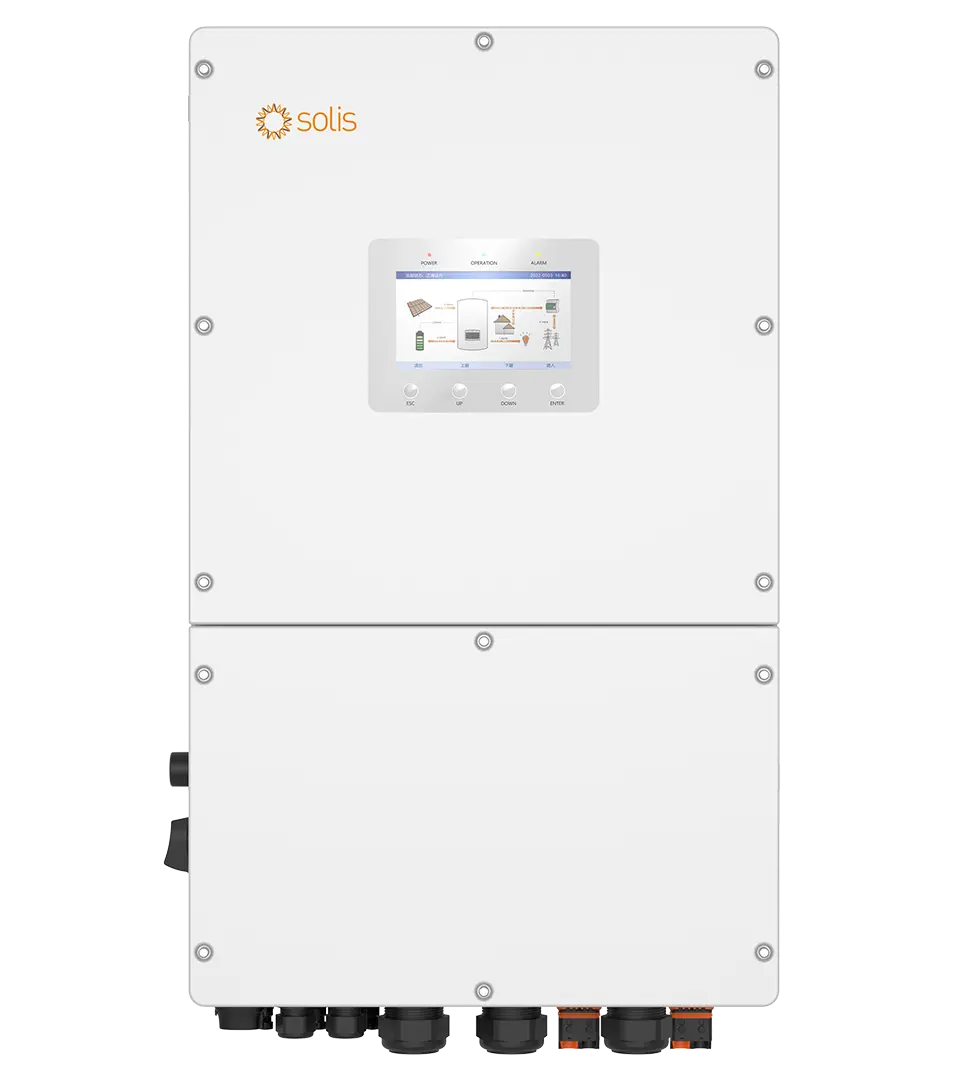

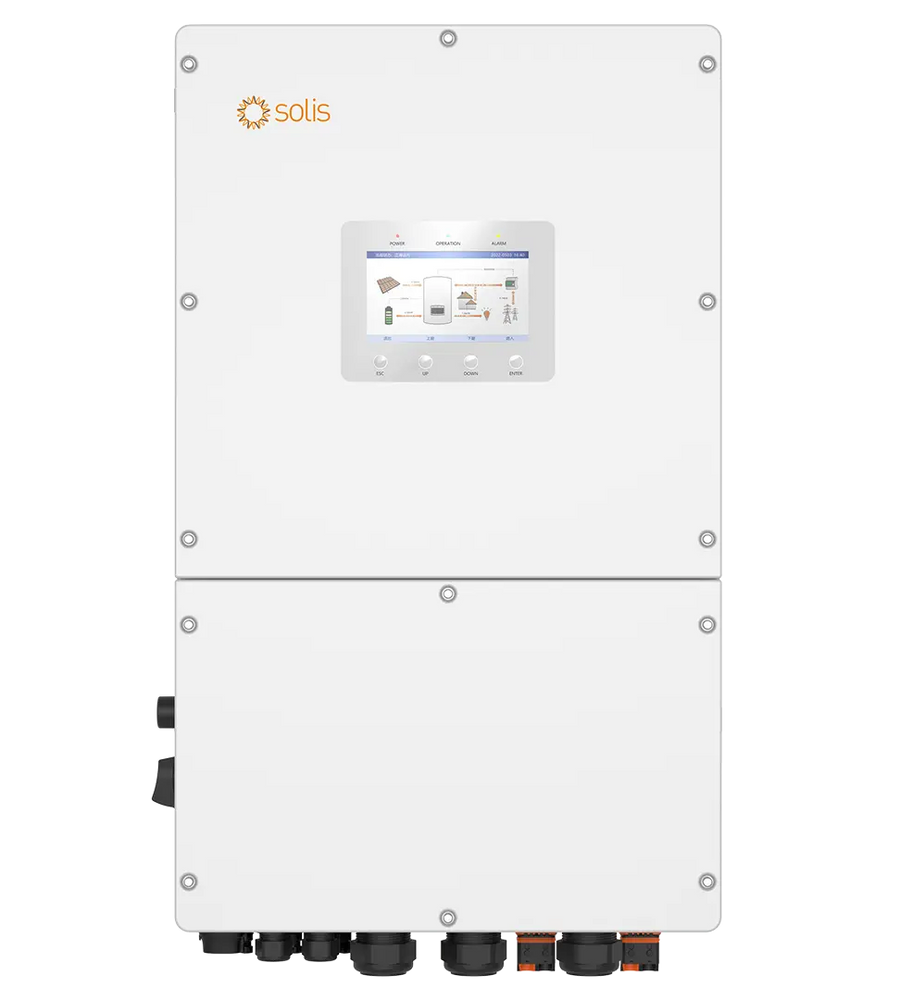

Solis S6-EH3P40K-H 3-Phase Hybrid Inverter

€4.664,55 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–14 business days (EU)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Solis S6-EH3P40K-H is a premium 3-phase hybrid inverter designed for seamless integration with high-voltage battery storage. Delivering a rated output power of 40 kW and supporting 80 kW maximum usable PV input, this unit handles major loads efficiently. Switchover times of <10ms secure critical systems during outages. It integrates perfectly with other Solis inverters.

  • PV Capacity: Generates high yields with 80 kW maximum usable PV input power.
  • Charge Rate: Powerful 70A*2 maximum charge/discharge current across dual ports.
  • Switch Time: Backup power activates seamlessly in <10ms.
  • Compatibility: Perfectly adapted for 150-800V Li-ion battery units.

Engineered for Demanding Grid and Off-Grid Projects

The Solis S6-EH3P40K-H provides industrial-grade resilience and efficiency. Featuring 4/8 MPPT inputs and accommodating a maximum input current of 40A/40A/40A/40A, it readily pairs with high-capacity solar arrays. The backup port sustains peak surges of 1.6 times of rated power, 2 S to start inductive loads reliably. Enclosed in an IP66 rated chassis weighing 73kg, the inverter operates continuously in ambient temperatures of -25°C~+60°C. Supported by Intelligent redundant fan-cooling, it maintains a superior maximum efficiency of 97.8% over an extended lifespan.

Note: Ensure you use the provided OT terminals for earth connections. Sizing of the AC cables must conform strictly to local regulations to safely handle the expected power limits.
Property Value
Brand & Model Solis S6-EH3P40K-H
Capacity / Power 40 kW
Dimensions 530*880*290mm
Warranty 5 years (Extendable to 20 years)
Download Datasheet View Manual
What is included in the package?

The package of the Solis S6-EH3P40K-H includes the following components:

  • Inverter x1
  • Back plate x1
  • Fastening screw x4
  • Expansion Bolt x5
  • DC connector x8
  • OT terminals x13
  • CAN cable(3m) x1
  • Battery terminal x2
  • Handle x2
  • Eastron Meter(optional) x1
  • CT x3
  • RJ45 connector x11
  • S2-WL-ST Stick x1
  • Quick Installation Manual x1
What is the compatibility of this inverter?

The inverter connects efficiently with approved high-voltage Li-ion batteries operating between 150-800V. It offers a 44kW maximum charge power capability. Refer to Solis technical documents for the complete battery list.

How does the Time-of-Use scenario work?

In this mode, you manually schedule charging and discharging periods. The system forces the battery to charge from the grid during low-cost hours and discharges during peak hours, optimizing utility costs.
