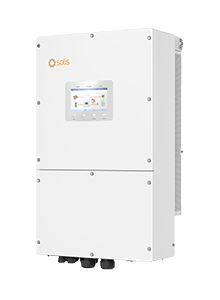

Solis S6-EH3P50K-H 3-Phase Hybrid Inverter

€5.022,71 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–14 business days (EU)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

The Solis S6-EH3P50K-H is a 3-phase hybrid inverter designed for integration with high-voltage battery systems. Providing a rated output power of 50 kW and 96 kW maximum usable PV input, this unit optimizes commercial energy management. Featuring 4 MPPT inputs and a switch time of <10ms, it suits large installations demanding exceptional stability.

  • PV Capacity: Supports 96 kW maximum usable PV input power for optimal yield.
  • Charge Rate: Dual ports deliver 140A/70A+70A maximum charge and discharge current.
  • Switch Time: Backup power supply activates in <10ms during grid failures.
  • Flexibility: Equipped with 4 MPPTs to accommodate complex solar module configurations.

Technical Precision for Robust Energy Systems

The Solis S6-EH3P50K-H offers a highly resilient solution for complex microgrids and commercial setups. The inverter features 4 MPPT inputs with a maximum input current of 40A/40A/40A/40A, ensuring robust compatibility with high-power modules. Providing 50 kW rated output power, the system sustains surge loads up to 1.6 times of rated power, 2 S on the backup port. The 73kg unit is enclosed within an IP66 rated chassis. Built for an operating temperature range of -25°C~+60°C and utilizing Intelligent redundant fan-cooling, it delivers consistent long-term performance.

Note: The inverter serial number is mandatory for warranty registration. The internal battery fuse must only be replaced by Solis-authorized personnel. Use approved 4.0~6.0 mm² DC cables for the photovoltaic installation.
Property Value
Brand & Model Solis S6-EH3P50K-H
Capacity / Power 50 kW
Dimensions 530*880*290mm
Warranty 5 years (Extendable to 20 years)
Download Datasheet View Manual
What is included in the package?

The package of the Solis S6-EH3P50K-H includes the following items:

  • Inverter x1
  • Back plate x1
  • Fastening screw x4
  • Expansion Bolt x5.
  • DC connector x8
  • OT terminals x13
  • CAN cable(3m) x1
  • Battery terminal x2
  • Handle x2
  • Eastron Meter(optional) x1
  • CT x3
  • RJ45 connector x11
  • S2-WL-ST Stick x1
  • Quick Installation Manual x1
What is the compatibility of this inverter?

The inverter is strictly compatible with selected Li-ion battery systems operating within a 150-800V voltage range. Communication between the inverter and battery is handled via CAN/RS485. Refer to official Solis documentation for specific details.

How does the Time-of-Use scenario work?

In the Time-of-Use configuration, the system prioritizes PV energy for supplying connected loads and charging the battery. Any excess power is only exported to the electrical grid after the battery reaches its maximum capacity.
