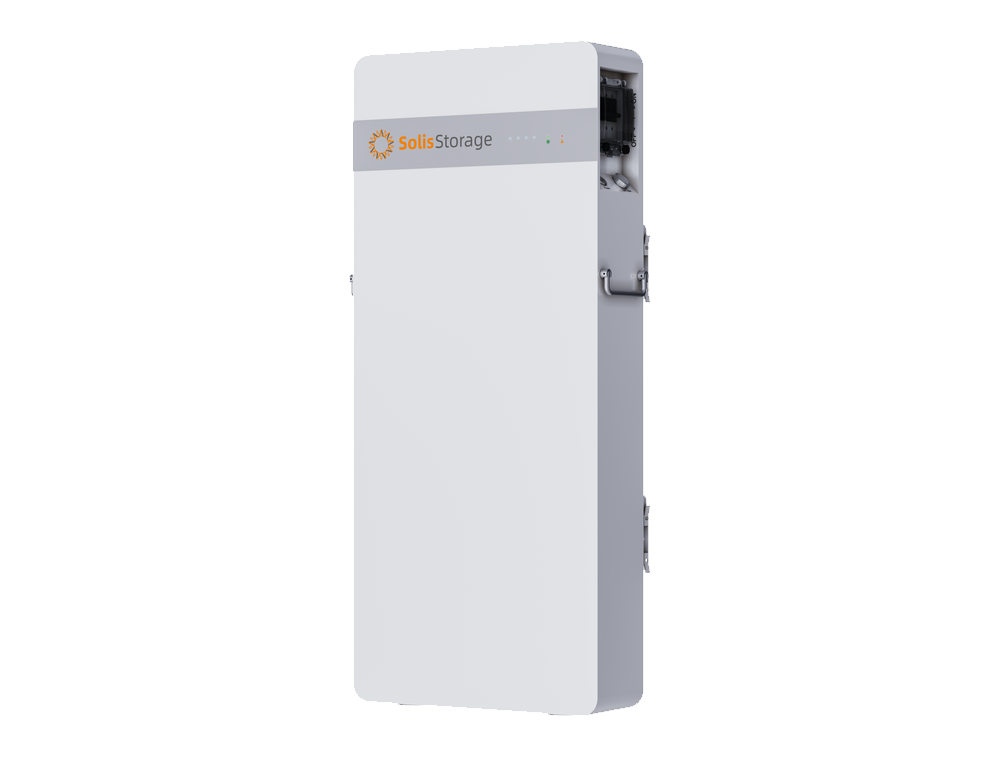

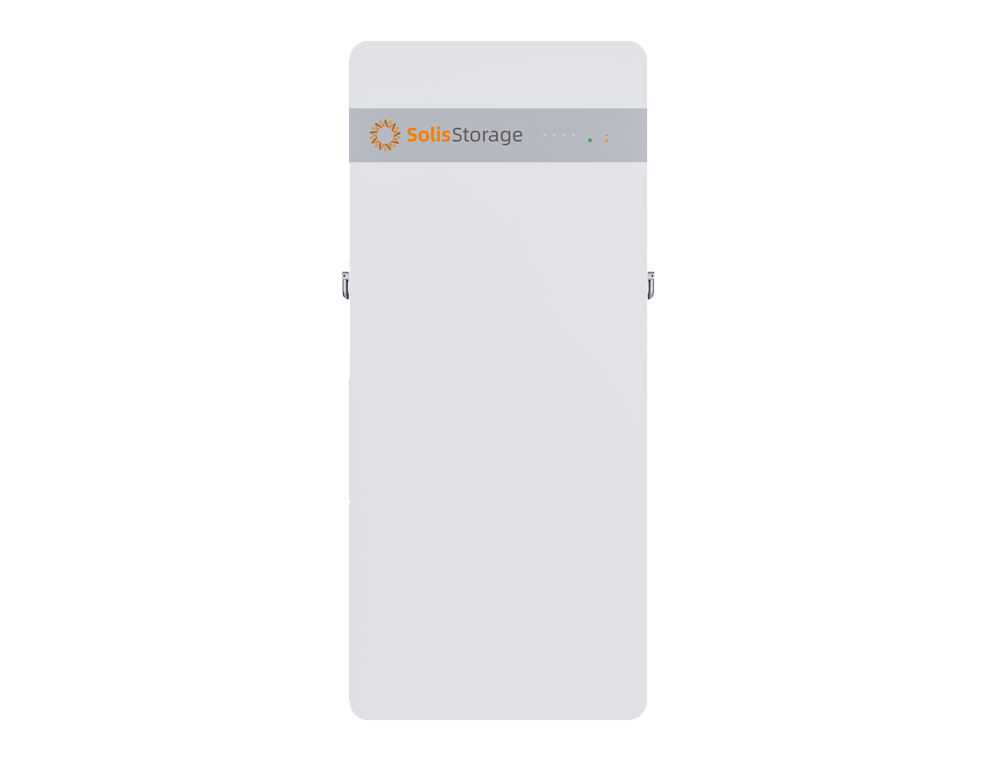

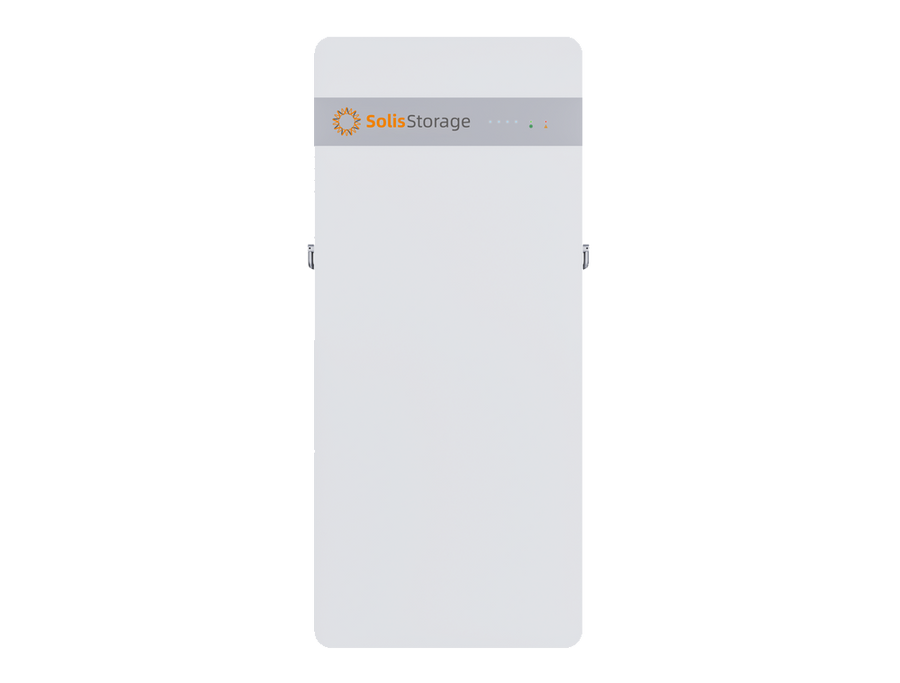

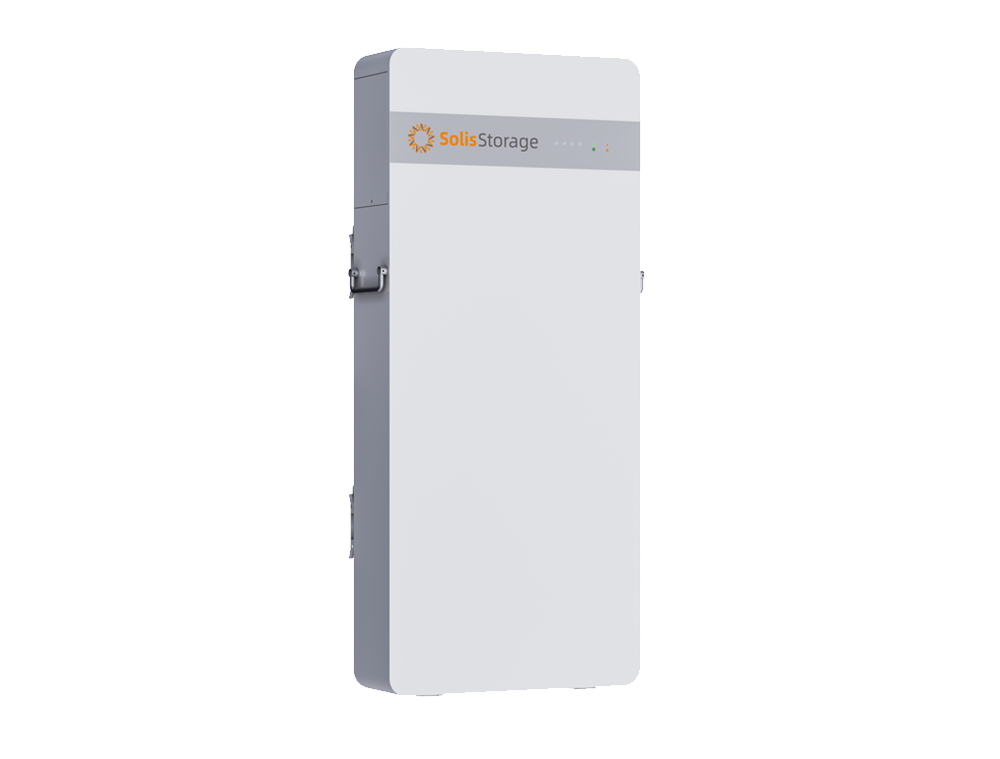

Solis Storage IntelliHome-16kWh-OD 16kWh Home Battery
Couldn't load pickup availability
The Solis IntelliHome-16kWh-OD is a 16 kWh LiFePO4 low-voltage home battery for residential energy storage, developed by SolisStorage for installation in combination with Solis low-voltage hybrid inverters. With an operating voltage range of 44.8–57.6V, a cell capacity of 314 Ah, a recommended charge and discharge current of 157A, an integrated heating film for charging and discharging down to −20°C and an IP66 protection rating, this system is suitable for demanding indoor and outdoor installations. The system is expandable to a maximum of 8 units in parallel for a total storage capacity of 128 kWh.
- 16 kWh LiFePO4 home battery: Operating voltage 44.8–57.6V, cell capacity 314 Ah, recommended charge/discharge current 157A — IP66 protection rating for indoor and outdoor installations.
- Integrated heating film: Automatic activation at cell temperatures below 0°C — charging and discharging possible from −20°C to 55°C without an external heating solution.
- ≥ 6,000 charge cycles / 10 years: Tested at 70% EOL at 100% DoD and 0.5C/0.5C at 25°C — LiFePO4 cell chemistry for long-lasting and reliable energy storage.
- Maximum scalability: Expandable from 16 kWh to 128 kWh via parallel connection of up to 8 units — usable up to 4,000 m altitude (derating above 2,000 m).
- Wall and floor mounting: Flexible installation options — robust wall bracket included with expansion screws — weight 126 kg, dimensions 470 × 950 × 240 mm.
Suitable for
- Energy-intensive households with high daily consumption and self-consumption optimisation
- Installations with heat pumps, EV chargers or other high-demand household appliances
- Outdoor installations in technical rooms, garages or sheltered outdoor locations (IP66)
- Systems with future expansion requirements up to 128 kWh via parallel connection of up to 8 units
- Installations in combination with Solis low-voltage hybrid inverters (48V) — single-phase and three-phase configurations
- Installations at altitudes up to 4,000 m (derating above 2,000 m)
Solis IntelliHome-16kWh-OD — specifications and advantages
- Integrated heating film: Enables charging and discharging at ambient temperatures from −20°C to 55°C — when the cell temperature drops below 0°C, the system automatically activates the heating film and warms the cells to above 10°C. Above 45°C, automatic derating activates to protect the cells.
- Wide operating temperature range: Charging and discharging from −20°C to 55°C thanks to natural cooling and integrated thermal protection — recommended operating temperature 10°C to 45°C for optimal service life.
- High continuous current: With a recommended charge and discharge current of 157A, this system supports heat pumps, EV chargers and high-demand household appliances — tested at 0.5C/0.5C for optimal cell service life.
- Direct parallel connection: Up to 8 units connectable in parallel via Solis combiner box — from 16 kWh to 128 kWh total storage capacity. Always refer to the most recent compatibility list and firmware version before installation.
- Solis integration: Seamless communication with Solis low-voltage hybrid inverters via CAN/RS485 — supports single-phase and three-phase configurations.
- Certified safety: Certified to IEC62619, IEC63056, ISO13849, UN38.3, VDE2510-50, EN/IEC61000-6-1/2/3/4, IEC60730-1 and IEC60529 (IP66) — complies with European safety standards for residential energy storage.
| Property | Value |
|---|---|
| Brand & model | SolisStorage IntelliHome-16kWh-OD |
| Nominal capacity | 16.0 kWh |
| Battery type | LiFePO4 |
| Cell capacity | 314 Ah |
| Operating voltage | 44.8 – 57.6V |
| Recommended charge/discharge rate | 0.5C |
| Recommended charge/discharge current | 157A |
| Max. charge current | 157A |
| Max. discharge current | 157A |
| Depth of discharge (DoD) | 100% |
| Charge temperature range | −20°C to +55°C (with heating film; derating above 45°C) |
| Discharge temperature range | −20°C to +55°C (derating above 45°C) |
| Recommended operating temperature | 10°C to 45°C |
| Service life | ≥ 6,000 cycles / 10 years (70% EOL at 100% DoD, 0.5C/0.5C, 25°C) |
| Communication | CAN / RS485 |
| Cooling | Natural cooling |
| Protection rating | IP66 |
| Mounting method | Wall or floor mounting (wall mounting standard) |
| Max. parallel connection | 8 units (128 kWh) |
| Max. operating altitude | ≤ 4,000 m (derating above 2,000 m) |
| Operating humidity | 5% – 95% RH (non-condensing) |
| Certifications | IEC62619, IEC63056, ISO13849, UN38.3, VDE2510-50, EN/IEC61000-6-1/2/3/4, IEC60730-1, IEC60529 (IP66) |
| Dimensions (W × H × D) | 470 × 950 × 240 mm |
| Weight | 126 kg |
All technical values are taken from the official SolisStorage datasheet. The datasheet is definitive for the final technical specifications.
The bracket supplied as standard with the 16 kWh battery is exclusively an anti-tilt bracket for floor mounting. This bracket prevents the battery from tipping forward and is not designed to bear the weight of the battery on a wall.
Therefore, never use this bracket for wall mounting. Doing so may cause the battery to detach and fall.
For safe wall mounting, a separate, optional wall mounting bracket is required. Order this additionally when the battery is to be wall-mounted.
What is included in the packaging of the Solis IntelliHome-16kWh-OD?
| Component | Specification |
|---|---|
| Battery system | 1× IntelliHome-16kWh-OD (126 kg) |
| Wall bracket | 1× robust wall bracket including expansion screws |
| DC power cables | Red (positive) and black (negative) with pre-mounted connectors |
| Earthing cable | 1× yellow/green |
| Communication cable | 1× RJ45 |
| Cover plate | 1× decorative cover plate for cable connections including mounting screws |
Which Solis inverters are compatible with the IntelliHome-16kWh-OD?
The IntelliHome-16kWh-OD is compatible with Solis low-voltage hybrid inverters (48V) via CAN/RS485. Supported single-phase series include the S6-EH1P(3–6)K-L-EU, S6-EH1P(3–6)K-L-Smart, S6-EH1P(3–10)K-L-PLUS, S6-EH1P(9.9–18)K03-NV-YD-L and S5-EH1P. For three-phase applications, the S6-EH3P(8–18)K02-NV-YD-L and S6-EH3P(7–10)K02-LV-YD-L series are relevant. In addition, the S6-EA1P(3.6–6)K-L, S6-EO1P(4–6)K-48 and S6-EO1P(4–5)K-48-EU are supported. Compatibility depends on the exact inverter model and firmware version. Always refer to the most recent compatibility list before installation.
Can the IntelliHome-16kWh-OD be floor-mounted?
Yes. The IntelliHome-16kWh-OD is suitable for both wall mounting and floor mounting. Given the weight of 126 kg, floor mounting is often preferred for a stable and safe installation. In both cases, the unit must be firmly anchored using the supplied robust wall bracket to prevent tipping. The system operates at altitudes up to 4,000 m (derating above 2,000 m) and is suitable for installation in technical rooms, garages and sheltered outdoor locations thanks to its IP66 protection rating. Installation must be carried out exclusively by certified electrical installers in accordance with the SolisStorage installation manual.
Why does the Solis IntelliHome-16kWh-OD become more attractive after the end of net metering schemes?
As net metering schemes are phased out across Europe, local storage of self-generated energy becomes financially more relevant. The IntelliHome-16kWh-OD enables you to use solar energy generated during the day in the evening and at night, reducing export at low feed-in rates and maximising self-consumption at the full electricity price. With a service life of ≥ 6,000 cycles (70% EOL at 100% DoD), IP66 protection and a scalable system up to 128 kWh, the IntelliHome-16kWh-OD is designed for long-term returns. The extent of the financial benefit depends on your consumption profile, PV yield, energy contract and applicable feed-in rates.
View more products in our SolisStorage home battery energy storage collection.
