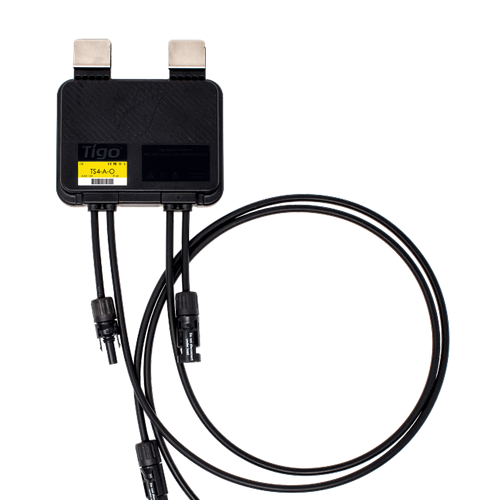

Tigo TS4-AO 700W optimizer, Maximum Efficiency & Monitoring

The Tigo TS4-AO 700W Optimizer is an advanced MLPE (Module Level Power Electronics) solution that converts standard solar panels into smart, optimized modules. This optimizer increases energy yield, offers flexible installation options, and supports manual or automatic shutdown at the module level. Only heavily shaded panels need to be equipped with a Tigo optimizer.

Key Features:

✔ Suitable for solar panels up to 700W

✔ Optimization at panel level for higher energy yield

✔ Automatic shut-off for extra safety

✔ Module monitoring for better system performance

✔ Easy installation on the standard panel frame

Technical specifications:

• Maximum module capacity: 700W

• System voltage: 1000V TÜV

• Input cable length: 0.12 m with MC4 connector

• Output cable length: 1.2m with MC4 connector

• Mounting: Mounting on frame or mounting rail

• Dimensions: 139 × 140 × 23 mm

• Weight: 520 g

Datasheet download
