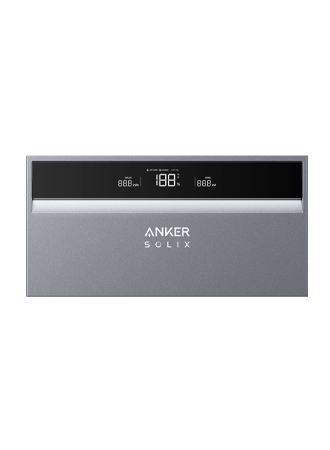

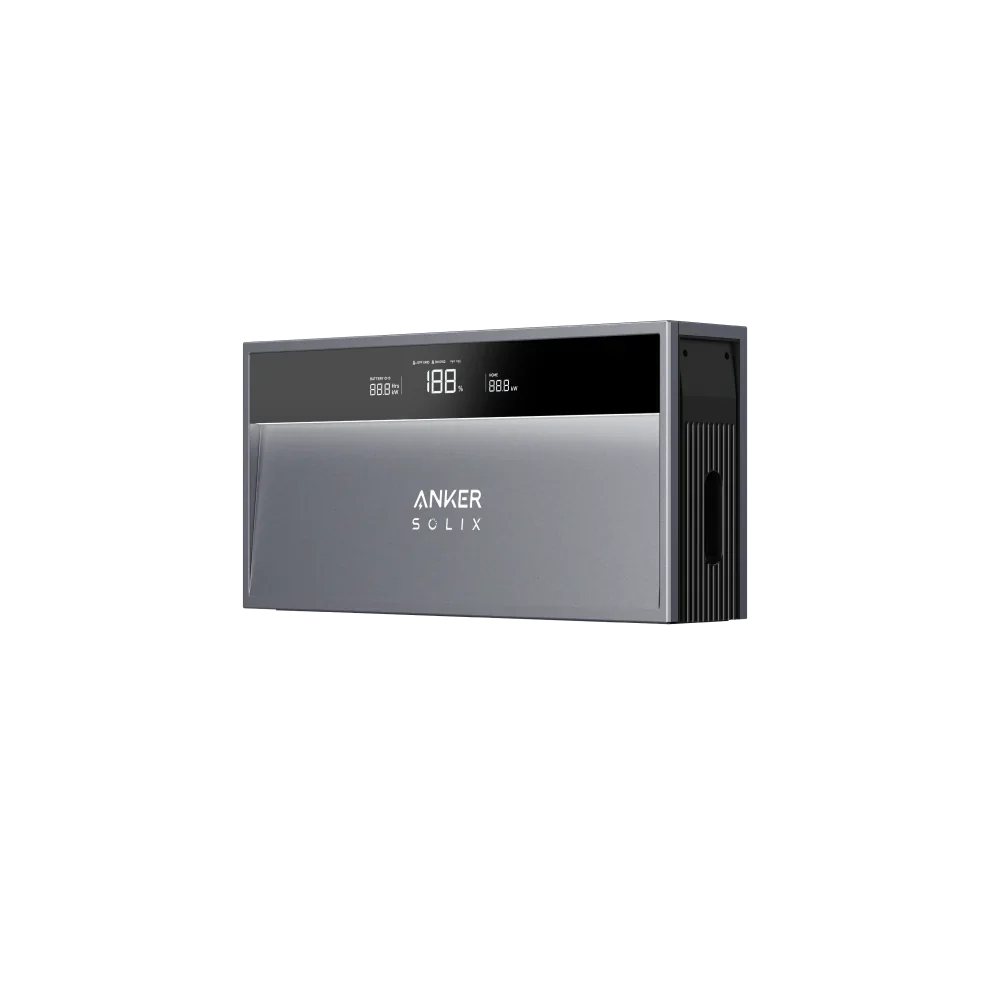

Anker Solix X1-H10K-T 3-Phase Hybrid Inverter
Couldn't load pickup availability
The Anker Solix X1-H10K-T represents the new standard in 3-phase residential energy storage. This powerful 10kW hybrid inverter combines immense power with an unprecedented slim design of just 150 mm depth. Engineered for maximum independence, it serves as the intelligent heart of a future-proof smart energy ecosystem.
- Powerful Output: 10kW AC output (3-phase) with up to 200% PV oversizing for maximum yield.
- Ultra-Slim Design: Only 15 cm deep, ensuring an aesthetic and space-saving integration in any home.
- UPS-Level Reliability: Switches to backup mode in less than 10ms during power outages.
- Extreme Durability: IP66-certified and C5 corrosion protection for flawless operation from -25°C to 60°C.
10kW Hybrid Power: Performance Without Compromise
The X1-H10K-T is more than just an inverter; it is an AI-driven energy manager. With its SG-Ready functionality, the system automatically optimizes your energy consumption based on your needs. Whether installed in a technical room or on an exterior wall, the Anker Solix X1 delivers peak performance under all conditions.
| Property | Value |
|---|---|
| Model | Anker Solix X1-H10K-T (3-Phase) |
| Nominal AC Power | 10,000 W (10 kW) |
| PV Input Range | 150V – 1000V (2 MPPTs) |
| Maximum Efficiency | 98.0% (97.4% EU) |
| System Depth | Only 150 mm (Ultra-slim) |
| Protection Rating | IP66 (Dust and Waterproof) |
| Warranty | 10-Year Manufacturer Warranty |
| Backup Switchover | < 10 ms (UPS-level) |
What is included in the package?
The Anker Solix X1 is delivered as a complete package for a professional installation:
- 1x Anker Solix X1-H10K-T Power Module
- 1x 3-Phase Smart Meter (including CT clamps)
- 1x WiFi/Ethernet Dongle for app monitoring
- Wall mounting bracket, floor mounting set, and cable covers
- All necessary AC/DC connectors and documentation
Which batteries and panels are compatible with this system?
The X1-H10K-T works exclusively with the modular Anker Solix X1 Battery Modules (5kWh LFP) for perfect synergy. Regarding solar panels, the system is universally compatible with Tier-1 brands such as Aiko, Jinko Solar, DMEGC, Trina Solar, and JaSolar.
Is the system expandable later on?
Yes, the system is highly scalable. You can expand modularly from 5kWh to 30kWh per inverter. For very large storage requirements, up to 6 systems can be connected in parallel for a total capacity of 180kWh.
How safe is the installation?
Safety is the highest priority. Each battery module includes a built-in aerosol fire extinguisher and active temperature monitoring. Thanks to the IP66 housing, the system is also fully protected against water and dust, making outdoor mounting completely safe.
Is this system suitable for dynamic energy tariffs?
Absolutely. This is a core strength of the X1. The software optimizes charging and discharging based on current market prices (e.g., Tibber or ANWB). This allows you to store electricity at low or negative prices and discharge during expensive peak hours.
Explore the full collection: Anker Solix X1 System.
