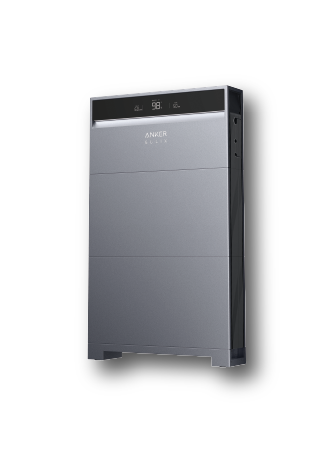

Anker Solix X1-H10K-T 3PH with 10 kWh storage

€6.198,83 incl. VAT
Shipping calculated at checkout.

The Anker Solix X1-H10K-T 3PH package is a powerful three-phase hybrid solution with a storage capacity of 10 kWh. This system is designed for homes and businesses with very high energy consumption, requiring reliable storage and emergency power supply. The package features the most powerful inverter in the X1 series and all top specifications, including IP66 and C5 anti-corrosion.

Anker SOLIX X1 (3-Phase / 10 kW) – Key Features

  • Connection: Very powerful 3-phase hybrid inverter (10 kW output power).
  • Capacity: 10 kWh storage, expandable up to an impressive 180 kWh.
  • PV Input: Max. 15 kW via 2 MPP trackers (Ideal for maximum solar yield).
  • Backup: 10 kW backup power, peak 15 kVA (10 s) for optimal power security.
  • Efficiency: Very high efficiency rating of up to 98%.
  • Durability: Robust IP66 enclosure and industrial C5 anti-corrosion rating, suitable for indoor and outdoor mounting.
  • Warranty: 10-year full warranty on the system.

Technical Specifications (X1-H10K-T 3PH)

  • Battery Type: LFP (Lithium Iron Phosphate)
  • Battery Capacity: 10 kWh (composed of 2 × 5 kWh modules)
  • Battery Voltage: 350 – 550 VDC
  • Max. Charge/Discharge Power: 2 × 3 kW
  • Dimensions (Inverter): 670 × 435 × 180 mm
  • Total Package Weight: 132 kg (Inverter: 30 kg / Batteries: 102 kg)
  • Protection Class: IP66
  • Operating Temperature: −25 °C to +60 °C (with internal heating).

This package consists of: 2 × Anker Solix X1-B5-H (5 kWh) battery modules and 1 × Anker Solix X1-H10K-T 3PH Power Module.



Download Datasheet

Frequently Asked Questions about the Anker SOLIX X1

Is this package suitable for my 3-phase connection?

Yes, the Anker Solix X1-H10K-T package is specifically designed as a three-phase hybrid system. This ensures optimal and balanced power distribution for households and businesses with a 3-phase grid connection.

Which variants of the SOLIX X1 are approved in Belgium (Synergrid)?

According to Synergrid guidelines, only models up to a maximum of **10 kVA** may be installed in Belgium. This **10 kW** model, like the **12 kW** model, is not covered by the residential Synergrid regulation. For Belgian residential installations, the single-phase **3.68 kW** and **4.6 kW** models, and the three-phase **5 kW** and **8 kW** models are approved.
