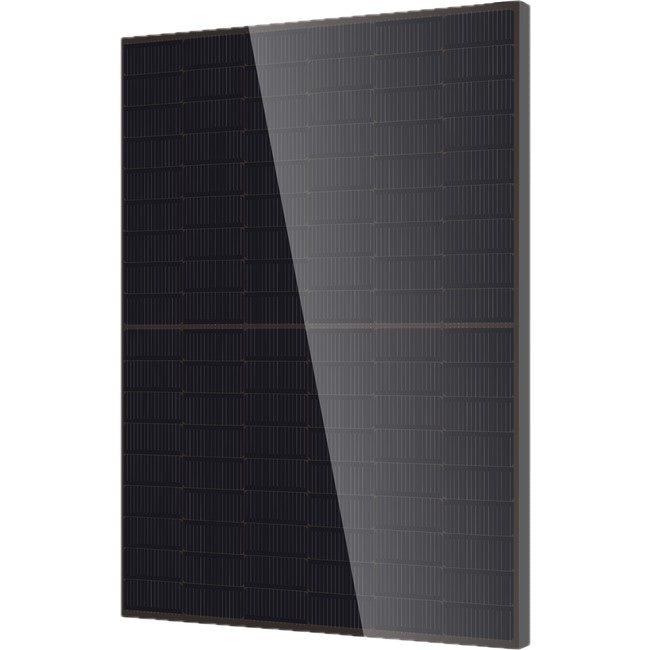

DMEGC DM460G12RT-G48HBB 460W All Black Glass-Glass
Couldn't load pickup availability
The DMEGC DM460G12RT-G48HBB is a 460 Wp N-Type mono-crystalline monofacial All-Black dual-glass solar module with a module efficiency of 23.00% (STC). With a Voc of 36.32V, a Vmpp of 30.95V, a fully black design through DMEGC Advanced Black Technology and a linear performance warranty of 30 years (minimum 87.40% of original rated power), this module is designed for residential PV installations where high technical performance and premium aesthetics are equally important.
- 460 Wp N-Type mono-crystalline All-Black: Module efficiency 23.00% (STC) — Voc 36.32V, Vmpp 30.95V, Isc 15.83A, Impp 14.87A.
- Monofacial dual-glass: 2 mm heat-strengthened glass on front and rear — Class A fire rating, PID-resistant, max. snow load +5400 Pa.
- 30-year linear performance warranty: Minimum 87.40% of original rated power — annual degradation ≤ 0.40% after year 1 — first-year degradation ≤ 1.00%.
- Temperature coefficient Pmax −0.29%/°C: Lower power loss at high cell temperatures due to N-Type cell technology.
- 1100 mm cables (landscape configuration): Pre-equipped with 4 mm² cables and MC4-EVO 2A connectors — direct installation without extensions.
Suitable for
- Residential buildings and PV installations where a fully All-Black module is preferred for architectural reasons
- Pitched roof systems where rear-side reflection plays no role
- Installations with string and hybrid inverters whose PV input is compatible with the electrical specifications of this module
- Projects in demanding climatic conditions (wind, snow, mechanical load)
- Hybrid PV installations with battery storage
DMEGC DM460G12RT-G48HBB — specifications and benefits
- N-Type mono-crystalline cells: First-year degradation ≤ 1.00% and ≤ 0.40% per year thereafter — lower power loss at high cell temperatures compared to P-Type technology.
- Monofacial dual-glass architecture: Enhanced mechanical rigidity and long-term durability — Class A fire rating for optimal safety on pitched roof systems without the additional cost of bifacial cells.
- Certified mechanical load rating: Tested to +5400 Pa front load and −2400 Pa rear load — contributes to enhanced resistance against mechanical stress and reduces the risk of microcracks.
- Long performance warranty: 30-year linear warranty with minimum 87.40% of original rated power can contribute to a lower Levelized Cost of Electricity (LCOE), depending on project design.
| Property | Value |
|---|---|
| Brand & model | DMEGC DM460G12RT-G48HBB |
| Rated power (STC) | 460 Wp |
| Rated power (NMOT) | 351 Wp |
| Module efficiency (STC) | 23.00% |
| Cell type | N-Type mono-crystalline, 96 cells (6×16), monofacial |
| Glass type | Dual-glass (2 mm heat-strengthened, front and rear) |
| Open-circuit voltage (Voc) | 36.32V |
| MPP voltage (Vmpp) | 30.95V |
| Short-circuit current (Isc) | 15.83A |
| MPP current (Impp) | 14.87A |
| Temperature coefficient Pmax | −0.29%/°C |
| Temperature coefficient Voc | −0.25%/°C |
| Temperature coefficient Isc | +0.048%/°C |
| First-year degradation | ≤ 1.00% (year 1) |
| Annual degradation | ≤ 0.40% |
| Max. system voltage | 1500V DC (IEC) |
| Max. test load front/rear | +5400 Pa / −2400 Pa |
| Max. design load front/rear | +3600 Pa / −1600 Pa |
| Fire rating | Class A |
| Connector | MC4-EVO 2A (1500V) |
| Cable length (landscape configuration) | 1100 mm (+/−), 4 mm² |
| Junction box | IP68 (IEC 62790), 3 diodes |
| Certifications | IEC 61215, IEC 61730, IEC 62716, IEC 61701, IEC TS 63342 |
| Product warranty | 25 years |
| Performance warranty | 30 years linear (87.40% of original rated power) |
| Modules per pallet | 36 units |
| Pallet dimensions | 1800 × 1140 × 1250 mm |
| Modules per 40HQ container | 936 units |
| Dimensions (L × W × H) | 1762 × 1134 × 30 mm |
| Weight | 24.0 kg |
All electrical values are measured under Standard Test Conditions (STC: 1000 W/m², 25°C, AM 1.5), unless otherwise stated. The official datasheet is always leading for the correct technical specifications.
What is included in the DMEGC DM460G12RT-G48HBB package?
| Component | Description |
|---|---|
| Solar module | 1× DMEGC DM460G12RT-G48HBB with integrated IP68 junction box (3 diodes) |
| Solar cables (landscape configuration) | 1100 mm (+/−), 4 mm², MC4-EVO 2A connectors |
Why choose a monofacial dual-glass module over a glass-backsheet module?
A monofacial dual-glass module offers the enhanced mechanical rigidity, PID resistance and Class A fire rating of a dual-glass construction without the additional cost of bifacial cells. This is a technically suitable solution for pitched roof systems where the rear side of the module receives no light and rear-side reflection plays no role. The dual-glass structure contributes to improved resistance against mechanical stress, moisture and UV degradation compared to glass-backsheet modules, which can benefit the long-term performance of the system.
Which inverters are compatible with the DMEGC DM460G12RT-G48HBB?
The module is compatible with PV string and hybrid inverters whose maximum input voltage, MPPT range and maximum input current are consistent with the electrical characteristics of this module (Voc 36.32V, Isc 15.83A, max. system voltage 1500V DC). This includes suitable string and hybrid inverters from manufacturers such as Solis, GoodWe, Huawei and SMA, provided the electrical specifications are compatible. Always refer to the inverter's technical specifications and this module's datasheet before installation to confirm electrical compatibility.
What is the advantage of N-Type over P-Type solar modules?
N-Type solar cells use phosphorus as a dopant instead of boron (P-Type). This results in a lower first-year degradation (LID — Light Induced Degradation) of ≤ 1.00% in year one, compared to an average of 1.5–3% for P-Type modules. In addition, N-Type cells have a lower temperature coefficient (−0.29%/°C for this model), meaning they lose less power at higher cell temperatures than comparable P-Type modules. Over a period of 30 years, this can contribute to a higher total energy yield.
