Dyness DL5.0C Stack Bracket Set (2 Units)

€48,40 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–14 business days (EU)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

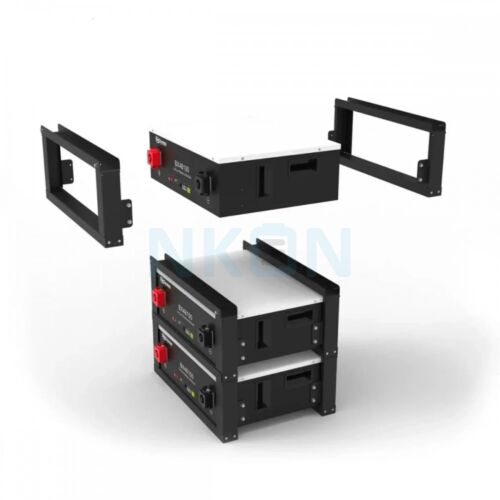

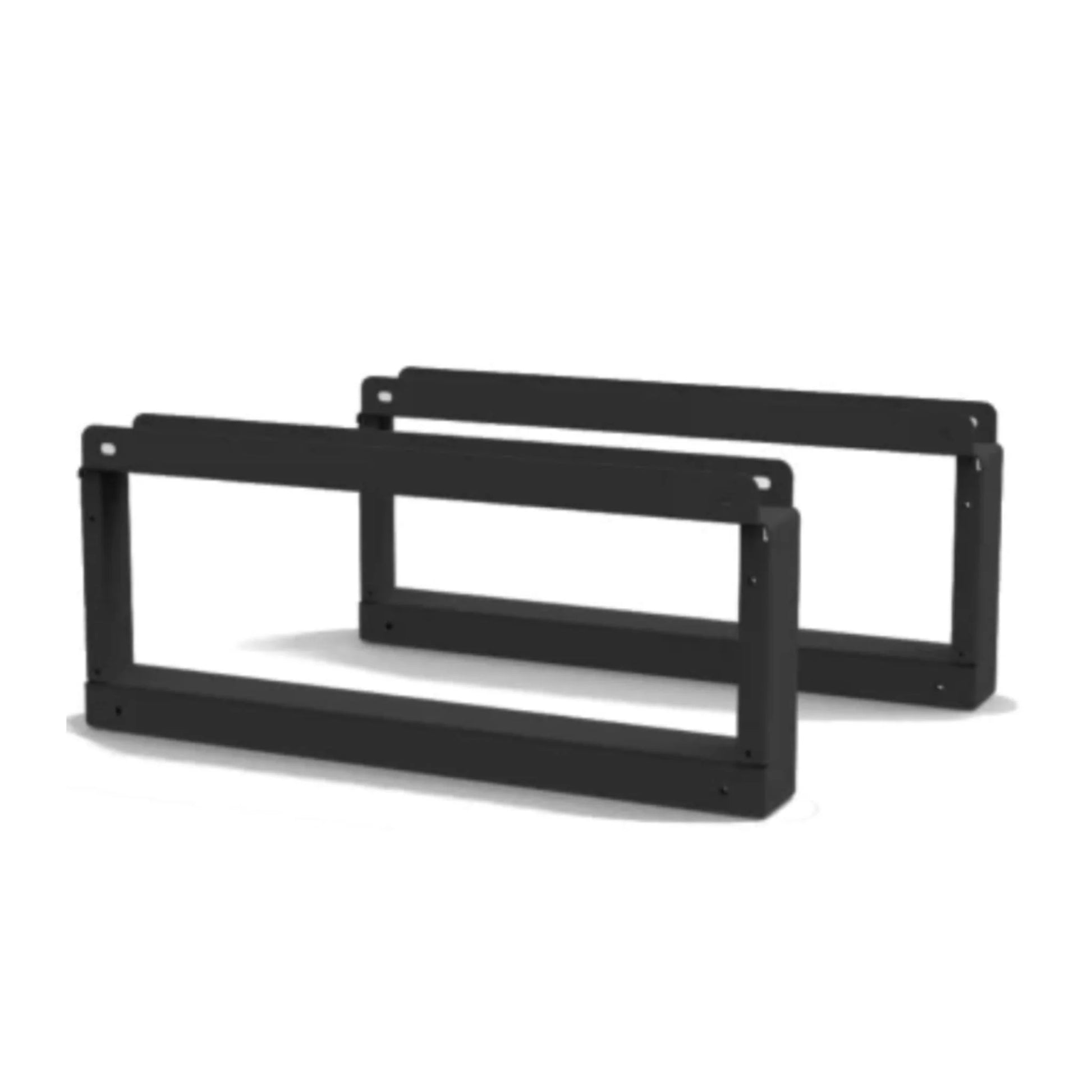

The Dyness DL5.0C Stack Bracket Set is an essential mechanical component for the floor-standing installation of DL5.0C low-voltage battery modules (not suitable for Pro version). This set of two powder-coated steel brackets enables vertical stacking without external wall mounting. The mechanical anchoring with M6 bolts ensures structural stability, which is vital for high-density storage projects in the Dyness storage collection.

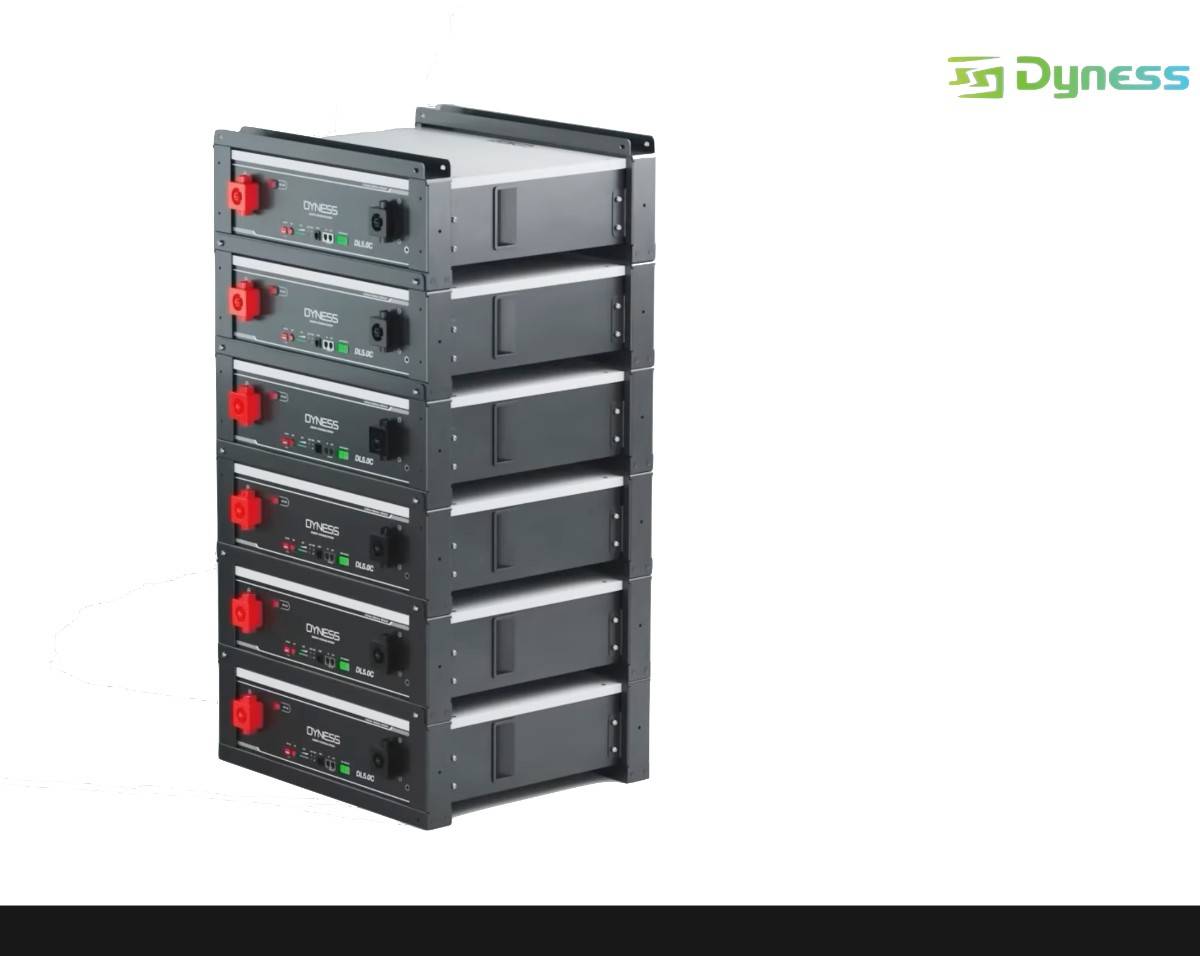

  • 6-Layer Stacking: Safe vertical construction reaching a total system capacity of 30.72kWh per stack.
  • 9.8N-m Torque: Verified structural integrity through specific mechanical loading requirements on all fasteners.
  • Steel Construction: High-grade coated steel designed to support the 54 kg load per module.
  • Complete Mounting Kit: Includes front and rear brackets with corresponding M6 screws for integration.

Technical Precision and Stability

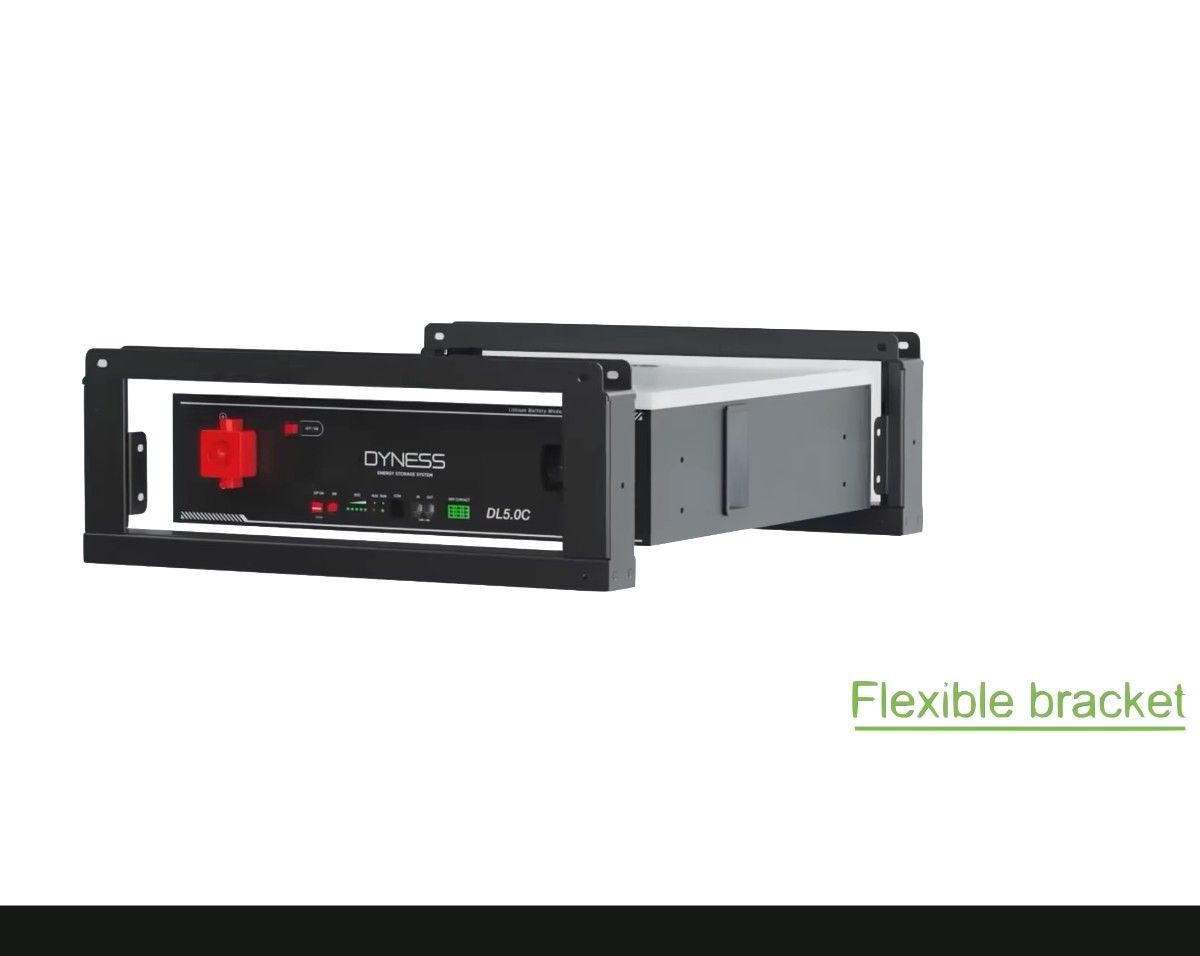

The installation of the Dyness DL5.0C Stack Bracket Set is required for configurations where wall mounting is not preferred. These brackets eliminate vibration and ensure correct cooling gaps between the stacked units. Each bracket is exactly 558mm wide to align perfectly with the DL5.0C chassis. By securing the modules with a torque of 9.8N-m, the setup complies with residential energy storage safety regulations. This system optimizes energy density and provides a professional finish for installers demanding engineering excellence in every battery tower.

Note: Use a torque wrench set to 9.8N-m when tightening the M6 bolts. Dyness recommends anchoring the top module of a 6-layer stack to the wall for additional safety.
Property Value
Brand & Model Dyness DL5.0C Stack Bracket
Compatibility Dyness DL5.0C (5.12kWh)
Material Powder-coated Steel
Max. Stack Height 6 Units (30.72kWh)
Fasteners M6 Screws
Tightening Torque 9.8N-m
Download Datasheet Download Manual
What is included in the package?
1x Front Bracket
1x Rear Bracket
4x M6 Mounting Screws
Is this accessory compatible with other batteries?
These brackets are mechanically compatible exclusively with the Dyness DL5.0C enclosure. The 558mm width is specifically matched to the mechanical anchoring points of this model to ensure maximum stability.
How does this system support Time-of-Use strategies?
Stacking up to 30.72kWh per stack enables high-capacity storage within a minimal footprint. This allows for significant energy shifting, storing solar power for use during peak utility rate periods.
