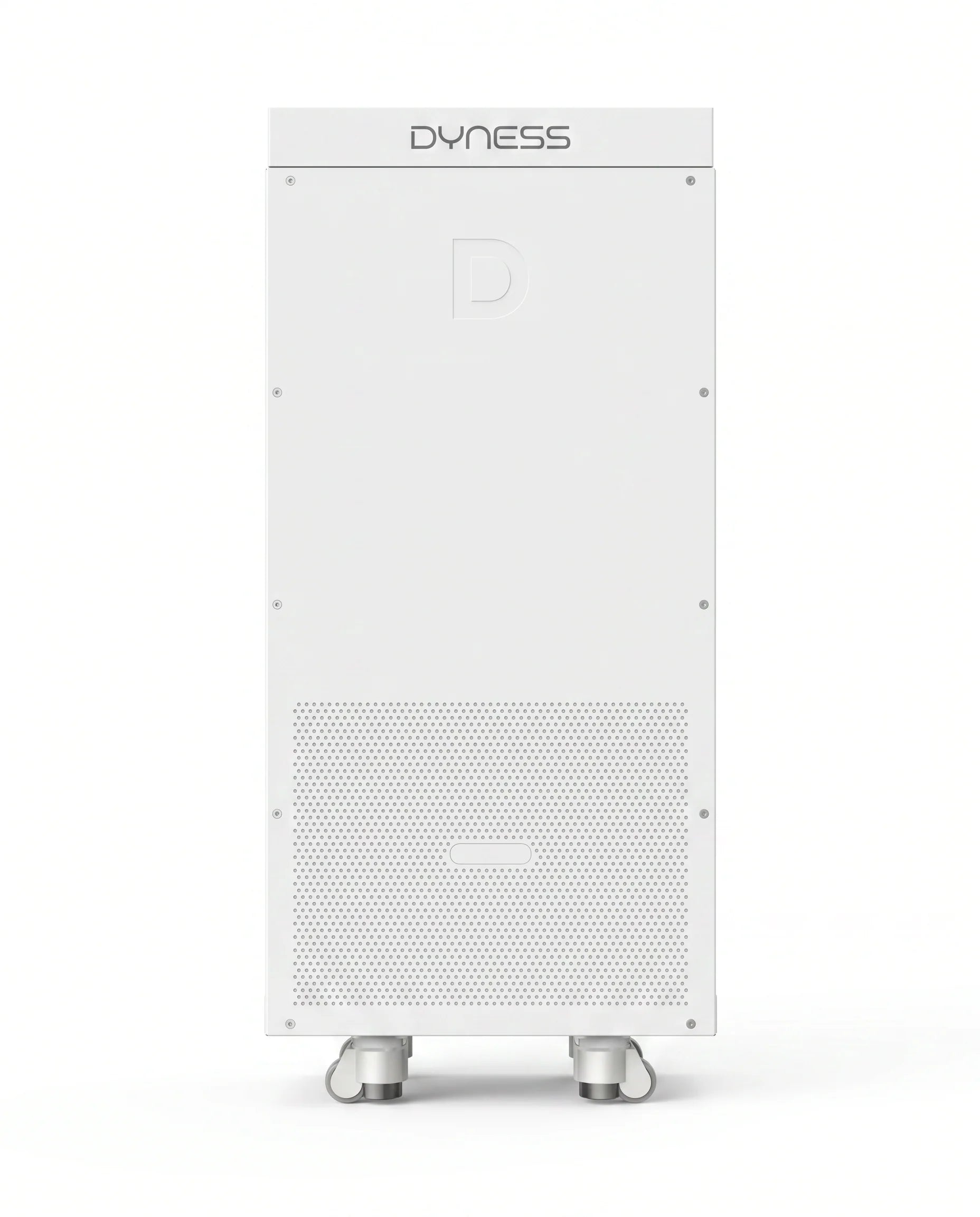

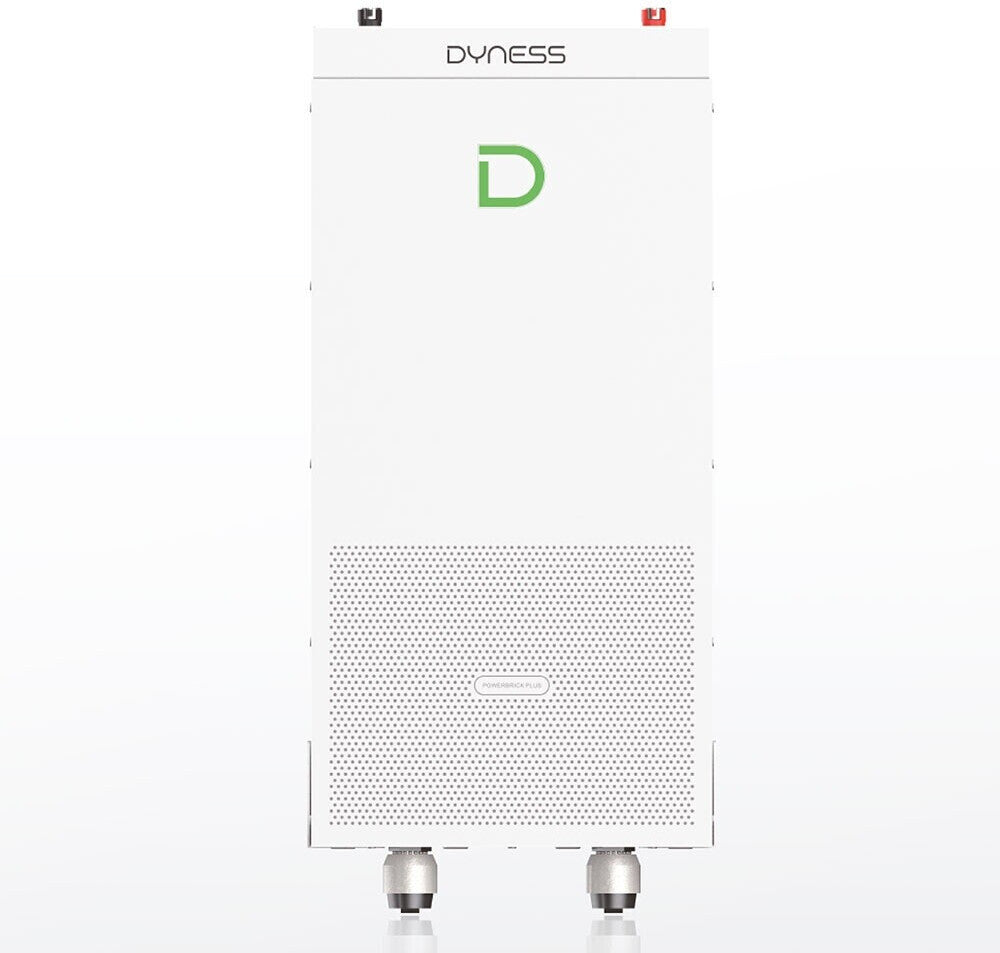

Dyness PowerBrick Plus 16.07 kWh Home Battery
Couldn't load pickup availability
The Dyness PowerBrick Plus 16.07 kWh is the direct successor to the Dyness PowerBrick 14.3 kWh and provides a scalable low-voltage solution for residential and light-commercial energy storage applications. With 15.27 kWh usable capacity, IP65 protection and support for the parallel connection of up to 50 units, the PowerBrick Plus offers a scalable energy storage solution for homes and light-commercial applications, expandable from a single battery to a nominal system capacity of 803 kWh. A popular Dyness home battery in the Rebor range, widely used by installers and private users.
Why do installers and homeowners choose the Dyness PowerBrick Plus?
- Available directly from stock
- Official Dyness distributor
- 10-year manufacturer's warranty
- Suitable for new and existing PV installations
- Expandable from 16.07 kWh to 803 kWh
- Integrated aerosol fire suppression system and active self-heating system
- Higher capacity, higher charge current, castors and top cover included compared with the PowerBrick 14.3 kWh
Compatible inverters
The PowerBrick Plus supports communication with compatible low-voltage inverters from manufacturers including Solis, Growatt, GoodWe, Victron Energy, SMA, SOFAR, LuxPower, Deye and SolaX Power via CAN or RS485, depending on the communication mode supported by the inverter. Always verify the current Dyness compatibility list and firmware version before installation.
Recommended Solis inverters for the Dyness PowerBrick Plus
The Dyness PowerBrick Plus is regularly combined with compatible Solis hybrid inverters at Rebor for complete energy storage systems. This combination is widely used by installers thanks to reliable CAN communication, high efficiency and straightforward configuration.
- ✓ Solis S6-EH1P-LV/PLUS series (single-phase)
- ✓ Solis S6-EH3P-NV-YD-L series (three-phase low-voltage)
- ✓ Solis S6-EH3P-LV series
View all compatible Solis hybrid inverters for Dyness PowerBrick Plus →
- 16.07 kWh LiFePO4 home battery: 15.27 kWh usable at 95% DOD — nominal voltage 51.2V, capacity 314Ah.
- High charge and discharge capacity: Maximum 200A continuous and 300A peak for 2 minutes, corresponding to a continuous output power of 10.24 kW.
- Exceptional lifespan: ≥ 8,000 charge cycles at 95% DOD including 10-year manufacturer's warranty.
- Integrated safety: Integrated aerosol fire suppression system and active self-heating system for charging down to −20°C.
- Maximum scalability: Parallel connection of up to 50 units in accordance with Dyness system guidelines — from 16.07 kWh to 803 kWh nominal system capacity.
For which situations is the Dyness PowerBrick Plus suitable?
- Homes with solar panels looking to maximise self-consumption
- Houses with a heat pump or electric vehicle with high daily energy consumption
- Installers looking for a scalable low-voltage system for residential and light-commercial projects
- Commercial applications with high self-consumption and expansion requirements
- Installations in technical rooms, garages or sheltered outdoor locations (IP65)
- Upgrade or replacement of existing PowerBrick installations, provided inverter compatibility and system configuration have been verified in advance
Dyness PowerBrick Plus 16.07 kWh — specifications and benefits
- Active self-heating system: Enables charging at ambient temperatures down to −20°C — no external heating solution required.

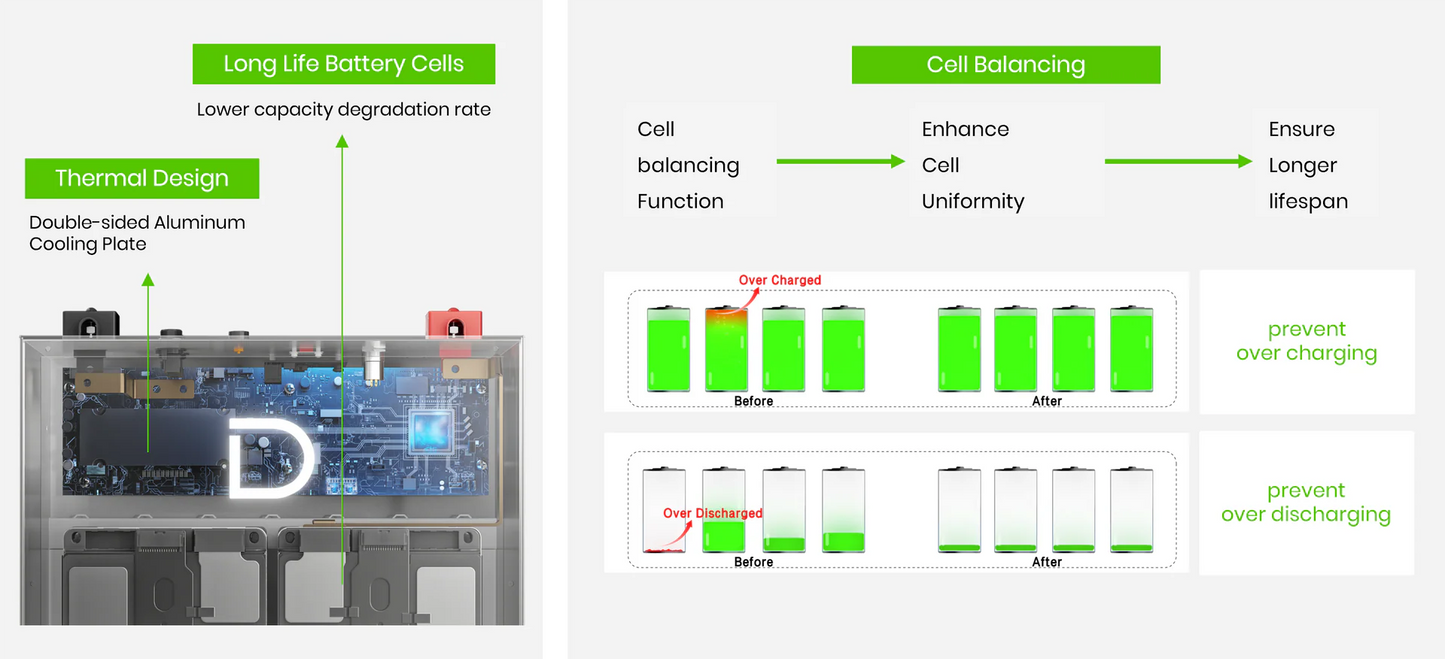

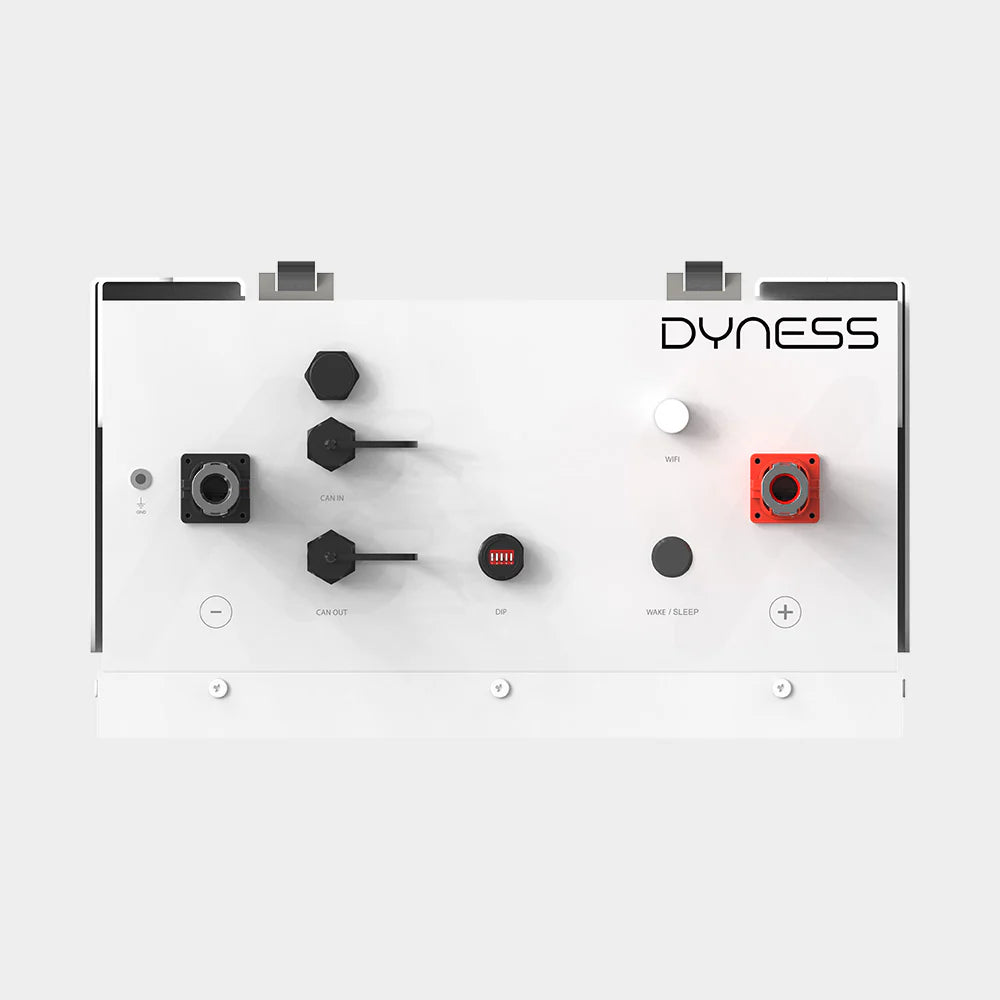

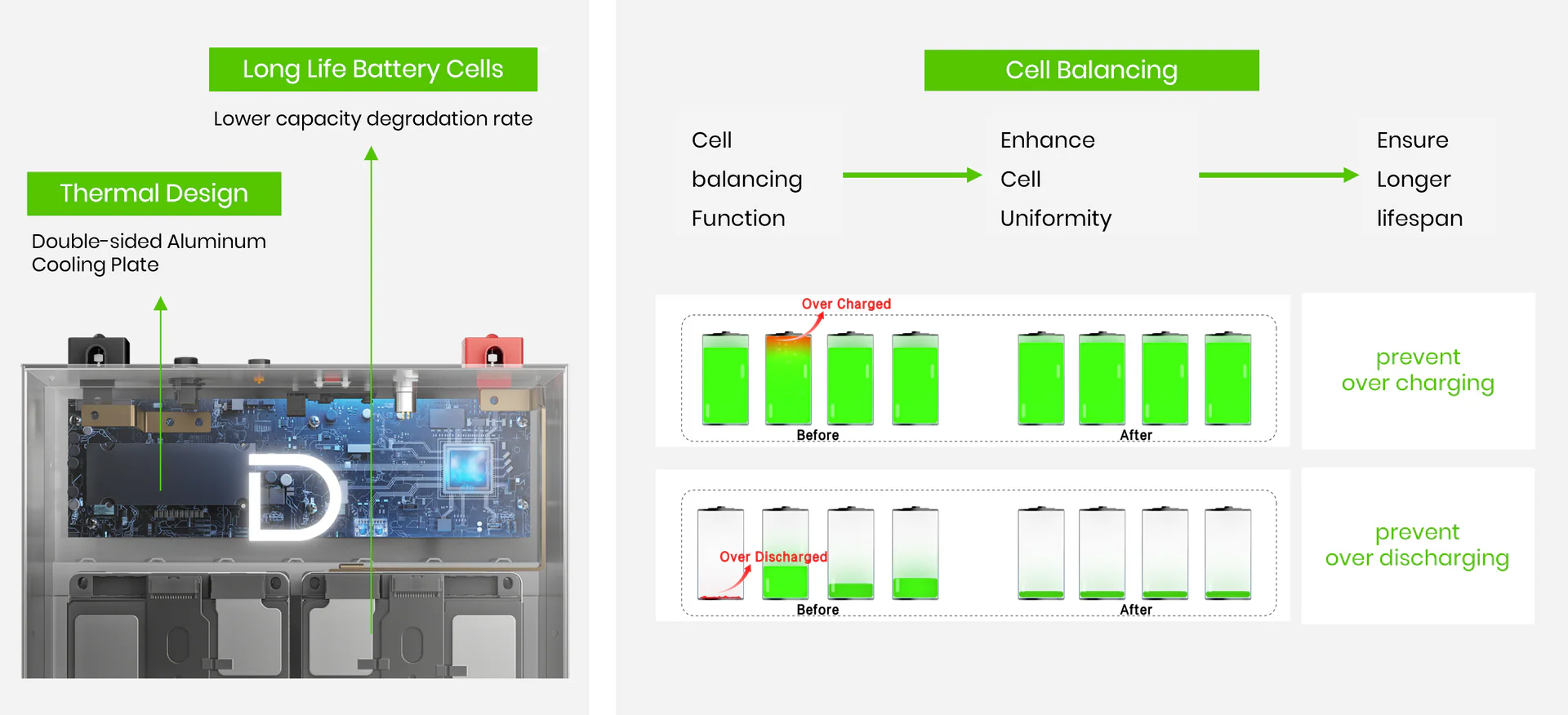

- Integrated BMS: Handles cell balancing, temperature protection and communication via CAN or RS485 with compatible low-voltage inverters.
- Castors included: Standard delivery includes castors (GD40S) for easy movement and positioning during installation.
- Parallel connection: Parallel connection of up to 50 units in accordance with Dyness system guidelines for maximum system flexibility.
Recommended combination with Solis hybrid inverters
| Component | Product | Application |
|---|---|---|
| Home battery | Dyness PowerBrick Plus 16.07 kWh | Energy storage — expandable to 803 kWh |
| Hybrid inverter (single-phase) | Solis S6-EH1P-LV/PLUS series | Homes — heat pump — EV |
| Hybrid inverter (three-phase) | Solis S6-EH3P-NV-YD-L series | Three-phase homes — dynamic energy tariff — expandable |
| Energy meter | Eastron SDM630MCT bundle | Zero-Feed-In control — export limitation |
PowerBrick 14.3 kWh vs PowerBrick Plus 16.07 kWh
| Property | PowerBrick 14.3 kWh | PowerBrick Plus 16.07 kWh |
|---|---|---|
| Nominal energy | 14.3 kWh | 16.07 kWh |
| Usable energy | 13.6 kWh | 15.27 kWh |
| Max. charge/discharge current | 150A | 200A |
| Aerosol fire suppression system | — | ✓ Integrated |
| Active self-heating system | — | ✓ Down to −20°C |
| Castors included | — | ✓ GD40S |
| Max. parallel connection | 16 units | 50 units |
| Max. system capacity | 228.8 kWh | 803 kWh |
| Warranty | 10 years | 10 years |
| Parameter | Value |
|---|---|
| Battery chemistry | LiFePO4 |
| Nominal energy | 16.07 kWh |
| Usable energy | 15.27 kWh |
| Recommended DOD | 95% |
| Nominal capacity | 314 Ah |
| Nominal voltage | 51.2V |
| Voltage range | 44.8V – 57.6V |
| Max. charge current | 200A |
| Max. discharge current | 200A |
| Peak discharge current | 300A (2 min) |
| Max. power | 10.24 kW |
| Lifespan | ≥ 8,000 cycles at 95% DOD |
| Protection rating | IP65 |
| Communication | CAN / RS485 |
| Max. parallel connection | 50 units |
| Weight | 119 kg |
| Dimensions (W × D × H) | 435 × 235 × 850 mm |
| Warranty | 10 years |
| Certification | UN38.3, IEC62619 |
What is included in the Dyness PowerBrick Plus package?
| Component | Specification | Quantity |
|---|---|---|
| Battery | 51.2V / 314Ah | 1 |
| Power cable positive | Red, 50 mm², L2050 mm | 1 |
| Power cable negative | Black, 50 mm², L2050 mm | 1 |
| Communication cable to inverter | Black, L2000 mm, dual RJ45 | 1 |
| Communication cable parallel | Black, L2000 mm, dual RJ45 | 1 |
| Earthing cable | L500 mm, 6 mm² | 1 |
| CAN resistor | 120 Ω | 1 |
| Screws | M6 × 14 | 3 |
| Expansion bolts | M6 × 80 | 6 |
| Positioning cardboard | — | 1 |
| Battery bracket | SGCC | 1 pair |
| Mounting bracket | SGCC | 2 |
| Castors | GD40S | 1 set (4 pieces) |
| Top cover | SGCC, 422 × 232 × 60 mm | 1 |
| User manual | — | 1 |
| Warranty card | — | 1 |
| Packing list | — | 1 |
Is the Dyness PowerBrick Plus compatible with my existing inverter?
That depends on the exact inverter model, firmware version and system configuration. Always verify the current Dyness compatibility list before installation. The PowerBrick Plus supports CAN and RS485 communication and works with a wide range of low-voltage inverters, including Solis, Growatt, GoodWe, Victron Energy, SMA, SOFAR, LuxPower, Deye and SolaX Power. For a full overview of compatible Solis inverter series, please refer to the next question.
Which Solis inverter series are compatible with the PowerBrick Plus?
For Solis systems, only a compatible low-voltage inverter or low-voltage battery charger must be used. For single-phase applications, the Solis S5-EH1P, S6-EH1P-LV/PLUS and S6-EA1P series may be suitable, depending on the exact model, firmware version and current Dyness compatibility list. For three-phase low-voltage systems, the Solis S6-EH3P-LV and S6-EH3P-NV-YD-L series may be suitable. Always verify the exact model and firmware version before installation. View all compatible Solis hybrid inverters in our range.
How many units can I connect in parallel and what is the maximum capacity?
The Dyness PowerBrick Plus supports parallel connection of up to 50 units for a total nominal storage capacity of 803 kWh. Each unit delivers 16.07 kWh nominal and 15.27 kWh usable. Parallel connection is made via RJ45 communication cables in accordance with Dyness system guidelines. Storage capacity can generally be expanded by adding additional battery modules, provided the inverter, firmware, cabling and system configuration support the expansion. Always verify the current Dyness system guidelines.
Why does the Dyness PowerBrick Plus become more attractive as solar export rates decline?
As solar feed-in tariffs continue to decline across Europe and time-of-use energy pricing becomes more widespread, storing self-generated solar energy locally is becoming increasingly financially relevant. The Dyness PowerBrick Plus enables you to use solar energy generated during the day in the evening and at night — reducing low-value grid exports and maximising self-consumption at the full retail electricity price. The actual financial benefit depends on your consumption profile, PV yield, energy contract and applicable feed-in tariffs. With a lifespan of ≥ 8,000 cycles and a 10-year warranty, the PowerBrick Plus is built for long-term returns.
Why do installers choose the Dyness PowerBrick Plus?
The PowerBrick Plus combines a high usable capacity of 15.27 kWh with a maximum charge and discharge current of 200A, broad inverter compatibility via CAN/RS485 and parallel connection of up to 50 units in accordance with Dyness system guidelines. The integrated aerosol fire suppression system, active self-heating system and castors (GD40S) simplify transport, positioning and installation. With a 10-year manufacturer's warranty and IP65 protection, this is a future-proof product for both residential and light-commercial projects.
Also suitable for installers
As an official Dyness distributor, Rebor supplies the PowerBrick Plus directly from stock. We support installers with technical advice, project configurations, volume discounts and fast delivery across Europe. Contact us for project pricing or advice on the right system configuration.
View all Dyness energy storage solutions in our Dyness home battery collection.
For a complete energy storage installation, combine the Dyness PowerBrick Plus with a compatible Solis hybrid inverter. View all Solis hybrid inverters suitable for low-voltage batteries.
