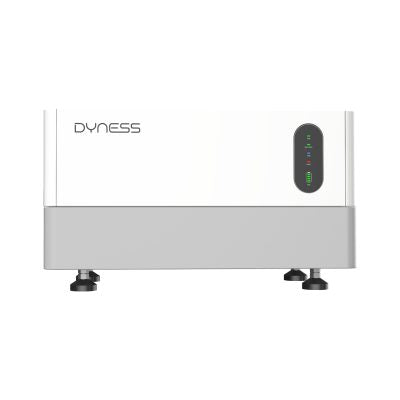

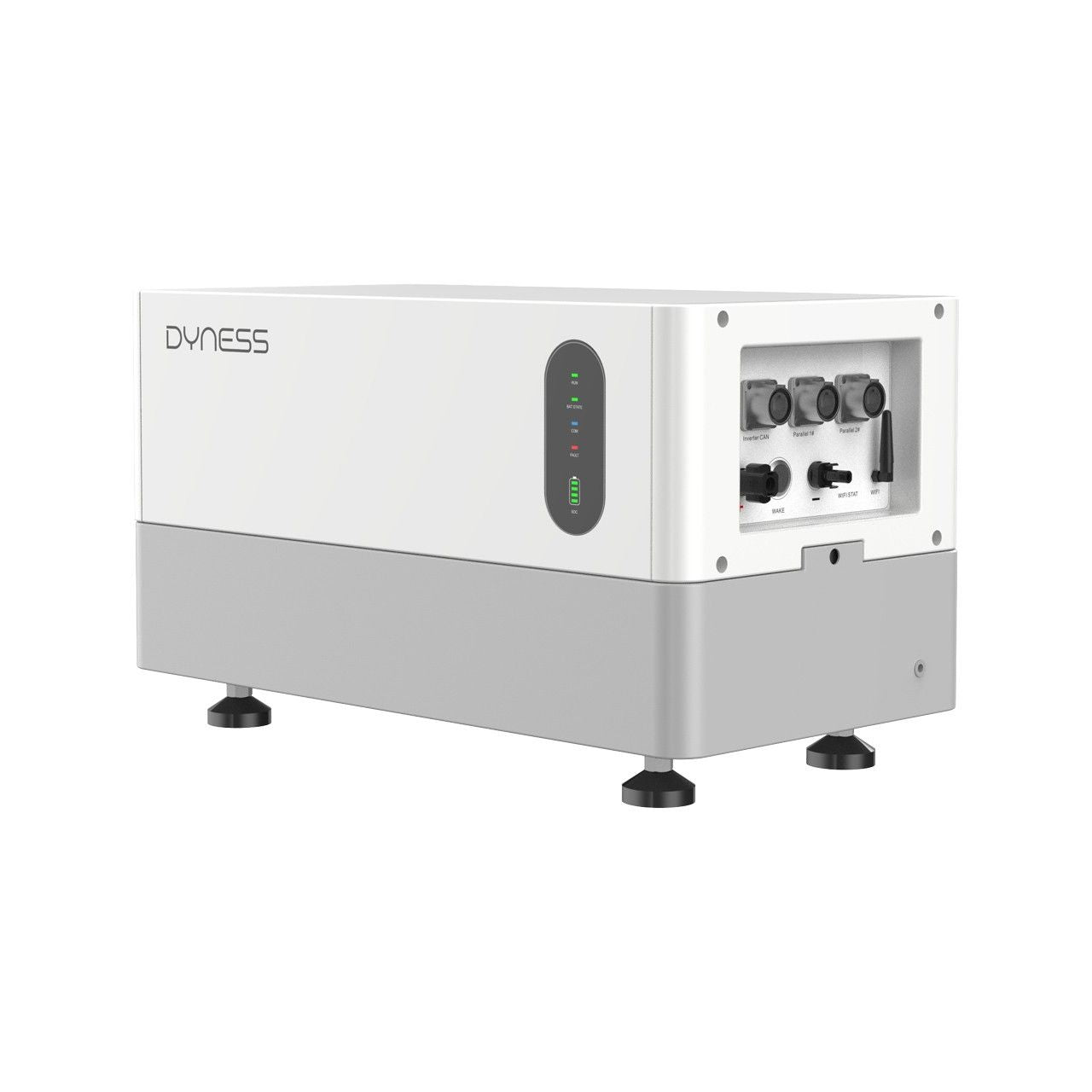

Dyness Tower Pro BDU & Base – Control Unit

€404,14 incl. VAT
Shipping calculated at checkout.

The Dyness Tower Pro BDU & Base (Battery Distribution Unit) is the indispensable brain of your high-voltage energy storage system. This unit manages the charging and discharging of the connected battery modules and ensures communication with your hybrid inverter. Supplied including the sturdy Base (pedestal), this forms the foundation for a stable and safe tower setup (TP7 to TP23).

  • Central control for 2 to 6 modules
  • Built-in fire extinguishing system (< 5s)
  • Includes stable floor plate (Base)
  • IP54 (Suitable for indoor & outdoor)

Intelligent control and safety

  • Advanced BMS: Continuously monitors status, temperature, and voltage of every cell to ensure optimal performance and safety.
  • Fire Safety: The BDU (Top Unit) contains an integrated aerosol system that activates immediately upon fire detection.
  • Connectivity: Equipped with communication ports (CAN/RS485) for seamless integration with inverters from GoodWe, Solis, and others.

Technical Specifications

  • Model: Tower Pro BDU + Base
  • Operating Voltage: 192V - 576V
  • Max. Current: 100A (1C discharge possible)
  • Dimensions BDU: 587 x 310 x 280 mm
  • Weight: approx. 27 kg (Set)
  • Protection Level: IP54
  • Certifications: CE, UN38.3, IEC62619
What is included in the package?

The BDU box is complete and contains: 1x BDU (Control Unit), 1x Base (Floor Plate), Installation manual, Warranty card, Communication cable (to inverter), Positive and Negative power cables (red/black), DC connectors, Grounding cable, and fixing screws.

How many modules can this unit control?

One BDU can control a tower of minimum 2 to maximum 6 HV9640 modules (7.68 kWh to 23.04 kWh).

Which inverters does this work with?

The BDU communicates with HV inverters from brands like GoodWe, Solis, SAJ, and Ingeteam. See the compatibility list for details.

Is the unit weather resistant?

Yes, the BDU has an IP54 rating, meaning it is protected against dust and splashing water from all directions.
