• JA Solar JAM72D40-600-LB
1 1

JA Solar JAM72D40-600/LB Traceable Bifacial Silver Glas-Glas

€127,05 incl. 21% VAT
Shipping calculated at checkout.
In Stock
Freight prepaid delivery (NL/BE) from €5,000 order value
Delivery within 3–7 business days (NL/BE)
Direct technical support
More than 20 years of hands-on experience in PV & energy storage
Net discount conditions for registered partners
Professional access
  • Generic
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Visa

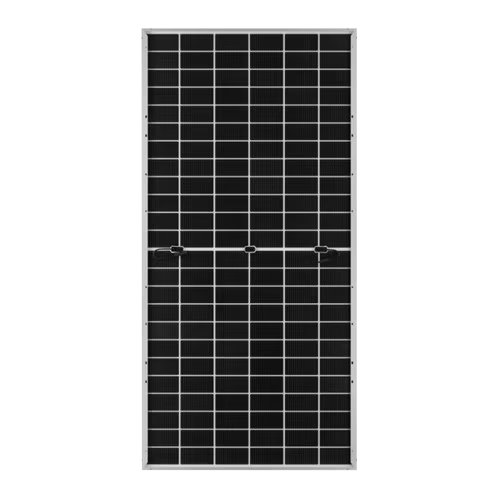

The JA Solar JAM72D40-600/LB is an ultra-high performance 600W Bifacial solar module featuring a classic Silver Frame. Part of the Deep Blue 4.0 Pro series, this panel combines cutting-edge N-Type TOPCon technology with a durable Dual Glass construction. With a power output of 600Wp and an efficiency of 23.2%, it is the superior choice for large-scale installations and flat roofs where maximum power density is paramount.

  • 600W Peak Power: Maximum energy generation thanks to the larger 72-cell format (2278mm).
  • Silver Frame: Industrial aesthetic with excellent thermal properties, perfect for commercial rooftops.
  • N-Type Bifacial: Up to 25% extra yield from the rear side and minimal degradation.
  • 30-Year Warranty: Industry-leading linear power warranty (87.4% at year 30).

Extreme Power with 600W Deep Blue 4.0 (JA Solar)

The JAM72D40-LB series utilizes the latest generation 16-busbar (16BB) N-Type cells. This results in ultra-low annual degradation (only 0.4%) and exceptional low-light performance. Being Bifacial, it captures light reflected from the roof surface (albedo), converting it into additional green energy. The dual glass design ensures maximum fire safety and resistance to harsh weather conditions. Pair this module with a commercial inverter from Solis or GoodWe for optimized performance.

Note: This is an XL-sized module (2278 x 1134 mm) weighing approx. 32kg. Ensure a suitable mounting structure and installation with at least two people. Verify your inverter can handle the high current (Imp ~13.72A).
Feature Value
Brand & Model JA Solar JAM72D40-600/LB
Power Output 600 Watts (Wp)
Technology N-Type Bifacial Dual Glass (Silver Frame)
Efficiency 23.2%
Dimensions 2333 x 1134 x 30 mm
Weight ~32.5 kg
Warranty 12 Years Product & 30 Years Power
Max Load 5400Pa (Front) / 2400Pa (Rear)
Connectors MC4-EVO2A
Download Datasheet Download Manual
What are the electrical specifications (STC)?

At Standard Test Conditions (1000W/m², 25°C), the 600W model provides:

  • Max Power (Pmax): 600W
  • Open Circuit Voltage (Voc): 52.40V
  • Short Circuit Current (Isc): 15.64A
  • Voltage at Pmax (Vmpp): 43.76V
  • Current at Pmax (Impp): 13.72A
Why choose a Silver Frame?

Silver frames reflect sunlight better than black frames, resulting in slightly lower operating temperatures and potentially higher efficiency. They are the standard choice for commercial projects, flat roofs, or ground mounts where aesthetics are less critical than pure performance.

Is this panel suitable for all roofs?

Due to its dimensions (2278 mm long) and surface area (>2.5m²), this panel is primarily suitable for flat roofs, ground mounts, and commercial projects. For pitched residential roofs, we often recommend the smaller 54-cell models (JAM54D) for easier handling and layout.

View more products in our JA Solar Collection.

Activate your installer account

Verify your company within 12 hours and gain immediate access to professional net pricing, engineering support and live EU inventory.

Register Access Partner Portal
Fast-Track Authorization: Manual business verification and activation within 12 hours.
Professional Net Pricing: Direct purchasing rates for Aiko, Jinko, BYD, Solis and more.
Technical Authority: Senior engineering support with 20+ years of PV and storage expertise.
View full details
JA Solar JAM72D40-600/LB Traceable Bifacial Silver Glas-Glas – General installation or product video
