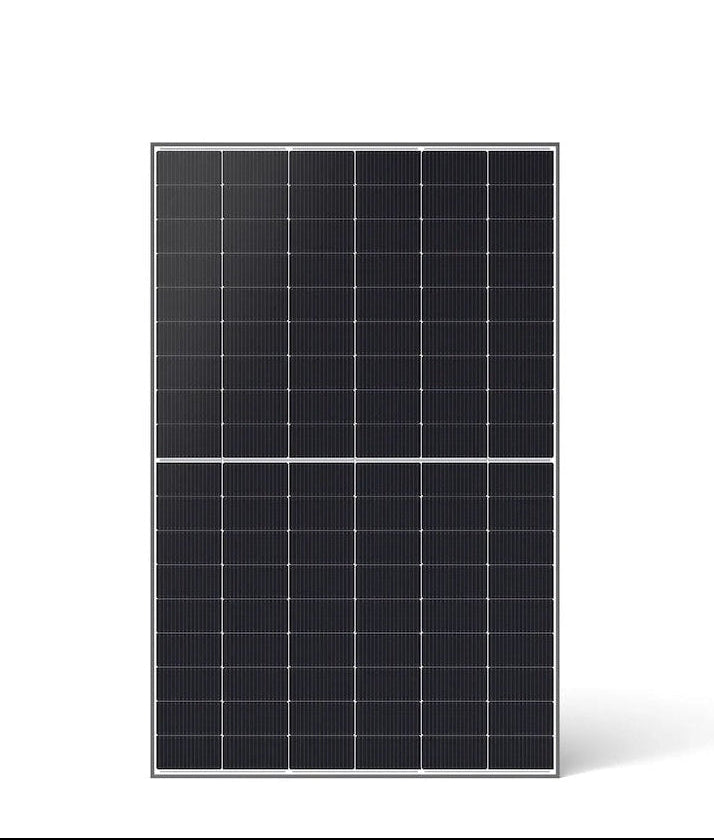

JA Solar JAM54D40 470/LR Traceable Dual Glass Mono-facial Black Frame
Couldn't load pickup availability
The JA Solar JAM54D40 470/LR is an n-type monofacial double glass module designed for high-end PV systems. With an output of 470W and an efficiency of 23.5%, this panel delivers maximum yield. The integrated Bycium+ cells and 16BB technology ensure minimal degradation and an optimal temperature coefficient for long-lasting residential and commercial performance.
- 470W Pmax: Highest power class within the JAM54D40 series for maximum system yield per module.
- 23.5% Efficiency: Optimised cell conversion for higher energy yield on limited roof areas.

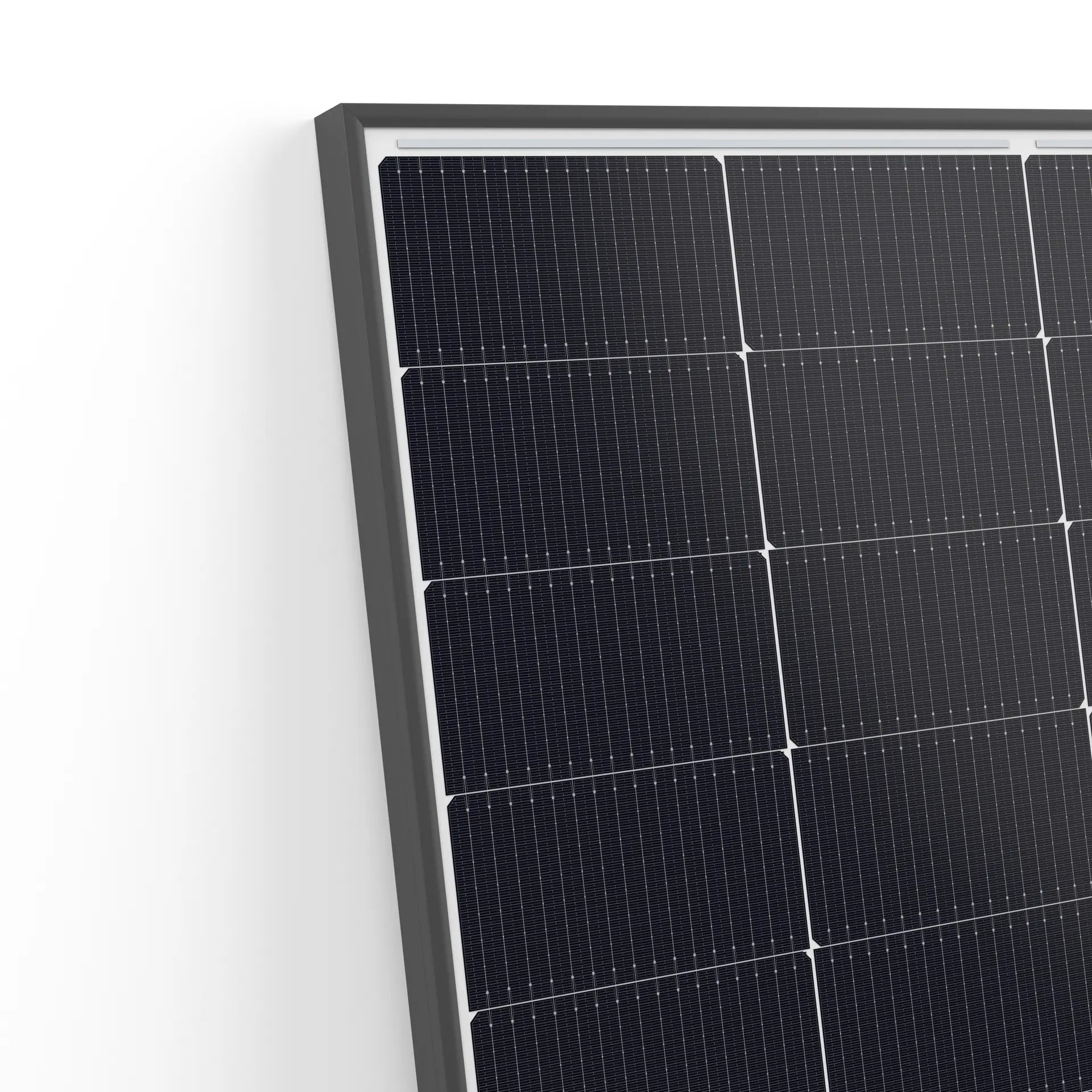

- Dual Glass Construction: 1.6 mm / 1.6 mm glass layers for improved mechanical resistance and fire safety.
- Long Cables: Includes 1200 mm (+) / 1200 mm (-) cables with MC4-EVO2 connectors.
Why choose the JAM54D40 470/LR?
The JAM54D40 470/LR uses advanced n-type technology to virtually eliminate LID. With annual degradation of 0.4% over 30 years, this panel offers a superior LCOE. Its robust mechanical load rating of 5400Pa on the front makes the panel resistant to extreme weather conditions. Thanks to its traceable supply chain, it is a safe choice for projects that comply with international standards. View more options in the JA Solar solar panels collection.
| Property | Value |
|---|---|
| Brand & Model | JA Solar JAM54D40-470/LR |
| Capacity / Power | 470W |
| Module efficiency | 23.5% |
| Voc / Isc | 40.40V / 14.66A |
| Vmpp / Impp | 33.84V / 13.89A |
| Dimensions | 1762 ± 2 mm × 1134 ± 2 mm × 30 ± 1 mm |
| Weight | 22kg |
| Warranty | 25-year product / 30-year linear power |
What is included in the box with the JAM54D40 470/LR?
| Component | Description |
|---|---|
| Solar panel | 1 x JA Solar JAM54D40-470/LR module |

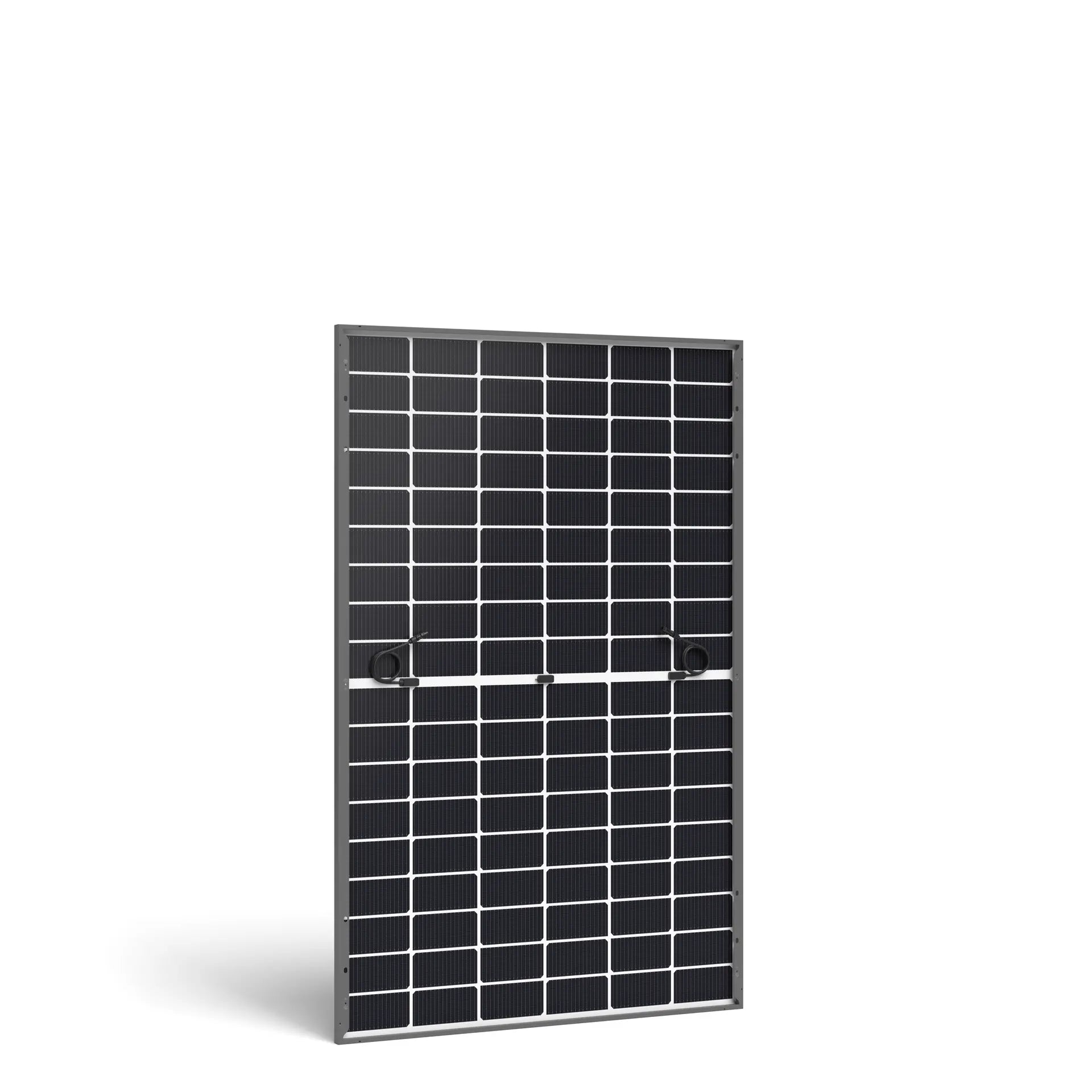

| Junction box | 1 x Integrated IP68 junction box |
| Connector (+) | 1 x MC4-EVO2 connector with 1200 mm cable |
| Connector (-) | 1 x MC4-EVO2 connector with 1200 mm cable |
Is this panel compatible with my system?
This panel is compatible with PV systems that support a maximum voltage of 1500V DC. The MC4-EVO2 connectors are the industry standard for safe integration with modern inverters.
How do I optimise self-consumption?
The high efficiency in low irradiance makes this panel ideal for maximising direct self-consumption, even on cloudy days or in the early morning.
View more products in our JA Solar solar panels collection.
